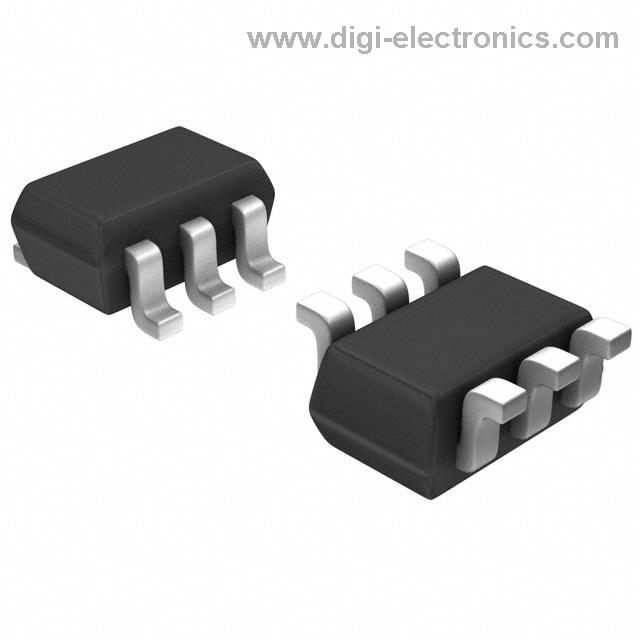

SAT36A05L05
YAGEO
TVS ESD, SOT-363, 5V, 9.8V, REEL
18434 Pcs New Original In Stock
9.8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-363
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (168 Ratings)
SAT36A05L05
Product Overview
10419494
DiGi Electronics Part Number
SAT36A05L05-DGManufacturer
YAGEO
SAT36A05L05
Description
TVS ESD, SOT-363, 5V, 9.8V, REELInventory
18434 Pcs New Original In Stock
9.8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-363
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SAT36A05L05 Technical Specifications
Category
Transient Voltage Suppressors (TVS), TVS Diodes
Packaging
Cut Tape (CT) & Digi-Reel®
Series
SAT36A05L05
Product Status
Active
Type
Zener
Unidirectional Channels
5
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
9.8V
Current - Peak Pulse (10/1000µs)
1A (8/20µs)
Power - Peak Pulse
100W
Power Line Protection
No
Applications
General Purpose
Capacitance @ Frequency
50pF @ 1MHz (Max)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
6-VSSOP, SC-88, SOT-363
Supplier Device Package
SOT-363
Datasheet & Documents
HTML Datasheet
SAT36A05L05-DG
Environmental & Export Classification
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Information
Other Names
13-SAT36A05L05CT
13-SAT36A05L05TR
13-SAT36A05L05DKR
Standard Package
3,000
Reviews
5.0/5.0-(Show up to 5 Ratings)
Dec 02, 2025
구매하는 동안 제품의 가격과 품질 모두 만족스러웠어요. 추천드립니다.
Dec 02, 2025
售後服務積極熱情，幫助我解決所有疑問，讓我非常滿意。
Dec 02, 2025
Their shipping logistics are impressive; items arrive swiftly and in perfect condition.
Dec 02, 2025
Their prompt responses and professional support make working with them a true pleasure.
Dec 02, 2025
Delivery was faster than I expected, and the packaging was secure, preventing any damage during transit.
Dec 02, 2025
Every purchase is met with surprisingly fast delivery times, which I greatly appreciate.
Dec 02, 2025
Overall, I am extremely satisfied with the excellent quality of their offerings.
Dec 02, 2025
Their commitment to quality at a reasonable price truly stands out.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key features of the yageo SAT36A05L05 TVS diode?
The SAT36A05L05 is a unidirectional TVS diode designed for transient voltage suppression, with a maximum clamping voltage of 9.8V, working at 5V reverse standoff voltage, and capable of handling peak pulse currents of 1A. It offers high reliability with a power peak pulse of 100W and operates over a temperature range of -55°C to 150°C.
What are the typical applications of the SAT36A05L05 TVS diode?
This TVS diode is suitable for general purpose ESD and transient voltage suppression in electronic devices, offering effective protection for sensitive components against voltage spikes without line protection. Its surface mount SOT-363 package makes it ideal for space-constrained electronic circuits.
Is the SAT36A05L05 compatible with my electronic project?
Yes, the SAT36A05L05 is a surface mount SOT-363 package compatible with various electronic devices requiring transient voltage suppression, especially in applications where space and reliability are critical. Ensure your circuit operates within the specified voltage and temperature ranges.
What are the advantages of using the SAT36A05L05 TVS diode?
The SAT36A05L05 provides reliable transient suppression with rapid response times, high peak pulse current capacity, and excellent thermal stability. Its unidirectional design ensures effective clamping of voltage spikes, protecting your electronic components efficiently.
How can I purchase and what is the warranty for the SAT36A05L05 TVS diode?
The SAT36A05L05 is available in tape and reel packaging for easy automated assembly, with a stock of over 37,000 units. For warranty and after-sales support, please contact the supplier directly to ensure product authenticity and optimal technical support.
