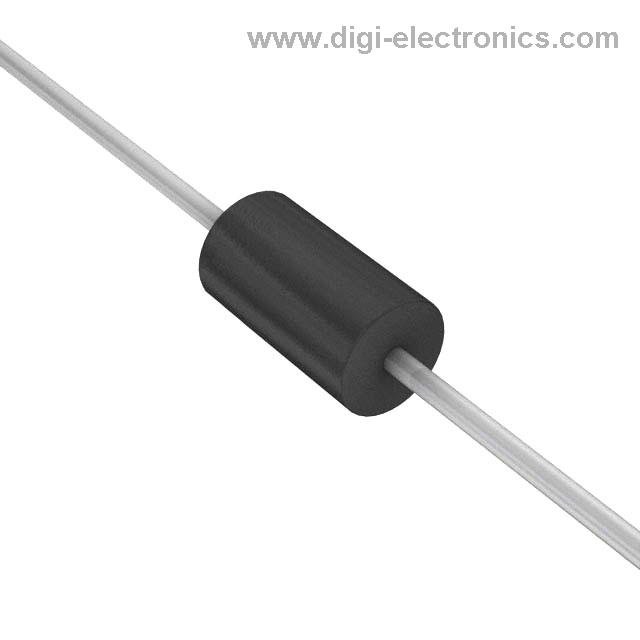

Product Overview of Vishay General Semiconductor 1.5KE18CA-E3/73 TVS Diode
The Vishay General Semiconductor 1.5KE18CA-E3/73 TVS diode represents a foundational component in transient voltage protection strategies. Engineered within the 1.5KE series framework, this device leverages silicon avalanche technology to provide fast response times and reliable energy absorption. Its bidirectional architecture enables symmetric protection, making it proficient in handling both positive and negative surge events—a key attribute for circuits that experience AC or reversible signal excursions.
Fundamentally, the 1.5KE18CA-E3/73 operates by transitioning from a high-impedance to a low-impedance state within nanoseconds when subjected to overvoltage, thereby shunting excess current away from vulnerable nodes. The clamping voltage is precisely regulated, with a maximum of 25.2 V, which aligns with requirements for protecting downstream devices that have strict absolute maximum ratings. For example, CMOS logic and microcontrollers, commonly at risk during ESD events or nearby lightning activity, benefit from this rapid energy diversion, minimizing chances of functional disruption or catastrophic failure.
The diode’s package design (DO-201AE) facilitates effective heat dissipation, a non-trivial consideration when dealing with repetitive transients in industrial or automotive environments. Additionally, compliance with industry quality standards and the preclusion of lead (RoHS-compliant) enables smooth integration into modern, sustainability-focused assemblies. The compatibility with both through-hole and automated insertion processes optimizes manufacturing flexibility for large-scale projects.
Practical deployment shows that correct selection of standoff voltage and clamping attributes is crucial for tuning system-level robustness. When used on signal lines exposed to high-noise sources, placing the TVS diode directly at circuit entry points has consistently resulted in extended equipment lifespans and reduced field failures. Similarly, integrating the 1.5KE18CA-E3/73 across relay contacts in industrial controllers or as input protection in automotive ECUs ensures operational integrity without introducing significant leakage or signal distortion under normal voltage conditions.
One subtle, often overlooked aspect is coordination with upstream protection elements—such as fuses or MOVs—to create a layered defense against overvoltage phenomena. The TVS diode’s ability to absorb the initial energy spike, while allowing follow-on protection elements to handle the excess, underscores its role as an agile and low-latency shield within multi-stage architectures.
From an engineering perspective, the device’s combination of speed, clamping precision, and endurance underpins a range of successful applications. These characteristics are especially important in densely integrated boards where a single failure can cascade across subsystems. This emphasizes the necessity for careful placement, thermal management, and regular characterization of installed protection, ensuring that system reliability aligns with increasingly demanding operating environments. The 1.5KE18CA-E3/73 thus exemplifies a well-balanced TVS solution for modern electronic and electromechanical architectures.
Key Features and Benefits of 1.5KE18CA-E3/73
The 1.5KE18CA-E3/73 TVS diode integrates advanced material science and protective circuit engineering to provide robust transient suppression across a range of demanding electronic environments. Central to its architecture is the glass-passivated junction, which stabilizes device characteristics by minimizing leakage currents and junction parameter drift even under thermally stressful and repetitive surge conditions. This feature becomes indispensable in complex systems where repetitive transients can progressively deteriorate classical silicon p-n junctions, ensuring predictable clamp behavior throughout the product's lifespan.
A defining attribute is its handling of high-energy events: the device sustains a 1,500 W peak pulse on a standard 10/1000 μs waveform, a benchmark directly correlating to resilience against lightning-induced surges or switching transients in industrial and automotive applications. Such performance margins permit system designers to standardize protection across diverse power rail and I/O architectures, reducing the need for heavy overdesign or cascade arrangements.
At the core of transient mitigation lies the diode’s sub-nanosecond response—on the order of 1 ns—which ensures voltage spikes are arrested prior to reaching thresholds that endanger analog front ends or digital ASICs/FPGAs. In detail, this speed is achieved by carefully engineered semiconductor layer structures and minimal intrinsic capacitance, a critical factor when PCB routing and parasitic inductances are unavoidable. In application, this characteristic translates to tangible reductions in field failures attributed to ESD or EFT, bolstering long-term system reliability in consumer, industrial, and vehicular subsystems.
Examining electrical performance, the low incremental surge resistance materially lowers clamping voltages during overvoltage stress. This improves protection effectiveness, as energy is not wasted across elevated impedance; instead, voltage is confined within tighter tolerances, thereby extending downstream device operating margins. This characteristic is especially valued when interfacing with mixed-signal subsystems, where noise or overvoltage must be tightly regulated without sacrificing data integrity.
The bidirectional architecture, designated by the “CA” suffix, materially simplifies the design of universal or AC-interfaced systems. One component shields both polarities of transient incursion, reducing component count, BOM complexity, and insertion loss in balanced or differential signal pathways. Field experience shows this approach streamlines cross-geography product deployments, where grid characteristics or EMC phenomena may not be consistent.
From a compliance and deployment perspective, the TVS diode's RoHS3 material declaration and AEC-Q101 qualification represent critical gatekeepers for eco-friendly product launches and automotive Tier 1 sourcing, respectively. Practical value emerges through immediate acceptance in global supply chains and fast design-in processes without the need for extended qualification campaigns that would otherwise delay timetables.
Mechanically, the molded epoxy encapsulation with UL 94 V-0 flammability rating introduces a layer of physical and environmental robustness. This detail is non-trivial in high-temperature, vibration-prone, or contaminant-exposed deployments such as vehicle engine bays or industrial switchgear. In practice, this consistent encapsulation quality ensures steady performance after numerous reflow cycles and exposure to aggressive conformal coatings.
In multidomain, high-uptime designs—ranging from electric vehicle control modules to industrial PLC I/O interfaces—this component enables a disciplined approach to transient immunity, allowing simultaneous improvements in reliability metrics and manufacturability. The intersection of electrical response, mechanical robustness, and compliance readiness distinguishes the 1.5KE18CA-E3/73 as a strategic asset for engineers tasked with balancing protective efficacy, system complexity, and certification velocity. Integrating such devices into protection schemes not only prevents latent and catastrophic failures, but subtly transforms transient suppression from a compliance checkbox to an enabler of advanced system functionality.
Electrical Characteristics and Performance Parameters of 1.5KE18CA-E3/73
Delving into the electrical characteristics of the 1.5KE18CA-E3/73 TVS diode reveals its suitability for transient voltage suppression in robust circuit environments. The reverse standoff voltage of 15.3 V sets the threshold below which normal operation is expected, acting as a reference that ensures negligible conduction under standard system voltages. Precision in this value is critical; it provides a margin between nominal line voltages and the initiation of protective action, thereby minimizing the risk of unwanted triggering while maintaining fast response to abnormal events.
The breakdown voltage range, specified between 17.1 V and 18.9 V at a 1 mA test current, underscores the device's predictability in clamping action activation. The controlled transition zone offers engineers flexibility during system-level voltage margining. This range guarantees that the device remains inactive under overvoltage conditions not surpassing the standoff threshold, yet responds promptly when exposed to voltage excursions exceeding the breakdown minimum. Experience with similar TVS elements confirms that high consistency in breakdown voltage translates to minimal variation across manufactured batches, a factor that streamlines qualification and reduces time for incoming inspection.
The clamping voltage ceiling at 25.2 V for a peak pulse current of 59.5 A directly defines surge handling capacity. In practical transient scenarios, such as inductive load switching or nearby lightning strikes, this parameter ensures vulnerable components downstream are not subject to voltage levels exceeding their absolute maximum ratings. The pulse power capability of 1,500 W further reinforces the diode's resilience under high-energy disturbances. Integration into power supply and communication interfaces has demonstrated that this power rating accommodates repetitive surge conditions without degradation, optimizing protection reliability in mission-critical installations.
Optimized capacitance values position the 1.5KE18CA-E3/73 for both signal integrity and power rail safeguarding. Low parasitic capacitance is particularly essential where data transmission rates or analog sensitivity are priorities. Engineering practice indicates that deploying this device on high-speed lines does not introduce noticeable signal distortion, thereby protecting interfaces while preserving throughput and fidelity. This balance is especially relevant in mixed-signal architectures that must limit loading on sensitive trace paths.
The diode's maximum leakage current of 1 μA at the standoff voltage contributes to system efficiency and longevity, minimizing unnecessary drain in standby or low-power modes. Protective elements with higher leakage often complicate power budget calculations, leading to cumulative losses in dense arrays. By restricting leakage, the 1.5KE18CA-E3/73 supports energy-conscious design while extending operational lifespans in edge devices.
In practical deployment, consideration of mounting, thermal paths, and PCB layout further refines surge protection performance. Proper heat sinking and trace width selection can enhance pulse absorption and reduce clamping overshoot. A core insight comes from observing field reliability: TVS diodes with stable electrical parameters and narrow tolerance ranges, such as the 1.5KE18CA-E3/73, display superior survival rates under repeated surge patterns, making them a preferred choice when system resilience and long-term stability are prioritized. Optimal integration involves balancing electrical characteristics against application-specific limit thresholds, ensuring that suppression action is both timely and reliably governed regardless of environmental or operational variance.
Thermal Management and Package Specifications for 1.5KE18CA-E3/73
Effective thermal management and precise package specification are pivotal factors in the integration and performance optimization of surge protection devices such as the 1.5KE18CA-E3/73. The interplay between thermal resistance parameters and physical construction directly influences both the electrical endurance and assembly adaptability of such components within complex circuits.
Thermal resistance metrics reveal the device’s capacity to dissipate heat. Junction-to-ambient resistance (RθJA) at 75 °C/W illustrates the device’s thermal gradient, governing the rate at which excess heat moves from the silicon junction into its surrounding environment. A lower RθJA typically enables higher continuous power handling, minimizing hotspots under prolonged surge events common in industrial and automotive applications. Junction-to-lead resistance (RθJL) at 15.4 °C/W underscores the efficiency of heat transfer from the die to the leads. This parameter becomes critical when leveraging PCB-mounted copper traces or external heatsinks for improved dissipation. Experience shows that even minor enhancements in lead soldering quality or trace width can directly impact sustained thermal equilibrium during overload events.
Maximum power dissipation (PD) reaches 6.5 W on an infinite heatsink at 75 °C. Practically, most systems do not operate with infinite heat removal, therefore actual PD must be calculated under typical installation constraints. The use of derating curves becomes mandatory to determine safe operational limits as ambient temperature rises. Derating ensures the device remains within its thermal envelope, especially when exposed to transient surges or continuous operation in elevated temperature zones. The importance of matching PD to real-world heat removal methods—such as forced airflow, robust heatsink selection, or thermally conductive PCB layouts—cannot be overstated for maintaining design reliability.
The DO-201AA/DO-27 package with axial leads offers significant advantages for through-hole mounting techniques. Such packages are favored in environments where mechanical robustness and ease of replacement are prioritized. The axial configuration enables straightforward board layout and improved heat conduction, leveraging symmetrical lead design for uniform thermal distribution. Physical durability is complemented by a molded epoxy body and a passivated silicon junction; these features provide high resistance to environmental stresses. Matte tin plated leads, compliant with industry solderability standards, assure consistent electrical and mechanical contact over repeated thermal cycles, effectively reducing the risk of solder joint fatigue.
Temperature ranges spanning -55 °C to +175 °C cater to scenarios involving both extreme cold and heat, aligning with automotive and industrial sector demands. Selection of materials and precise junction processing account for high reliability in extended temperature excursions, crucial when devices are required to perform during peak current loads in unforgiving conditions.
In application contexts, balancing peak current handling with thermal derating forms the core of system-level reliability. Overlooking these parameters often leads to premature device failure, especially when multiple surge events occur in quick succession. Layering thermal considerations—ranging from package design through lead configuration, up to environmental variables—creates a blueprint for robust surge protection implementation. Emphasizing the integration of thermal metrics within early stage design calculations enhances end-product longevity and operational safety, underscoring the necessity for deliberate, data-driven engineering judgment.
Application Scenarios for Vishay 1.5KE18CA-E3/73 TVS Diode
Application scenarios for the Vishay 1.5KE18CA-E3/73 TVS diode encompass diverse electronic systems requiring robust transient voltage suppression. At the core, this device leverages silicon avalanche technology to absorb and dissipate sudden voltage surges, safeguarding sensitive components such as integrated circuits, MOSFETs, and both analog and digital subsystems. Its bidirectional, clamping capability ensures symmetrical protection, which is crucial in environments where polarity reversals or alternating signals occur.
In industrial control systems, the diode mitigates risks associated with inductive load switching and exposure to remotely induced lightning transients. Deployment along power lines or signal cables directly reduces downtime caused by overvoltage events. Installation close to microcontroller inputs or PLC communication ports effectively prevents catastrophic failures and preserves long-term system stability. The device’s sub-microsecond response addresses scenarios where voltage spikes propagate faster than typical circuit breakers or fuses can react.
Within telecommunication infrastructure, the 1.5KE18CA-E3/73 excels in protecting transceiver units, sensor modules, and interface circuitry exposed to unpredictable electrical environments. Voltage fluctuations originating from external sources—such as line cross-ups, electrostatic discharge (ESD), or surges from adjacent equipment—often result in hard-to-diagnose performance degradation. Integrating the TVS diode maintains signal integrity and prevents memory corruption, ensuring continuity in data transmission and processing.
The device’s scalability is another defining attribute. Series or parallel array configurations expand surge-handling capacity, facilitating modular protection strategies tailored to varying threat levels across interconnected subsystems. In consumer electronics and automotive platforms, this flexibility proves essential for distributed protection, covering multiple entry points where transients may infiltrate. The inherent ruggedness and fast clamping speed support deployments in harsh environments—dashboard subsystems, infotainment circuits, and battery management modules, for instance—where reliability standards are uncompromising.
Practical integration demonstrates that placement strategy critically influences surge mitigation effectiveness. Proximity to vulnerable nodes and minimizing trace lengths optimize energy absorption and reduce residual voltages. Component engineers benefit from its broad operational window, which aligns well with industry-standard thresholds for both low- and high-voltage domains. In design validation phases, transient stress tests confirm that the diode’s performance exceeds regulatory requirements, streamlining compliance efforts and minimizing secondary design iterations.
A unique strength emerges in systems with dual-supply rails or frequent switching, where symmetric protection is compulsory. As networks become more interconnected and signal paths extend, layered TVS arrays based on the 1.5KE18CA-E3/73 allow scalable, multi-level defense without excessive footprint or thermal penalty. Direct experience with integrated protection schemes highlights the importance of matching diode placement to likely attack vectors—such as input connectors, interface ports, and high-density bus lines—to balance cost-efficiency with operational security.
Ultimately, the 1.5KE18CA-E3/73 TVS diode embodies a specialized resilience against transient threats, presenting a versatile and scalable solution set for engineers designing next-generation electronic systems where reliability, response speed, and architectural flexibility are priorities.
Qualification, Compliance, and Environmental Considerations for 1.5KE18CA-E3/73
Qualification, compliance, and environmental performance form the backbone of component selection for mission-critical deployments, especially in tightly regulated domains. The 1.5KE18CA-E3/73 offers a robust profile, beginning with RoHS3 compliance that ensures zero lead content and aligns with stringent global directives for hazardous substances. Such conformance not only supports long-term environmental stewardship but also simplifies integration into designs requiring eco-certification without risking regulatory delays during audits or product launches.
Automotive-grade reliability is addressed through AEC-Q101 qualification. This standardized stress testing protocol investigates mechanical and electrical endurance under extreme conditions typical in automotive electronics, such as temperature cycling, high humidity, and electrical overload. Components meeting this qualification have demonstrated minimized failure rates over extended operational lifetimes, supporting fail-safe protection in data lines, sensors, and control modules. This enhances confidence in applications where replacement costs or downtime are prohibitive.
In the context of safety, the UL 94 V-0 flammability rating represents more than a compliance checkbox; it underpins installation in safety-critical systems where rapid flame self-extinguishing is mandatory. For system architects, this factor enables tighter enclosure design and multi-layered assemblies in confined environments, such as inside battery management systems or compact actuator subsystems, without compromising fire mitigation protocols.
Regarding logistics and production, a Moisture Sensitivity Level (MSL) of 1 means that these devices withstand unlimited exposure to ambient conditions during board population and storage. This enables greater flexibility in surface-mount operations, reduces waste due to component degradation, and streamlines inventory management in high-throughput production settings.
Reliability in the field is further supported by compliance with the JESD 201 whisker test criteria. Tin whisker growth can result in shorts or latent reliability failures, particularly in fine-pitch packages or high-voltage rails. The 1.5KE18CA-E3/73, by meeting this requirement, mitigates risk in dense board layouts and extended-life applications such as industrial automation controllers and aerospace instrumentation.
Integrating these layers of compliance and qualification into the engineering workflow translates into smoother regulatory paths and the reduction of unforeseen risks during both certification and real-world operation. This multi-dimensional approval profile ensures that the 1.5KE18CA-E3/73 remains a sound choice for system designers and procurement stakeholders focused on long-term reliability, safety, and environmental responsibility across diverse, demanding application landscapes.
Potential Equivalent/Replacement Models for Vishay 1.5KE18CA-E3/73
Identifying viable equivalent or replacement models for the Vishay 1.5KE18CA-E3/73 requires a comprehensive evaluation of electrical and mechanical parameters central to TVS diode performance. At the core, transient voltage suppression diodes are specified by their breakdown voltage, standoff voltage, peak pulse current, clamping voltage, and package compatibility. In the case of the 1.5KE18CA-E3/73, a bidirectional protection device, the primary criteria for equivalency begin with ensuring the standoff voltage closely matches 18V, while the breakdown and clamping voltages remain within application margins to avoid premature conduction or insufficient suppression during surge events.
Within the same Vishay 1.5KE series, the 1.5KE18A variant provides unidirectional protection with analogous peak pulse power (1500W, 10/1000µs waveform) and standardized DO-201AD packaging. Substitute bidirectional options such as the 1.5KE16CA-E3/73 or 1.5KE20CA-E3/73 adjust the voltage thresholds to cover system tolerances when minor shifts can be tolerated without compromising overvoltage immunity or normal operation. This is particularly relevant in designs with secondary overvoltage margin, where standoff voltage windows are not utilized to their full extent and neighboring diodes can serve interchangeably with minimal risk.
Looking further afield, the 1N6267A through 1N6303A series from various manufacturers offer pulse power ratings and package profiles comparable to the 1.5KE18CA-E3/73, broadening sourcing potential for qualified alternatives. These series, designed around JEDEC standards, facilitate drop-in replacements by adhering to similar thermal, mechanical, and surge-handling characteristics. However, datasheet cross-comparison is essential; subtle disparities in surge response time or leakage current under quiescent conditions may impact sensitive analog circuits or power management modules.
In practical design cycles, replacement selection benefits from systematic parameter mapping, where engineers establish absolute minimum and maximum limits based on the application’s OVP threshold, system tolerance for leakage, and expected transient loading. Experience indicates that the pursuit of multi-sourced equivalents is best supported by periodic audit of vendor supply status and parametric drift, as secondary sources sometimes employ substitutive silicon die or alternative passivation processes, which can influence long-term reliability and derating strategies. Establishing bench tests that replicate anticipated fault and surge conditions further validates form, fit, and function—mitigating the risk of latent failures that are not always evident in static parameter review.
A refined procurement strategy may also integrate parametric safety margins above the minimum, factoring process variations and field aging. This anticipates scenarios where international supply constraints invite the use of adjacent voltage grades or alternate vendors, balancing immediate availability with ongoing compliance. It is often advantageous to leverage distributors' parametric comparison tools and active qualification batches, thereby reducing time-to-market impact while preserving circuit protection integrity.
Sustained robustness in ESD and surge applications rests on methodical cross-verification, continuous monitoring of alternate qualification data, and alignment of part substitutions with the latest reliability test results. Integrated documentation and trace matrixes provide essential traceability, enabling agile response should field data reveal deviations from expected performance, particularly when systems operate in demanding or safety-critical domains.
Conclusion
The Vishay General Semiconductor 1.5KE18CA-E3/73 TVS diode demonstrates advanced engineering in transient voltage suppression, integrating a bidirectional clamping architecture that ensures symmetrical protection against both positive and negative transients. The fundamental silicon avalanche mechanism delivers rapid response characteristics, while its 1500 W peak pulse power rating ensures resilience against intense surge events, such as induced lightning or ESD strikes. Designed to operate reliably under demanding thermal and electrical loads, this diode features optimized die geometry and lead frame construction, minimizing parasitic inductance and enhancing surge energy dissipation.
The device’s electrical profile—characterized by tight clamping voltage tolerances, low leakage current, and fast recovery times—aligns closely with EMC standards required across automotive, industrial controls, and telecommunication infrastructure. In high-density PCBs where space and thermal management are at a premium, 1.5KE18CA-E3/73 excels due to its robust form factor and wide operating temperature range. When deployed in distributed protection topologies, such as multi-point CAN bus nodes or power rails in consumer devices, the TVS diode delivers consistent safeguarding without introducing excessive signal attenuation or latency.
Supply continuity and system upgradability receive implicit support through Vishay’s cross-compatible product matrix, allowing seamless interchanges of TVS variants during lifecycle management or regulatory shifts. This approach reduces procurement risks and accelerates design validation cycles, especially when integrating into platforms with strict certification requirements. System architects leveraging the 1.5KE18CA-E3/73 gain flexibility in balancing bill-of-materials constraints against transient threat profiles, streamlining both initial assembly and future maintenance scenarios.
Reliable transient protection, as provided by the 1.5KE18CA-E3/73, is foundational in achieving long-term device longevity and minimizing field failures. Practical deployment has shown that careful placement—particularly near connectors, sensor interfaces, and power entry points—maximizes suppression effectiveness and minimizes downstream component stress. The diode’s rugged construction and consistent parameterization translate directly into lower warranty service rates and improved overall ecosystem robustness.
In this context, the 1.5KE18CA-E3/73 transcends passive protection, actively contributing to operational safety and system compliance. Strategic selection and integration of this TVS diode optimize circuit resilience, facilitate adherence to evolving regulatory frameworks, and sustain performance requirements under variable environmental conditions. The device serves as a benchmark for efficient, scalable transient protection engineering, reinforcing its status as a preferred choice for designers confronting diverse and stringent safeguarding challenges.
