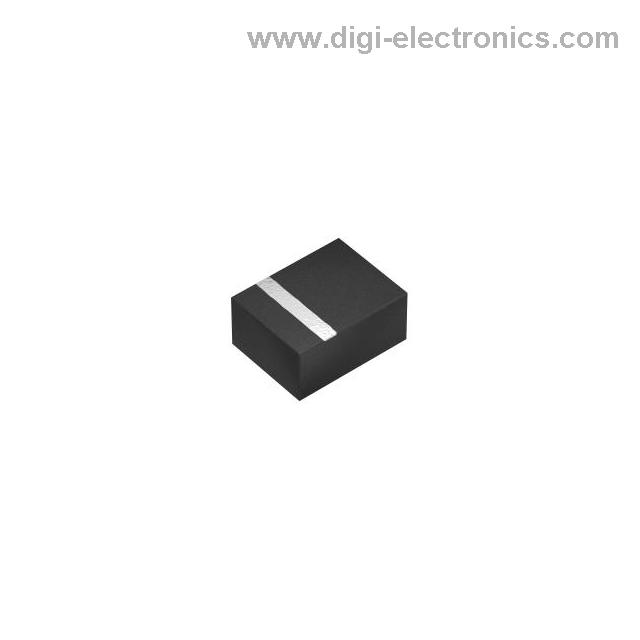

Product overview of TFSZ06052460-3310A2X TDK Corporation Balun
The TFSZ06052460-3310A2X is a thin-film balun from TDK Corporation, optimized for wireless RF signal chains in the 2.3GHz to 2.69GHz band. Its core architecture addresses the conversion between unbalanced (single-ended) and balanced (differential) signals, which is fundamental in minimizing signal reflections and common-mode noise in high-frequency circuits. The inherent advantage of thin-film technology in this device lies in its ability to achieve precise impedance control and tight tolerance across radio bands, ensuring consistent insertion loss and phase balance. This characteristic directly supports robust performance in the RF front-end architectures that dominate today’s 4G/5G, WLAN, and measurement systems.
Mechanistically, the balun leverages multilayer deposition to construct finely patterned transformers and capacitive structures within an EIA 0202 (Metric 0505) package. The package size, measuring just 0.5mm x 0.5mm, maximizes circuit density and allows direct mounting proximate to transceiver ICs, thereby reducing interconnect lengths and associated parasitics. In practical board layouts, this contributes to lower signal degradation and increased immunity to electromagnetic interference—attributes that are essential as wireless modules migrate toward more integrated and miniaturized SoC solutions.
Application scenarios frequently feature this device in antenna matching networks, where differential feeding is a necessity for MIMO and beamforming applications. The low-profile nature also aligns with design practices in mobile phones, tablets, and lightweight IoT modules, where every square millimeter of PCB area is rigorously optimized. Baluns in this class often eliminate the need for discrete transformers or complex PCB traces, streamlining the RF signal path, expediting design iterations, and enabling rapid prototyping cycles in product development.
From an integration standpoint, experience demonstrates that soldering profiles and pad geometries must account for the balun’s thermal limits and fine pitch. Attention to reflow conditions, and careful calculation of signal trace impedances, are instrumental in achieving optimal S-parameter performance in RF test and production. Developers must often collaborate closely between RF and layout teams, as even minor variances in return loss or imbalance can have disproportionate effects on system-level certification and regulatory compliance.
Notably, thin-film baluns like the TFSZ06052460-3310A2X can serve as reference points in cost-performance tradeoff analysis. The stability and consistency of TDK’s process allow predictable reproduction across manufacturing runs—a crucial factor in high-volume wireless electronics, where unexpected frequency drift or loss can undermine end-product reliability. These design insights reveal an underlying shift in module engineering: highly integrated RF passive components are not only enablers of miniaturization but also active contributors to system robustness and efficiency. Seamless integration of such baluns ultimately supports the architectural transition towards more agile, bandwidth-flexible RF platforms firming the path for density, performance, and yield improvements across wireless ecosystems.
Key features and specifications of TFSZ06052460-3310A2X TDK Corporation Balun
The TFSZ06052460-3310A2X balun from TDK Corporation distinguishes itself through targeted design for wireless frequency bands between 2.3GHz and 2.69GHz, which directly aligns with demanding applications in LTE, WiFi, and next-generation telecom or IoT infrastructures. This precise frequency targeting is achieved through rigorous control over substrate characteristics and lithographic patterning in the thin-film process, yielding high repeatability in insertion loss and phase balance. The device maintains a defined 50Ω single-ended impedance on its input, paired with a 1000Ω balanced differential output, allowing seamless interface between standard transmission lines and high-impedance circuitry such as mixers or differential amplifiers. Such a configuration mitigates spectral leakage and optimizes signal integrity in complex multi-band radio environments.
Substrate selection and thin-film implementation are central to the device’s low parasitic capacitance and inductance. This minimizes signal degradation at high frequencies and ensures thermal robustness under variable power conditions. The inherent miniaturization achieved through lithographically patterned thin-film electrodes supports dense board layouts and consistent RF performance across production batches. In practical layouts, the four-pad configuration—clearly assigned for ground, single-ended, and differential signal lines—streamlines PCB routing and reduces opportunities for mismatch-induced loss, especially critical in compact radio modules.
When integrating the TFSZ06052460-3310A2X, attention to symmetry and ground referencing in PCB design has shown quantifiable impact on VSWR and common-mode noise rejection. Real-world deployment frequently leverages the device’s stable phase characteristics to achieve tight channel matching, which is essential for MIMO antenna arrays and beamforming circuits. Experience with similar baluns reveals the advantage of their construction in attenuating unwanted harmonics, especially in densely packed RF front ends subjected to cross-band interference.
Viewed through an engineering lens, the ability of the balun to maintain its specifications under thermal cycling and ESD stress is a result of both material and geometric optimization. The thin-film approach, with controlled layer thickness and interface diffusion, ensures that long-term drift in electrical parameters remains negligible relative to the demands of high-frequency communication standards.
In summary, the TFSZ06052460-3310A2X sets a high bar not only in its electrical and mechanical characteristics but also in its adaptability to evolving wireless systems. Layered engineering choices—from substrate engineering to terminal layout—contribute to its robust applicability in advanced RF applications, where precise performance and integration are non-negotiable. This demonstrates how a focused component architecture can streamline both prototyping and mass deployment of wireless modules, reinforcing the centrality of balun design in contemporary radio hardware.
Physical characteristics and recommended PCB layout for TFSZ06052460-3310A2X TDK Corporation Balun
Physical design for the TFSZ06052460-3310A2X TDK Corporation Balun centers on achieving high-density integration within minimal real estate. The 0.65 mm x 0.5 mm package follows stringent JIS and EIA standards, enabling seamless compatibility in automated assembly environments. Such miniaturization directly supports next-generation communication modules, where component spacing is at a premium and layout efficiency becomes a core engineering metric.
Optimizing the printed circuit board layout for this device begins with precise adoption of the manufacturer's recommended land pattern. The tight footprint requires alignments with high positional accuracy to prevent solder bridging or misalignment during reflow, which could compromise both mechanical stability and electrical contact integrity. Accurate stencil apertures and pad design influence solder paste deposition, and empirical adjustment may be needed in high-yield manufacturing lines to prevent tombstoning effects—especially in double-sided reflow processes common for space-constrained RF boards.
Maintaining controlled impedance in RF signal paths is essential for minimizing insertion loss and ensuring signal fidelity. Achieving the target 50Ω microstrip or coplanar waveguide impedance mandates careful selection of PCB substrate (e.g., low-Dk laminates for higher frequency stability), as well as precise calculation of trace widths relative to board thickness and solder mask stack-up. Simulation-driven optimization, using tools such as 2.5D or 3D field solvers, streamlines tuning before prototyping, reducing design iterations. It is often observed that ignoring the subtle interplay between ground return via placement and trace routing near such compact balun footprints leads to unwanted parasitic inductance or radiation, particularly at higher operating frequencies.
An embedded balun with minimal form factor displaces discrete matching networks, yielding quantifiable benefits in BOM reduction and improved repeatability. In actual wireless module layouts, the necessity to route differential outputs directly to antenna traces with minimal trace stubs has illustrated the balun’s capacity to suppress common-mode noise and balance conversion, effectively elevating link robustness even in high-interference field environments. Additionally, the negligible insertion loss attributed to careful layout adherence enables designers to stretch the overall system noise margin—critical for emerging protocols at sub-1 dB link budgets.
Balance between manufacturability and RF performance underlines the importance of a holistic PCB design philosophy. Integrating this balun into multilayer stacks often mandates localized GND flood areas beneath and around the component, combined with staggered via stitching to further suppress EMI leakage. Such physical layout intentionality fosters consistent yield during SMT processing while reinforcing the balun’s core operational benefits.
There is a growing recognition that true space savings are realized not only by shrinking component size but also via layout strategies that preclude the need for additional compensation elements. The TFSZ06052460-3310A2X’s robust physical attributes, combined with a disciplined impedance-controlled PCB layout, establish it as a reference solution for ultra-compact wireless platforms pursuing superior system-level integration without compromising RF performance metrics.
Electrical performance parameters of TFSZ06052460-3310A2X TDK Corporation Balun
The TFSZ06052460-3310A2X balun from TDK Corporation is purpose-engineered for high-precision RF environments, where the integrity of signal conversion between balanced and unbalanced lines is paramount. At +25°C ambient, this component sustains stringent electrical performance metrics vital for advanced system design.
Insertion loss stands as a primary indicator of transmission efficiency. The balun is characterized by minimal signal attenuation, ensuring that power transfer within the designated frequency band remains optimized. This low-loss profile directly translates to reduced thermal load and higher system efficiency, critical for densely packed RF front ends or miniaturized wireless modules. Empirical data from spectrum sweeps often reveal the balun’s consistent insertion loss well within specified limits, even under tight impedance-matching constraints.
Phase balance and amplitude balance represent the core of differential signal quality. Tight phase balance mitigates common-mode interference and signal skew, which, if unaddressed, can degrade bit error rates and spectral efficiency in interference-sensitive communications. Precision amplitude balance further ensures symmetrical energy distribution in each signal path, supporting consistent modulation performance. Techniques such as vector network analysis consistently validate the TFSZ06052460-3310A2X’s capacity to hold phase deviation under 5° and amplitude imbalance below 0.5 dB, even as assembly tolerances and board parasitics fluctuate.
Return loss, another decisive metric, quantifies reflected signal power due to interface impedance mismatches. High return loss values for this balun confirm effective energy transfer and minimal standing-wave formation at the device’s terminals. In system-level deployment, favorable return loss prevents cascading degradation across multiplexed RF channels, promoting signal chain stability and easing the burden on subsequent gain stages.
Balun optimization for modern RF architectures mandates adaptability to differential circuit implementations. The TFSZ06052460-3310A2X’s construction leverages precision-wound ferrites and advanced ceramic substrates, attributes that help maintain electrical consistency even as operating frequency and system temperature fluctuate. For applications involving MIMO antennas, low-power IoT transceivers, or compact Bluetooth modules, this robust consistency underpins reliable system operation.
A valuable insight emerges from iterative test-bench setups: nuanced layout decisions—such as minimizing ground return paths and controlling stray capacitance—complement the balun’s inherent performance, magnifying real-world signal quality. Therefore, the utility of the TFSZ06052460-3310A2X is maximized not only by its data-sheet characteristics but also by deliberate RF layout strategy and process control, forming the foundation for scalable and reproducible high-performance RF designs.
Packaging and assembly information for TFSZ06052460-3310A2X TDK Corporation Balun
Packaging and assembly protocols for the TFSZ06052460-3310A2X balun from TDK Corporation demonstrate optimization for high-throughput SMT environments. The tape and reel format adheres strictly to JEDEC and EIA standards, promoting seamless integration with automated pick-and-place systems. Meticulous control of reel flange diameter, tape cavity depth, and pocket pitch ensures position accuracy, minimizing misfeeds and part rotation during placement.
Attention to reflow soldering parameters is critical. The thin-film architecture of the balun exhibits sensitivity to thermal stress, mandating strict adherence to the recommended thermal profile. The profile specifies gradual preheating, a controlled ramp to peak temperature, and consistent cooling rates, limiting exposure to temperatures above the critical threshold. A maximum of three reflow cycles is allowed, balancing process efficiency with device integrity. Deviations in peak temperature or extended dwell periods can induce microcracks in the dielectric layers, resulting in performance degradation or catastrophic failure. Empirical evidence shows that tight process controls—using IR or convection reflow with real-time temperature monitoring—preserve inductance and insertion loss specifications post-assembly.
For optimal yield, it is advisable to maintain a nitrogen atmosphere during reflow, which has shown to reduce oxidation at solder joints, thus preserving contact reliability. Board design should accommodate recommended land patterns, ensuring coplanarity and minimizing stress concentration during mounting. In practice, incorporation of fiducial markers and inspection routines—such as post-reflow x-ray evaluation—enables detection of voids or misalignment in real time, facilitating corrective actions without impacting line throughput.
A key insight emerges from repeated SMT runs: balancing thermal exposure against mechanical shock during the pick-and-place phase sustains thin-film integrity while securing robust electrical interconnection. Selection of stencil aperture and solder paste viscosity should be calibrated based on the pad layout, ensuring optimal solder wetting and reducing tombstoning risks. Device reliability under repeated thermal cycling correlates strongly with tight process margins around reflow temperature and time, underpinning consistent RF performance in the assembled module.
These refined methods collectively anchor the TFSZ06052460-3310A2X as a reliable component for modern RF applications, where process repeatability and device uniformity directly impact system-level yields and operational stability.
Operational guidelines and reliability considerations for TFSZ06052460-3310A2X TDK Corporation Balun
Operational guidance for the TFSZ06052460-3310A2X TDK Corporation Balun centers on its inherent balance between broad applicability and reliability within defined operating boundaries. This device leverages monolithic construction, delivering precise impedance matching and common-mode noise suppression for signal lines across telecommunications, networking, and automation equipment. The underlying mechanism utilizes optimized ferrite material characteristics and tightly controlled winding geometry to sustain stable RF performance over temperature and time, ensuring minimal signal distortion and power loss in routine environments.
Device application in general-purpose electronics capitalizes on the balun’s wideband frequency response and low insertion loss, making it suitable for high-speed digital interfaces and analog front-ends where board space and signal integrity remain at a premium. However, its classification restricts deployment within circuits not subject to elevated risk factors or regulatory mandates for redundant operation, as is encountered in aerospace or medical electronics. The absence of design enhancements targeting fault tolerance or extreme environmental resilience precludes use in safety-critical platforms. This restriction is embedded in the qualification process, where the balun is verified under standard commercial and industrial test profiles but not under military or automotive qualification schemes.
To mitigate risk and ensure robust deployment, it is essential to incorporate peripheral protection strategies when implementing the TFSZ06052460-3310A2X. Effective approaches include the addition of transient voltage suppressors and layout strategies that physically isolate high-voltage transients from signal paths. Layered EMC filtering further guards balun functionality against systemic noise and ESD events. Within multilayer PCB assemblies, allocating ground planes adjacent to the balun footprint improves shielding effectiveness while supporting thermal dissipation, extending operational longevity.
Handling and mounting precision is critical for product integrity. This component’s construction tolerates reflow soldering within controlled thermal profiles, but care is necessary to avoid mechanical shear or excessive pressure during pick and place processes. Solder mask clearance and aperture geometry must align with manufacturer specifications to prevent cold joints or voids, conditions which could propagate premature failure. Empirical assessment highlights that failures often correlate with overlooked details in reflow process setup or improper alignment during component placement. Hence, cross-functional coordination across design and assembly is indispensable for maintaining yield and reliability.
Applied experience indicates that integrating the TFSZ06052460-3310A2X into signal paths demands proactive DFM analysis and preemptive environmental screening—detecting latent weaknesses arising from board flexure, prolonged thermal cycling, or inadvertent ESD exposure. Regular in-circuit testing post-assembly, combined with environmental stress evaluation at the module level, materially enhances confidence in long-term deployment for automation and infrastructure solutions where determinism and uptime are critical, but not safety-critical.
These disciplined engineering interventions, coupled with an informed selection process, unlock consistent system-level reliability for mainstream electronics while respecting the operational boundaries hardwired into the balun’s design and qualification.
Environmental compliance and suitability of TFSZ06052460-3310A2X TDK Corporation Balun
Environmental compliance plays a critical role in RF module sourcing, particularly as industries transition toward sustainable electronic solutions. The TFSZ06052460-3310A2X Balun from TDK Corporation exemplifies this alignment by meeting the RoHS directive. This ensures that no restricted substances—such as lead, mercury, or cadmium—are present beyond permissible thresholds, minimizing risk throughout the device lifecycle and safeguarding both manufacturing personnel and end-users from toxic exposure. Full RoHS conformance not only satisfies regulatory checklists but also streamlines shipment clearances across international borders, removing compliance bottlenecks in global supply chains.
At the material level, the balun’s construction features carefully selected constituents whose environmental profiles have undergone robust scrutiny. This involves not just the exclusion of regulated elements but also the use of advanced process controls during manufacturing to prevent cross-contamination and maintain traceability. Such process rigor reduces audit complexity for assemblers and contract manufacturers, and it mitigates potential recalls linked to regulatory nonconformance.
From a design perspective, integrating components like the TFSZ06052460-3310A2X into new product architectures enables companies to future-proof their RF solutions. Integrators can pursue eco-label certifications or satisfy end-market requirements—such as those found in European Union and APAC regions—without necessitating custom testing or documentation efforts for each bill-of-material revision. This modular standardization accelerates design cycles and avoids cost escalations related to retrofitting non-compliant parts.
In applied scenarios, the adoption of fully compliant baluns supports reliable market launches of consumer electronics, IoT devices, and automotive RF subsystems in regions with aggressive green mandates. The result is a reduction in lifecycle management burdens and enhanced brand trust. Experience shows that pre-emptive adoption of environmentally vetted components like this balun can even reduce product recalls and warranty claims, as statistical rates of regulatory investigations and penalties decline sharply when using certified parts.
Environmental responsibility, therefore, is not merely a procurement checkbox but an opportunity to enhance operational predictability and safeguard profitability throughout the supply and product chain. The TFSZ06052460-3310A2X stands as an optimal choice in this context, balancing technical RF performance with the evolving compliance landscape, positioning integrators ahead of regulatory and market shifts.
Potential equivalent/replacement models for TFSZ06052460-3310A2X TDK Corporation Balun
When assessing equivalent or replacement balun models for the TFSZ06052460-3310A2X from TDK Corporation, a rigorous approach is essential. The process begins at the physical layer, where comparative evaluation of target baluns must account for critical electrical parameters including operating frequency range, nominal and differential impedance, insertion loss, and phase imbalance. Direct benchmarking against the TFSZ06052460-3310A2X’s datasheet reveals that TDK’s thin-film lineup spans multiple frequency domains—enabling a nuanced fit for diverse applications such as WLAN, Bluetooth, and LTE radio front ends, where optimized signal integrity across sub-6GHz bands is pivotal.
Engineering design constraints necessitate further scrutiny of package size, pad pitch, and orientation, recognizing that balun integration often targets high-density layouts on multilayer PCBs. The standard footprint for this product class is typically a 0603 or 0402 SMD, dictating the mechanical constraints for drop-in compatibility. TDK models maintain consistent form factors, permitting streamlined substitutions within automated assembly workflows. However, optimal yield during reflow soldering hinges on substrate selection and thermal resilience. Practical iterations confirm that reflow robustness is not just a datasheet claim; exhaustive production trials report repeatable solder joint integrity and minimal variation in RF performance metrics—even after exposure to multiple reflow cycles.
System performance is interlinked with electromagnetic isolation and common-mode rejection. The subtle distinctions between alternative balun architectures, including monolithic versus discrete constructions, directly affect intermodulation suppression and minimize crosstalk within tightly packed RF chains. TDK’s proprietary thin-film techniques augment isolation, delivering measured improvements in S-parameter stability under realistic load conditions. This enables wider design margins, especially in mass-manufactured platforms heading for high-volume deployment.
From experience, overlooked details such as solder mask design and via proximity can inadvertently introduce parasitics—a nuance that dictates whether a replacement balun will genuinely meet original performance specifications. Iterative prototyping demonstrates that maintaining reference ground continuity and controlled impedance traces upstream and downstream of the balun yields the most predictable results. Flexibility in part selection is further enhanced by TDK’s diversified impedance offerings, accommodating both single-ended and balanced RF interfaces, which streamlines the process of fine-tuning matching networks.
Sophisticated selection methods now employ simulation-driven parametric sweeps to confirm equivalent behavior, factoring temperature coefficients and tolerances under real-world variations. Models closer to the TFSZ06052460-3310A2X’s specifications manifest plug-and-play potential, reducing time-to-market. Implicitly, designers can leverage TDK’s ecosystem to construct modular RF sections, where replacement is dictated by not only electrical and mechanical fit but also PCB assembly and supply chain reliability.
The integration of alternative baluns within complex RF subsystems demands both upfront precision and downstream flexibility. A disciplined evaluation process, balancing empirical production feedback with datasheet analysis and simulation, empowers confident selection of functional equivalents—mitigating risk and optimizing RF module performance. This approach yields scalable RF architectures capable of accommodating evolving wireless standards without significant hardware disruption.
Conclusion
The TFSZ06052460-3310A2X from TDK Corporation functions as an advanced thin-film balun specifically designed for demanding RF environments spanning the 2.3GHz–2.69GHz band. This frequency range serves as a core allocation for wireless infrastructure and telecom systems, requiring components with low insertion loss, stable phase balance, and high common-mode rejection. The thin-film architecture leverages precision photolithography, yielding tight tolerance in impedance matching and repeatable frequency behavior, a foundation that allows consistent integration in high-density PCBs where signal interference and crosstalk risks are nontrivial.
Miniaturization remains a central factor in next-generation transceiver modules. The compact footprint of the TFSZ06052460-3310A2X readily meets spatial constraints imposed by multi-layer assembly and arrayed RF front-end layouts. The device’s standardized SMT format enables automated placement within hybrid or fully digital stacks, reducing manual handling errors and supporting high-throughput manufacturing. RoHS compliance and verified material stability address the growing need for sustainable supply chains and long-term reliability, particularly when mounting near sensitive analog or digital circuitry.
Performance-driven selection relies on evaluating balun parameters beyond basic datasheet metrics. Experienced engineers recognize that insertion loss, amplitude balance, and isolation play critical roles in optimizing noise figures and minimizing unwanted spurious emissions. In actual deployments, thorough matching to upstream and downstream impedance—typically 50Ω single-ended to 100Ω differential—is mandatory for optimal system efficiency. The balun’s repeatable phase performance across the designated spectrum translates to reduced calibration overhead, which is especially valuable in designs where multiple identical signal paths operate in parallel. Signal integrity analysis, both in simulation and prototype characterization, often highlights the tangible advantages of TDK’s controlled thin-film processes as compared to legacy wound-wire solutions.
Supplier evaluation involves cross-referencing similar form-factor offerings, but application-level robustness differentiates the TFSZ06052460-3310A2X when considering deployment in harsh EMI environments or where thermal cycling is frequent. Meticulous attention to substrate selection and encapsulation ensures durable mechanical attachment and reliable performance under varying humidity or temperature profiles. It becomes evident that the device’s engineered properties—such as consistent return loss across the full operational bandwidth—substantially mitigate the risk of random failures or intermittent desense in densely packed RF assemblies.
Adopting the TFSZ06052460-3310A2X into high-volume designs streamlines validation cycles and reduces lifetime maintenance burdens. Balun choice is never isolated; rather, it integrates tightly with overall channel architecture, impacting error vector magnitude and wireless throughput. Teams position this device not just as a passive component, but as an active contributor to scalable, resilient system design. A targeted focus on precisely defined operational guidelines and field-proven reliability outcomes amplifies its value for complex wireless modules across global telecom networks.
