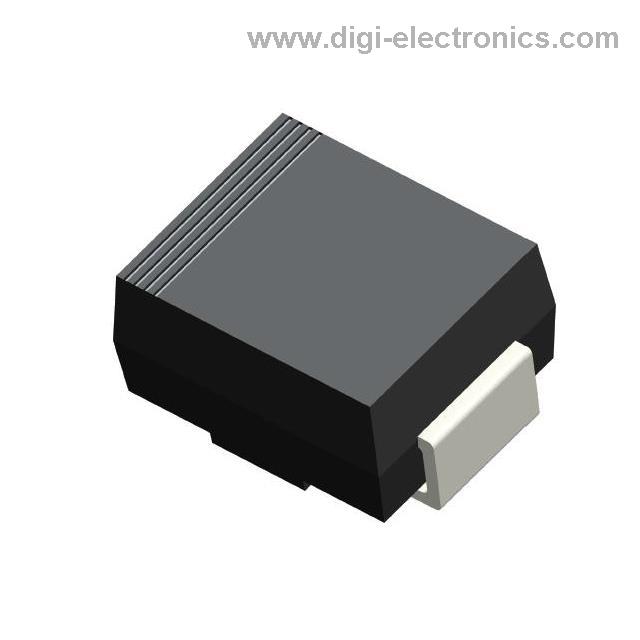

Product overview: SS24A Schottky Rectifier from SMC Diode Solutions
The SS24A Schottky Rectifier from SMC Diode Solutions is engineered to address stringent requirements in high-efficiency, space-constrained designs. At its core, the device leverages Schottky barrier technology, characterized by a metal-semiconductor junction with negligible minority carrier charge storage. This enables fast switching behavior, essential for minimizing power losses in high-frequency circuits. With a maximum repetitive peak reverse voltage of 40V and a sustained forward current capability of 2A, the SS24A balances voltage headroom and current density, making it particularly suitable for demanding low- to mid-voltage applications.
The SMA (DO-214AC) package supports automated optical inspection and rapid pick-and-place assembly, streamlining workflows in volume production environments. Its low-profile format optimizes PCB real estate utilization, a critical factor in modern, miniaturized systems. A notable design outcome is the component’s ability to dissipate heat efficiently when paired with matched PCB copper pour areas, mitigating the common reliability risks associated with localized thermal hotspots.
From a system integration standpoint, the SS24A’s low forward voltage drop—typically around 0.4V at moderate current—directly reduces conduction losses. This feature is instrumental in improving the overall efficiency of switch-mode power supplies, especially within synchronous rectification stages where every incremental gain translates to lowered system thermal stress and increased power density. Additionally, Schottky rectifiers like the SS24A excel in polarity protection roles, where rapid recovery time and low leakage current ensure both fast system response and negligible standby loss.
Voltage clamping circuits further benefit from the device's consistent reverse blocking robustness, which proves essential when suppressing voltage transients in DC-DC converters and automotive subsystems. Practical deployment of the SS24A often involves parallel configuration—to further increase total current capability—demanding careful attention to trace symmetry and thermal paths to prevent uncontrolled current sharing. The compact package, while advantageous for space savings, requires thoughtful placement around airflow paths or heat-sinking structures in higher-power assemblies.
In contemporary engineering practice, fine-tuning the balance between reverse leakage current and operating temperature is crucial. The SS24A exhibits expected increases in leakage at elevated junction temperatures, a typical trade-off for high-speed Schottky devices. While this is an integral device-level consideration, system-level circuit protection and thermal management strategies readily accommodate this characteristic through conservative voltage de-rating and PCB-level heat dissipation planning.
Selecting the SS24A frequently rests on its well-engineered compromise between electrical performance and form-factor constraints. This diode fits particularly well in topologies requiring efficient low-voltage rectification, presenting a clear path to higher system efficiency while preserving design agility for compact layouts. Close evaluation of current derating curves in conjunction with real-world layout considerations enhances both system reliability and long-term operational stability, reinforcing the SS24A’s reputation as a robust and versatile choice in modern electronic circuits.
Key features and technology of the SS24A Schottky Rectifier
A comprehensive examination of the SS24A Schottky Rectifier reveals a device engineered to exploit the unique properties of the metal-semiconductor interface present in Schottky Barrier technology. Unlike conventional silicon PN-junction diodes, the SS24A deploys this barrier to minimize carrier storage, yielding an exceptional switching speed critical for high-frequency operation. This inherent reduction in reverse recovery time positions the SS24A as an optimal solution for switched-mode power supplies, voltage clamping, and RF circuit protection, where efficient rectification directly influences system stability and thermal profile.
The design achieves a conspicuously low forward voltage drop, typically below 0.5V at nominal operating currents. This characteristic translates to diminished conduction losses and minimal heat dissipation, enabling tighter board layouts and potentially lighter thermal management requirements in end-use equipment. The capacity to reliably handle surge overloads, marked by its 50A peak non-repetitive forward surge current rating, facilitates robust transient protection. Such performance is increasingly valuable in scenarios where input voltages may fluctuate or demand spikes occur—typical in switching regulator outputs or motor driver circuits.
Manufacturing integrity is upheld through full RoHS compliance and a lead-free structure. These factors address both regulatory mandates and corporate sustainability initiatives, without compromising device reliability or electrical performance. The enclosure boasts a high-grade UL 94V-0 flame-retardant plastic, reinforcing trust in deployment within densely packed, safety-critical modules, including automotive ECUs, telecom infrastructure, and precision instrumentation.
A notable attribute is the inclusion of wafer lot-level device traceability. This provision benefits operational oversight and facilitates predictive maintenance protocols in supply chain management, as any upstream variations in process quality can be tracked and mediated efficiently. Such transparency is increasingly cited as essential in mission-critical and high-volume manufacturing environments.
In practical implementation, a nuanced balance between performance and cost emerges when specifying the SS24A for a given circuit. While the rectifier excels in fast switching and energy conservation, system designers must assess junction temperature and surge protection ratings in context with expected load conditions and compliance demands. Direct integration experiences demonstrate that leveraging the SS24A's surge capability often allows downstream components to operate with reduced protection requirements, enhancing overall design simplification. Furthermore, the rectifier’s low forward voltage drop can provide competitive advantages in battery-powered architectures, reinforcing runtime and minimizing unnecessary thermal cycling.
The SS24A thus exemplifies the strategic value of Schottky interface engineering—where minor adjustments in barrier characteristics and package standards substantially influence device reliability and application scope. A considered approach to part selection, grounded in circuit-level requirements and regulatory constraints, results in measurable gains in power density, longevity, and operational transparency.
Electrical and thermal characteristics of the SS24A Schottky Rectifier
The SS24A Schottky Rectifier exhibits a carefully balanced set of electrical and thermal characteristics tailored for robust performance in power conversion circuits. The device’s reverse voltage capability, capped at 40V, positions it as a viable choice for low-voltage rectification across a range of DC-DC converters and secondary side synchronous rectifiers. Peak values, such as the 2A maximum average forward current (IF) referenced to a 5mm² copper pad, are valid only under controlled thermal boundaries and directly frame the device’s application envelope. Engineers recognize that these ratings—while conservative for standard conditions—represent the upper envelope of safe operation; any significant deviation in PCB copper area or insufficient thermal vias alters the junction-to-ambient thermal resistance, driving earlier onset of derating.
The device’s characteristic low forward voltage drop (VF), often near 0.5V at rated IF, stems from the majority-carrier conduction inherent to Schottky technology. This parameter underpins elevated system efficiency, especially critical in high-frequency switch-mode power supplies, where cumulative conduction losses dominate in both continuous and pulsed loads. In practical layouts, reducing track impedance and optimizing copper area around the anode/cathode substantially preserves this low VF, particularly as thermal gradients arise during sustained peak loading. The SS24A’s 50A non-repetitive surge rating yields ample margin for transient events such as transformer inrush, output capacitor charging, or fast switchovers, provided PCB traces and external components manage current localization without excessive heating or overstress.
Thermal coordination lies at the core of reliable rectifier deployment. The SS24A’s performance hinges on effective heat evacuation from the junction to ambient. Forward current derating curves, provided in the datasheet, explicitly correlate maximum allowable current with evolving case or ambient temperature. Seasoned practitioners extend these datasheet curves with finite element simulation or thermal imaging to capture warm-spots during high-frequency cycling or fault events. Layers of copper, thermal vias, and, where feasible, dedicated heatsinks form the basis for sustaining the device’s upper current limit, even in elevated ambient conditions or densely packed layouts.
Beyond default recommendations, nuanced decisions regarding parallel diode usage or dynamic load sharing often hinge on small-signal parameters, such as reverse leakage current and recovery time, which grow temperature-dependent and may affect less-obvious failure modes in redundant paths. Fast switching performance means the SS24A consistently minimizes both reverse recovery losses and EMI, provided careful attention to layout minimizes loop inductance and stray capacitance. It excels in orchestration with low-ESR capacitors and swift controller topologies—such as those found in synchronous buck converters or isolated flyback secondaries.
In summary, performance margins for the SS24A are highly sensitive to layout decisions, component placement, and attention to power path optimization. Leveraging its low forward voltage and fast switching, while rigorously addressing thermal bottlenecks, distinguishes successful high-efficiency designs. Insightful engineering extends practical operation by integrating robust copper patterns, recognizing thermal transients, and harmonizing switching speed with circuit parasitics. This layered approach maximizes the rectifier’s electrical potential and system longevity.
Mechanical data and packaging information for SS24A Schottky Rectifier
The SS24A Schottky Rectifier is optimized for high-volume, automated production environments, leveraging the SMA (DO-214AC) surface-mount package to meet stringent process requirements. The encapsulation utilizes high-reliability molded plastic and precision-plated leads, chosen to align with MIL-STD-750, Method 2026 solderability standards. This construction ensures consistent joint integrity, especially under repetitive thermal cycling in reflow soldering profiles commonly encountered on modern surface-mount technology (SMT) lines.
The device features a color-coded polarity marker at the cathode, which is integrated directly into the package design. This visual cue significantly reduces placement errors on densely populated boards, streamlining optical recognition for assembly and minimizing downstream defects. Engineering experience consistently demonstrates that clear polarity indicators are critical for reducing automated optical inspection (AOI) escape rates and supporting first-pass yield targets when deploying Schottky devices in high-speed pick-and-place workflows.
Thermal dissipation is a core consideration for SMA packages, where the compact footprint and leadframe configuration are balanced to achieve robust heat transfer from the diode junction to the PCB. The molded encapsulation material exhibits controlled thermal expansion and low outgassing, protecting device parameters in both single- and double-sided reflow cycles. Flexible SMT mounting orientations—enabled by precise geometric tolerances—allow for efficient layout in multilayer assemblies, supporting both power and signal routing without compromising component accessibility.
Tape-and-reel packaging specifications are calibrated for direct compatibility with standard feeder systems, optimizing orientation and spacing for smooth throughput. Mechanical dimensions, including standoff height and lead coplanarity, are tailored for uniform pickup by vacuum nozzles, reducing the possibility of misalignment in automated equipment. The marking diagram employs a durable, laser-etched identifier, which persists throughout typical cleaning and handling processes, underpinning robust traceability from kitting to final assembly. This is particularly valuable for statistical process control and component lot validation, as traceability remains intact even after exposure to flux, solvents, and other manufacturing stressors.
In multifaceted circuit designs, deployment of the SS24A rectifier demonstrates a balance between mechanical durability and thermal efficiency. Optimized physical outlines and packaging strategies directly translate to predictable performance, simplified process qualification, and enhanced assembly throughput. Experience highlights that such integration of precise mechanical standards and clear marking systems significantly elevates manufacturing reliability and supports rapid scaling of production in advanced electronics sectors.
Application considerations for SS24A Schottky Rectifier in modern electronic designs
Application of the SS24A Schottky rectifier in contemporary electronics presents notable advantages in high-frequency and energy-conscious systems. At the device physics level, the SS24A leverages a metal-semiconductor junction, resulting in inherently lower forward voltage drop. Compared to conventional silicon diodes, this characteristic substantially minimizes conduction losses. Fast recovery times and negligible charge storage further enable low switching losses, making the SS24A well-suited for scenarios demanding rapid transitions and tight efficiency budgets.
In switch-mode power supplies, the SS24A serves reliably as a secondary-side rectifier, efficiently converting high-frequency AC to DC. Its low voltage drop directly improves system-level conversion efficiency, a critical requirement in compact, thermally constrained designs. For redundant power architectures using diode OR-ing, low leakage current and minimal reverse recovery prevent cross-rail current bleed, supporting stable and predictable failover behavior. In motor drive applications, deployment as a freewheeling diode provides robust protection against voltage spikes, while the fast switching response contributes to smoother transitions and mitigates electromagnetic interference.
Integration success depends on attention to applied voltage levels, ensuring they remain within the SS24A’s absolute maximum ratings. Margin analysis using worst-case scenarios prevents device stress and subsequent reliability degradation. Solder pad footprint must be calibrated for the device package dimensions, optimizing solderability while minimizing parasitic resistance. Heat dissipation is best addressed through strategic copper pours and via arrays beneath the diode, channeling thermal energy away and maintaining junction temperatures within safe operating limits. Selection of materials certified to UL 94V-0 facilitates compliance with flammability standards, minimizing risk during fault events.
Automatic assembly compatibility is enhanced by standardized package sizing and reliable tape-and-reel configurations, crucial for high-throughput manufacturing environments. In fields demanding robust system integrity—even beyond standard commercial requirements—additional qualification steps are indispensable. Extended thermal cycling, vibration exposure, and life-duration bias stress offer actionable data for real-world endurance modeling. Particularly in medical or automotive systems where operational certainty is non-negotiable, implementing screening protocols tailored to field-specific qualification modules mitigates the risk of latent failures.
The strategic integration of the SS24A rests not only on electrical and thermal performance alignment, but also on broader system reliability and manufacturability. Well-balanced design trade-offs—such as thermal spread versus footprint efficiency, switching speed versus EMI containment, or cost versus longevity—enable informed device selection. Practical deployments often illustrate that careful attention to PV layout and thermal management are directly reflected in reduced field returns and higher aggregate system uptime. Distinct performance differentiators like low forward loss and rapid switching make the SS24A an optimal choice where efficiency, speed, and reliability converge as primary drivers.
Potential equivalent/replacement models for SS24A Schottky Rectifier
Potential replacement options for the SS24A Schottky Rectifier must be assessed with careful consideration of both electrical and mechanical compatibility. The SS2xA series from SMC Diode Solutions—covering models such as SS22A, SS23A, and SS220A—demonstrates a commonality in package footprint, supporting straightforward physical substitution in existing board layouts. However, distinctions in reverse voltage, typically ranging from 20V to 200V across the series, and differences in forward current capabilities demand detailed comparison against original design specifications. Applying these parameters to circuit topologies with varying load and transient profiles ensures the chosen substitute aligns with operational safety margins.
Electrical equivalence cannot be presumed solely from datasheet specifications. Forward voltage drop and leakage current must be scrutinized under normal and elevated temperature conditions. Controlled lab measurements highlight that—even with nominally similar models—minor variations can influence power dissipation or thermal stability, especially in dense layouts or high-frequency switching environments. The surge current tolerance, often overlooked, dictates reliability during fault scenarios; this necessitates referencing manufacturer graphs or testing under representative fault-clearing pulses.
Component qualification extends beyond catalog cross-referencing. Integration into automated assembly flows mandates matching soldering temperature profiles, and maintaining the mechanical robustness of the DO-214AA (SMA) package ensures durability through vibration or thermal cycling. System-level validation, including bench-level stress tests or A/B prototype comparisons, can reveal subtle performance disparities missed during bench-level parametric checks. Pursuing this level of analysis is particularly vital in dual-sourcing strategies, where seamless interchangability prevents production bottlenecks.
Strategic selection benefits from weighting not only electrical and physical match, but also vendor support, lead times, and long-term supply assurance. Experience suggests that minor spec mismatches, tolerated in one vendor’s model, might trigger regulatory or certification concerns in critical applications. Incorporating deeper lifecycle analysis and leveraging manufacturer reliability data improves risk mitigation and supports ongoing design validation. Ultimately, the SS2xA series provides a flexible palette, but the optimal replacement demands holistic scrutiny—balancing parametric alignment, physical interchangeability, and procurement resilience for robust system integration.
Conclusion
The SS24A Schottky Rectifier from SMC Diode Solutions demonstrates a nuanced combination of advanced electrical efficiency, compact packaging, and comprehensive standards compliance. Underlying its performance is a Schottky barrier construction that minimizes forward voltage drop and switching losses, directly translating into enhanced conversion efficiency and thermal performance in circuits demanding fast and reliable rectification. The device’s 2A current capability, paired with a low forward voltage (typically around 0.5V at rated current), enables significant gains in energy efficiency and heat management, especially under continuous or pulsed loads. Its TO-252 (DPAK) surface-mount package aligns with industry needs for high-density power designs, enabling flexible PCB layout and reduced thermal impedance for improved thermal dissipation.
In the context of circuit integration, the SS24A’s robust avalanche energy rating and reverse leakage control contribute to greater ruggedness in switched-mode power supplies, DC-DC converters, OR-ing circuits, and polarity protection stages. These aspects mitigate risks associated with voltage transients and high ambient temperatures. Reliable operation is further supported by the device’s junction temperature range and mechanically durable form factor, ensuring stable performance under both space-constrained and thermally demanding environments.
Experience with similar Schottky models in high-frequency applications shows that attention to layout—specifically short, wide traces for cathode-anode paths—significantly reduces EMI and maximizes current handling. Adequate heatsinking, either through larger copper pours or direct-to-heatsink mounting, optimizes device longevity and prevents thermal runaway in compact assemblies. Comparative evaluation with equivalent models such as SS24 or 1N5822 underlines the SS24A’s competitive edge in balancing cost, voltage headroom, and solderability for automated assembly lines.
From a procurement and design optimization standpoint, evaluating the SS24A alongside parameters like surge current handling, total power dissipation, and environmental qualifications ensures alignment with both immediate functional goals and long-term reliability metrics. Integrating this device within modular designs enables design reuse and efficient inventory control, adding further value in platform-based product development. In sum, leveraging the SS24A’s comprehensive set of features in conjunction with disciplined mounting and application-specific evaluation yields tangible benefits across the engineering value chain, from board-level layouts to system-level robustness.
