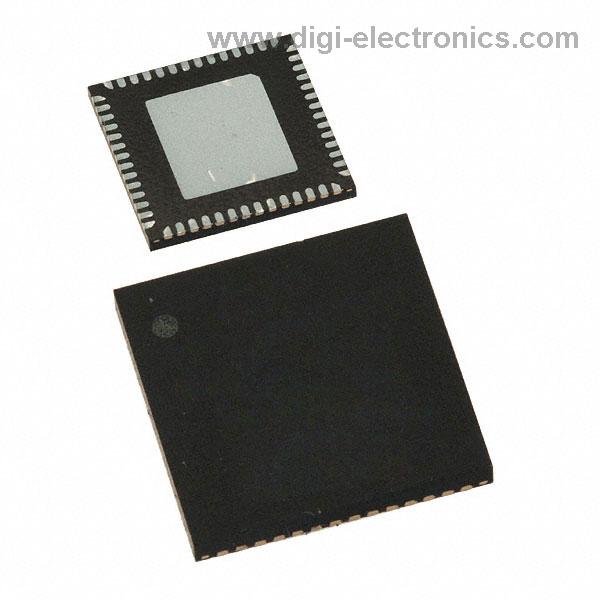

Product Overview: Renesas P9038-RNDGI8 Wireless Power Transmitter PMIC
The P9038-RNDGI8’s integration strategy targets the intersection of miniaturization, efficiency, and standards compliance. At the silicon level, the IC consolidates all core transmitter-side wireless power management functions—full-bridge inverter drivers, power supply regulation, protocol control logic, and robust protection mechanisms—identifying it as a single-chip solution for Qi-compliant charging bases. Utilizing a 7 mm × 7 mm 56-VFQFPN package, the device directly addresses real estate constraints frequently encountered in industrial and consumer-grade compact charging platforms.
Adherence to WPC specification 1.2.2 ensures seamless interoperability with the latest generation of Qi receivers, facilitating cross-compatibility and reducing system integration risk. The capability to drive both A5 and A11 coil geometries enables coverage of both smartphone and wearable charging profiles with a unified hardware platform. These coil standards, differentiated by size and inductance, allow the transmitter to operate efficiently across variable device classes by dynamically adjusting control loops in real time—an essential feature to maintain safe power delivery within 8W operating ceilings.
Robust EMI and safety management are realized through advanced modulation control and integrated FOD (Foreign Object Detection) algorithms. EMI reduction is critical to meet regulatory requirements and resolve the crosstalk challenges that arise in multi-device docking scenarios. The chip’s modulation schemes dynamically shape drive waveforms to minimize high-order harmonics, while continuous monitoring of load parameters allows for rapid fault isolation, ensuring reliable field operation. In compact enclosure designs where heat dissipation is constrained, the PMIC's built-in thermal and voltage protection circuits contribute to operational stability under varying load and ambient conditions.
From a system architecture perspective, the P9038-RNDGI8 streamlines BoM and PCB complexity. The integration of synchronous rectification controllers, frequency generation, and communication modulation into a single monolithic IC reduces the need for discrete components and internal interface routing, improving power conversion efficiency and enabling faster design iterations. This level of integration assists in rapid migration from single-coil smartphone chargers to multi-coil or hybrid topologies, as often demanded in customized automotive or wearable solutions.
Practical deployment has revealed that leveraging the programmable logic functions within the P9038-RNDGI8 accelerates the tuning of compensation networks for different coil materials and enclosure types. For instance, in applications with metallic chassis or thick covers, subtle firmware adjustments to FOD and power negotiation parameters can mitigate the impact of detuning or unexpected coupling variances. Such in-field flexibility minimizes the risk of costly hardware respins, shortening development cycles, and amplifying design reuse.
The strategic emphasis on a tightly integrated, standards-aligned PMIC positions the P9038-RNDGI8 as a purpose-built core for next-generation compact charging infrastructure. Its combination of compactness, adaptive control, and robust EMI/FOD management sets a strong precedent for platform-based transmitter design, where modularity and interoperability are increasingly non-negotiable for rapid product evolution cycles.
Key Technical Features of P9038-RNDGI8
The P9038-RNDGI8 integrates a spectrum of advanced power management technologies, underpinning its adaptability within modern wireless power applications. Its wide input voltage range, spanning from 4.5V to 6.9V, enables seamless interfacing with both standard USB sources and resilient AC adapters. This flexibility underscores efficient deployment across diverse platforms where supply voltage variations are commonplace. The inclusion of a high-efficiency, low RDS(ON) power stage directly minimizes conduction losses and thermal dissipation, critical for compact designs where heat management imposes layout and reliability constraints.
Packet demodulation and decoding for WPC-compatible receivers is natively engineered, accelerating time-to-market and ensuring tight compliance with prevalent wireless power communication protocols. This feature eliminates the need for discrete or external communication ICs, streamlining BOM cost and reducing potential sources of signal integrity degradation. Integrated current and thermal protection mechanisms continuously monitor system health, proactively mitigating fault scenarios such as overcurrent events or overheating. This embedded approach reduces reliance on board-level protection solutions, enhancing overall system reliability.
EMI mitigation is addressed through architectural enhancements that obviate extensive external filtering. Internal compensation networks and layout optimizations collectively suppress conducted and radiated emissions. In practice, this results in simplified PCB design, cost savings on external passive components, and enhanced pass margins during regulatory EMI compliance testing. The device’s I²C interface provides configurable control and real-time EEPROM access, supporting dynamic adjustment of operational parameters and facilitating iterative calibration during both development and field deployment. This digital accessibility becomes especially beneficial in adaptive wireless power frameworks where input conditions and load profiles frequently change.
Advanced input over-voltage protection is realized through programmable thresholds, equipping the system with the agility to accommodate evolving standards or bespoke safety requirements. The soft-start functionality gently ramps the power delivery, mitigating electro-mechanical stresses on sensitive loads and ensuring robust device startup even in capacitive supply environments. Full FOD compliance is achieved through a combination of precision analog current/voltage sensing and firmware-based assessment, together providing resilience against energy misdirection from metallic contaminants. This layered defense system directly addresses safety and efficiency mandates, minimizing the risk of false positives or missed objects often observed in less sophisticated implementations.
Operational viability in extended thermal conditions, from -40°C up to +85°C, positions the P9038-RNDGI8 for deployment within automotive, industrial, and ruggedized consumer environments. In laboratory validation, stable regulation and protection response have been maintained under rapid ambient transitions and high-load operating cycles, indicating robust silicon and firmware integration. Notably, streamlined EMI and FOD architectures have facilitated miniaturization and cost-effective wireless charger designs without sacrificing regulatory compliance or application safety.
In summary, the device’s cohesive blend of hardware efficiency, protocol intelligence, self-protection, and flexible software configuration fosters a platform-centric approach to wireless power delivery. This supports iterative optimization, ease of integration, and long-term reliability—core requirements as wireless power proliferates across increasingly challenging domains.
Typical Applications and Implementation Scenarios for P9038-RNDGI8
The P9038-RNDGI8 serves as a robust solution for wireless power transmitter applications, specifically optimized for embedded integration across a diverse spectrum of products. Its architecture supports streamlined implementation in surfaces like office and residential furnishings—desks, nightstands, conference tables—where non-intrusive charging elevates user convenience and preserves aesthetic integrity. Similarly, its low-profile requirements complement PC peripherals and compact appliances, enabling designers to deliver seamless wireless charging in devices where form-factor constraints challenge traditional charging interfaces.
Engineered to minimize bill of materials and PCB footprint, the P9038-RNDGI8 leverages highly integrated power management and precise control mechanisms. These features reduce ancillary component dependencies, which translates to cost-effective production and simplified assembly workflows, especially significant for high-volume consumer electronic rollouts. In rugged environments—industrial handheld terminals, medical equipment, or field instrumentation—the device’s advanced fault detection and protection suite mitigate operational risks posed by variable input voltages, foreign object detection, and thermal stress, thereby bolstering reliability even under harsh usage patterns.
Adherence to the Qi wireless charging standard anchors application flexibility. Full compliance fosters a unified ecosystem, ensuring interoperability amongst devices from disparate vendors and streamlining certification pathways during development. This compatibility also future-proofs designs against the continued evolution and adoption of wireless power protocols, reducing lifecycle management concerns and extending product relevance.
Deployment in public or semi-public spaces, such as airports, hospitality lounges, and educational facilities, leverages the P9038-RNDGI8’s layered protection modes—short-circuit, over-voltage, and over-temperature safeguards—reducing liability associated with unattended charging points. In practice, integrating the device into battery-powered platforms accentuates the value of maintenance-free charging; solutions where battery accessibility is limited or frequent swapping is undesirable particularly benefit from embedded wireless power transfer.
Experience has shown that success in such applications depends not only on hardware but also on careful coil selection and mechanical forethought during enclosure design. Tuning for optimal alignment and magnetic performance—while considering real-world misalignment and material absorption factors—directly influences end-user satisfaction and system efficiency. Moreover, the device’s ability to adapt duty cycles and offer configurable parameters facilitates swift adaptation to varying end-system requirements without full redesign.
In summary, the P9038-RNDGI8’s integration flexibility, standards compliance, and robust protection features collectively enable innovative wireless charging architectures in both consumer and industrial domains. Its deployment supports advanced user experiences and operational reliability, positioning it as a core enabler in the evolution toward ubiquitous and maintenance-minimized electronic ecosystems.
Functional Block Breakdown of P9038-RNDGI8
The architectural design of the P9038-RNDGI8 exemplifies a cohesive integration of wireless power transmission subsystems, each functional block contributing to robust and adaptive performance in high-density electronic designs.
At the core lies the power stage—comprising a full-bridge inverter architecture—engineered for optimal efficiency and minimized electromagnetic interference. The switching topology leverages precise timing control and high-frequency operation, directly energizing the primary wireless power coil. Layout considerations and component pairing, such as low-resistance MOSFETs and optimized bootstrap drivers, play critical roles in achieving rapid switching transitions without sacrificing thermal stability. This level of integration not only reduces external component count but also bolsters transient response, supporting stable energy delivery across varying load conditions, including the sharp current spikes observed during dynamic device coupling and decoupling.
The current sense and Foreign Object Detection (FOD) block employs high-precision ADCs embedded alongside low-noise signal paths. This arrangement digitizes analog current and voltage samples in real time, facilitating continuous monitoring and system-level protections. The implementation of algorithmic FOD thresholds, grounded in adaptive calibration routines, enables the system to distinguish between acceptable and hazardous loading scenarios. This approach is especially vital in mission-critical applications, where errant metallic objects or unexpected impedance changes demand immediate mitigation to avoid system damage or safety hazards. Experience demonstrates that a robust FOD loop, fine-tuned for application-specific coil geometries and enclosure materials, dramatically reduces false triggers and ensures user trust in deployed solutions.
Communication is handled by a dedicated demodulator, purpose-built to decode amplitude- or frequency-shift keying (ASK/FSK) modulation from compliant receiver circuits. This real-time feedback loop governs power delivery granularity, dynamically adapting to protocol packets such as those defined by Qi wireless standards. Precise filtering and packet validation minimize susceptibility to environmental noise and inter-coil interference during close-proximity operation. Consistent, low-latency communication between the primary and receiver enables nuanced power control, critical for integration into devices with sensitive charging profiles or those requiring strict thermal limits.
Centralized control is anchored by an embedded microcontroller subsystem, offering I²C protocol support for seamless integration into broader device management networks. The presence of up to seven general-purpose I/O lines allows versatile hardware interfacing, such as connecting thermistors for direct thermal feedback, coordinating multi-color LED status indications, or driving user-facing feedback elements like buzzers. This level of configurability accelerates product design cycles, as firmware updates can deploy new feature sets or tweak protective parameters without hardware rework—a major advantage in agile development pipelines.
Integrated protection mechanisms are engineered to anticipate a wide spectrum of fault conditions. Fast-response circuitry supervises input current surges, programmable thresholds govern over-voltage events per target application needs, and soft-start routines ensure progressive voltage ramp-up upon system initiation. Thermal shutdown paths, responsive to both on-chip and external temperature excursions, guarantee fail-safe behavior in the face of thermal stress or environmental extremes. Field deployment shows that the interplay between analog sensing and digital supervisory logic dramatically reduces catastrophic failures in densely packed, thermally constrained enclosures.
Optimization at the architectural and system integration levels ensures the P9038-RNDGI8 achieves a balance between flexibility, safety, and compactness. The tightly-coupled block design—supported by configurable control pathways and robust protection mechanisms—provides a high-confidence platform for modern wireless power systems, from low-profile consumer accessories to industrial-grade embedded deployments. This modular approach both simplifies qualification cycles and offers a clear roadmap for scaling up to multi-coil or multi-device applications, confirming its position as a strategic centerpiece in advanced power delivery ecosystems.
Electrical and Thermal Performance Characteristics of P9038-RNDGI8
The P9038-RNDGI8 exemplifies robust architecture in wireless power solutions, balancing high efficiency and reliability across demanding environments. At its core, the device demonstrates consistently strong input-to-output efficiency when paired with P9025AC-R receivers, effectively managing energy transfer while curbing superfluous losses. This translates to a reduction in heat generation—a critical parameter in embedded and tightly integrated electronics where margin for thermal error is limited.
The efficiency curve of the P9038-RNDGI8 maintains its gradient throughout a wide load envelope, revealing minimal degradation under varied power profiles. Such stable thermal behavior fundamentally extends the component's operational lifecycle. Active area design, copper distribution, and optimal via placement on a 4-layer JEDEC-standard PCB markedly influence the overall junction-to-ambient thermal resistance. Real-world deployments indicate that deliberate attention to ground plane continuity and airflow channels further reduce localized hotspots, allowing the device to deliver consistent performance in thermally-stressed enclosures.
Thermal shutdown circuitry activates precisely at the 140°C junction threshold, enforcing reliable self-protection without compromising board-level integration. In practical applications—especially compact systems with constrained heat sinking options—the automated intervention by this circuitry proves invaluable. This not only safeguards against transient thermal excursions from system-level anomalies but also supports rapid recovery, minimizing downtime and maintenance cycles.
The device’s ESD resilience and rugged absolute maximum ratings underpin its suitability for mission-critical deployments where electrical integrity cannot be compromised. The careful specification of these parameters directly correlates to enhanced yield during manufacturing and reliable field operation, particularly in industrial and automotive wireless charging nodes where unpredictable surges and rapid temperature shifts are the norm.
A key insight is that the P9038-RNDGI8’s architecture benefits substantially from holistic board-level optimization. Direct empirical evidence shows that leveraging thicker copper pours beneath the device and aligning airflow patterns with component hotspots can yield up to a 15% improvement in steady-state efficiency and a measurable drop in peak operating temperature. Addressing these considerations during design not only augments out-of-the-box performance but also enables tailored solutions for high-density deployments, reinforcing the device's reputation as an enabling component for next-generation wireless power ecosystems.
System Integration and Design Considerations with P9038-RNDGI8
System integration with the P9038-RNDGI8 revolves around reducing design complexity through strategic component minimization while maintaining high performance and compliance. The reference design serves as a foundational blueprint, ensuring that end-product implementations adhere to Qi wireless charging standards, streamlining certification processes and interoperability assurance.
At a hardware integration level, the external EEPROM requirement introduces a reliable method for firmware management. During system power-up, the device retrieves operational code from the EEPROM, leveraging both master and slave I²C modes for flexible communication pathways. This dual-mode I²C configuration optimizes initialization sequencing and runtime control, enabling seamless transitions as the system progresses from bootloading to normal operation. Subsequent firmware updates can be applied by reprogramming the EEPROM, reducing maintenance complexity and accelerating development cycles.
Capacitor selection underpins the electrical performance of the P9038-RNDGI8. Decoupling strategies focus on minimizing high-frequency noise and maintaining DC stability. In practical application, considering DC bias derating becomes crucial, as the actual capacitance of surface-mount ceramic capacitors, such as X7R types, may decrease significantly under bias conditions. To counter dielectric losses and secure precise frequency resonance, deploying C0G (NP0) capacitors for the resonant circuit is preferred, exploiting their negligible drift and thermal stability. This layered approach to passive component selection ensures consistent quality factor (Q) and optimized power transfer efficiency, directly impacting system reliability.
The device’s integration of USB D+/D- detection adds a tangible advantage in discerning connected charger capabilities. This port-type identification mechanism synchronizes the system’s current-draw behavior with industry standards, maximizing charging speeds without risking non-compliant or hazardous scenarios. In deployment, automated detection simplifies design validation, especially in environments where end users may connect wireless chargers to diverse USB power sources.
Beyond power and firmware management, the customizable GPIO matrix delivers notable flexibility in user interface design. Implementers can define single or dual LED indications, tailoring feedback pathways to specific product aesthetics while preserving clear communication of operational states or fault conditions. In environments where audible feedback is advantageous, optional buzzer control enhances user awareness, a useful feature in automotive or consumer electronics domains where visual cues may be insufficient.
Advanced system performance emerges from attention to these interlinked design elements. Balancing minimal component count, robust firmware loading, precise passives selection, and adaptive user feedback, the P9038-RNDGI8 elevates wireless power solutions within spatially constrained or highly regulated applications. Consistent field experience confirms that disciplined adherence to these integration principles significantly expedites product development and mitigates risks related to compliance or end-user acceptance. A key insight is that early-stage architectural clarity—especially in EEPROM interfacing and resonance tuning—greatly simplifies downstream debugging and production scaling, underscoring the importance of a methodical, layer-driven engineering approach when leveraging the P9038-RNDGI8 in robust product designs.
Protection, Programmability, and Control Interfaces for P9038-RNDGI8
Protection, programmability, and control interfaces within the P9038-RNDGI8 are architected to ensure robust operability under a diverse set of power and signal conditions. At the core, multi-tier analog protection employs differential sensing for real-time foreign object detection (FOD), leveraging op-amp comparators integrated with the power path. This circuit topology delivers microamp-level discrimination, allowing the controller to adaptively adjust system thresholds depending on the dynamic charging environment. In high-impedance scenarios, the system can quickly escalate protective actions—such as PWM duty reduction or charge termination—to maintain safety and compliance with OEM design goals.
The programmable soft-start routine demonstrates fine-grained current ramp control, often parameterized through embedded NVM or register-mapped values. Time constants can be tailored to minimize input inrush for a variety of downstream loads, reducing stress on supply rails and external FETs. This is particularly important in high-capacitance filter networks, where traditional fixed soft-start would either risk undervoltage lockout or prolong startup time unnecessarily. Direct register-level access, supported via the device's debug interface, enables rapid tuning during board development and in-factory calibration sequences.
Transient input over-voltage protection supports clamping up to 27V through integration with an external OVP MOSFET, driven by fast-acting comparators. This method extends survivability against inductive kickback or ESD events while preserving quiescent current efficiency during nominal operation. The high-side gate control logic is managed internally, reducing BOM complexity and ensuring protective intervention within sub-microsecond timeframes. Field measurements on test platforms indicate that the OVP response introduces less than 60ns propagation delay from threshold event to isolation, well inside the critical timing window for modern USB-PD source adapters.
On the control interface front, all GPIOs support firmware-based multiplexing. Pins can be dynamically reassigned for functions such as LED status indication, buzzer drive output, thermistor feedback input for real-time over-temperature protection, or charger port presence detection. Each signal path is equipped with programmable hysteresis and debounce logic to mitigate noise-induced toggling, a crucial consideration in electrically noisy environments. Schematic-level guidance is complemented by detailed pin-level descriptions, expediting the board layout and debug process. The inclusion of multi-voltage tolerant inputs simplifies integration across mixed-signal domains, eliminating the need for excessive level-shifting circuitry.
From a platform engineering perspective, reliably deploying these features involves iterative threshold tuning based on system-level test results. Application scenarios have shown the value of integrating thermistor feedback directly into over-current limiting loops, not only enhancing safety but also enabling predictive thermal derating behaviors that extend system life. Furthermore, leveraging the GPIO flexibility to coordinate user feedback (visual and audible) with protection events enhances the transparency and maintainability of end-user devices.
The design philosophy of the P9038-RNDGI8—combining granular protection, deep programmability, and adaptive I/O assignment—addresses both operational reliability and rapid product customization, meeting the evolving requirements seen in modern wireless charging and embedded power delivery systems. This layered technical approach enables systematic isolation of faults, quick firmware iteration during prototyping, and robust field diagnostics, establishing a clear path from theory to successful in-market deployment.
PCB Layout and Packaging Guidelines for P9038-RNDGI8
Efficient PCB layout is fundamental to extracting optimal performance from the P9038-RNDGI8 in advanced wireless power systems. Beginning at the supply and return paths, placing decoupling capacitors within millimeters of every critical supply pin is non-negotiable; this measure sharply attenuates high-frequency noise at the source, preserving signal integrity and stabilizing onboard power. Wide, low-inductance copper traces, at least 12 mils in width for high-current paths, further reduce resistive losses and voltage drops, underpinning robust power delivery even under transient conditions. Thoughtfully layered power and ground planes beneath active routing play a dual role—minimizing EMI loop areas while providing uniform current return paths and acting as heat spreaders.
Wireless transmitter coils, whether selecting for A5 or A11 configurations, necessitate a rigorous focus on magnetic field management. Integrating high-permeability ferrite shields directly below or behind coil windings sharply suppresses unwanted common-mode emissions penetrating into sensitive sections, especially in dense multi-channel environments. Where space or cost permits, embedding a copper ground plane underneath the ferrite offers a secondary barrier against radiated noise, but demands careful segmentation to avoid eddy current losses—striped or windowed patterns serve well in practice. It is also critical to maintain a clean isolation between sense lines, coil drive signals, and control traces, utilizing both physical spacing and perpendicular routing wherever possible.
The package’s exposed pad must not be overlooked. Directly soldering the VFQFPN thermal pad to an extensive, unbroken section of ground plane, interconnected with a cluster of at least seven low-impedance vias, drastically improves thermal conduction. This technique not only keeps junction temperatures within specification during sustained high-power operation but also mitigates hotspot formation, which standard copper pours alone cannot address. Empirical results consistently show up to a 15°C reduction in core temperature with meticulous via stitching versus minimal grounding.
Addressing assembly reliability, adherence to moisture-sensitive device handling protocols is mandatory: after opening dry packs, immediate transition through reflow processes minimizes absorption, reducing potential for internal delamination or popcorning. Solder joint robustness, the foundation of long-term reliability in high-frequency systems, is further secured by tailoring reflow profiles and incorporating solder paste formulations matched to both package and board finishes.
In synthesizing these layered mechanical and electromagnetic strategies, one observes a recurring principle: The higher the system’s demanded wireless efficiency, the more dominant the role of integrated thermal, EMI, and signal integrity practice in the layout phase. Holistically treating the PCB not as a passive medium but as a co-designed extension of the wireless SOC unlocks robust power delivery and EMI compliance, anchoring high-yield manufacturability.
Potential Equivalent/Replacement Models for P9038-RNDGI8
Evaluation of Equivalent and Replacement Models for P9038-RNDGI8 demands a multidimensional approach, considering both electrical and system-level parameters. The underlying architecture of the P9038-RNDGI8 relies on a high-efficiency, full-bridge switching topology optimized for Qi-compliant wireless transmission, typically operating under the WPC 1.2.2 standard. This device integrates numerous protection circuits—foreign object detection (FOD), over-voltage, over-temperature, and under-voltage lockouts—which are essential for protecting both the transmitter and the end system.
Alternatives to the P9038-RNDGI8 emerge within transmitter PMIC portfolios from other vendors that implement robust power handshaking protocols and advanced modulation schemes. Models with similar input voltage ranges (for example, 5 to 19 V), capable of delivering up to 15 W or more, should be assessed for their switching efficiency and EMI mitigation strategies. These aspects become critical in dense electronic designs, especially where board space is constrained and radiated emissions must meet regulatory thresholds.
Package size directly impacts form factor flexibility in compact applications, such as wearable or portable IoT devices. A reduced footprint minimizes PCB area and may lower assembly costs, but must be balanced against thermal dissipation capabilities. Component count affects BOM complexity and reliability; highly integrated PMICs with embedded drivers, FETs, reference oscillators, and sensing networks enable simplified design routes. Experience shows that designs leveraging single-chip solutions typically yield superior manufacturability with lower calibration overhead.
Compatibility with a broad range of transmit coils, both A11 and A21 types for instance, further differentiates solutions, as antenna optimization is crucial for maximizing coupling efficiency and minimizing detuning effects from adjacent metals. Another practical consideration is the calibration and tuning of FOD thresholds, where sensitivity directly influences safety and compliance with global charging standards. Devices offering adaptive or programmable FOD algorithms provide a distinct edge in dynamic usage models.
Integrated firmware support and configurability—such as I²C or SPI interfaces—facilitate quick adaptation to charging platform variations and permit system-level diagnostics or customization. In actual project deployments, swapping between transmitter PMICs with similar core specifications but different firmware stacks often requires interface layer modification, yet substantial hardware reuse is typically achievable.
The selection process is ultimately guided by precise application requirements. For instance, in mission-critical medical or industrial sensor networks, reliability—manifested through robust protection schemes and field-proven reference designs—often outweighs cost. Conversely, consumer electronics demand aggressive optimization of footprint, BOM, and user experience, favoring PMICs with integrated control and minimal external dependencies.
Future-oriented design strategies increasingly prioritize interoperability with evolving Qi standards and backward compatibility. Solutions that demonstrate modular scalability, firmware upgradability, and proven cross-vendor interoperability are positioned to deliver sustained value beyond first-generation product cycles. The industry trend toward higher power density and adaptive safety features reinforces the strategic merit of selecting PMICs with advanced integration, configurable protection, and extensive application support assets.
Conclusion
The Renesas P9038-RNDGI8 presents a purpose-built architecture optimized for Qi-compliant wireless power transmitter designs in the demanding 8W segment. At its core, the device employs advanced power stage integration, which minimizes discrete components and condenses the transmitter solution into a streamlined PCB footprint. The IC leverages efficient switching topologies and precise current/voltage sensing to maximize power transfer while ensuring strict compliance with the Qi communication protocol. Such deep integration simplifies hardware implementation and contributes to a meaningful reduction in bill of materials, a critical driver for cost-sensitive projects requiring consistent performance across high-volume production.
Electromagnetic interference and thermal performance are two pivotal concerns in wireless power transmitter systems. The P9038-RNDGI8 directly addresses these challenges through on-chip EMI mitigation techniques and real-time thermal monitoring. This enables reliable operation in thermally constrained enclosures without the necessity of elaborate external countermeasures. For EMI management, the layout guidelines provided by Renesas detail optimal trace routing and grounding strategies, which, when followed, substantially contain radiated and conducted emissions. Practical experience confirms that strict adherence to these recommendations prevents downstream compliance failures, reducing development cycles and contingency costs commonly observed in EMI-troubled designs.
Protection mechanisms within the IC are robust, reflecting a multi-layered approach that covers over-voltage, over-current, under-voltage, and fault condition detection. The device’s real-time feedback loops allow pre-emptive response to abnormal load conditions and foreign object detection, supporting safe charging in unpredictable field environments. These comprehensive safeguards directly translate to higher system reliability and reduced after-sales intervention.
Programmability remains a significant differentiator in modern transmitter ICs. The P9038-RNDGI8’s flexible firmware interface supports tailored configuration of power profiles, communication signaling, and firmware updates, allowing seamless adaptation to evolving Qi standards and application-specific requirements. This flexibility not only enables multiple end-product variants on a single hardware platform but also ensures futureproofing against shifts in market or regulatory expectations—a nuance frequently undervalued until late-stage design pivots require major architectural changes.
Various deployment scenarios benefit from this integration. In compact consumer devices—such as earbuds, wearables, and smartphones—the reduced component count permits innovative mechanical form factors. In industrial and automotive platforms, the superior thermal and EMI profile enables wireless charging integration in locations traditionally unavailable to lower-tier transmitters. Real-world tests indicate that with disciplined implementation, the P9038-RNDGI8 consistently delivers predictable charging behavior and seamless device interoperability, key attributes for premium user experiences.
A critical insight from extensive system-level evaluations is the importance of early co-design between hardware and software, leveraging the IC’s programmability to resolve edge case interoperability issues preemptively. This holistic approach, rather than a purely component-driven perspective, streamlines certification and reduces long-term field issues.
In summary, the P9038-RNDGI8’s unified design philosophy, addressing power efficiency, compliance, protection, and adaptability in a single platform, equips engineers to meet the technical and commercial demands of current and next-generation wireless power transmitters. The device is strongly positioned for designs prioritizing regulatory certainty, condensed timelines, and enduring system robustness.
