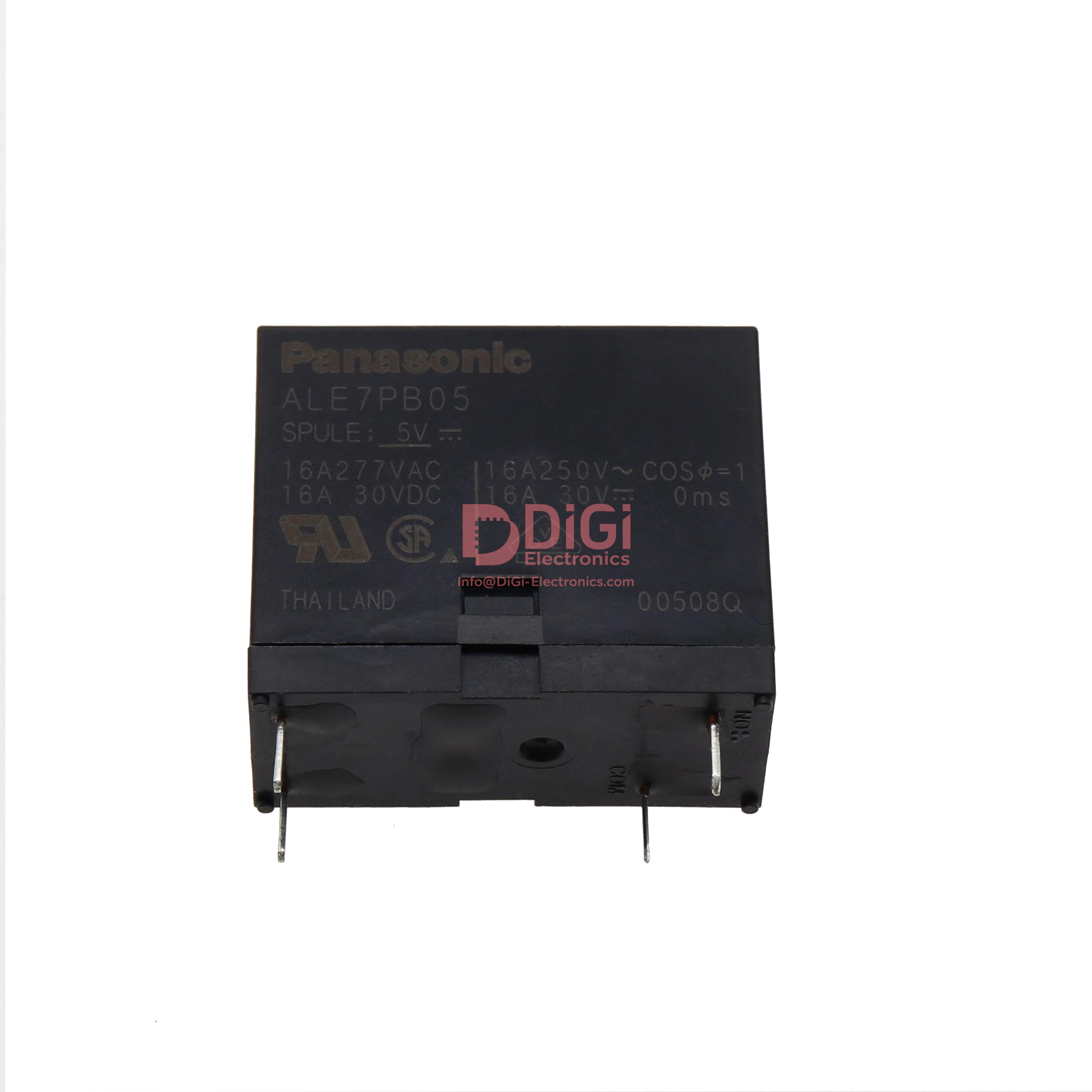

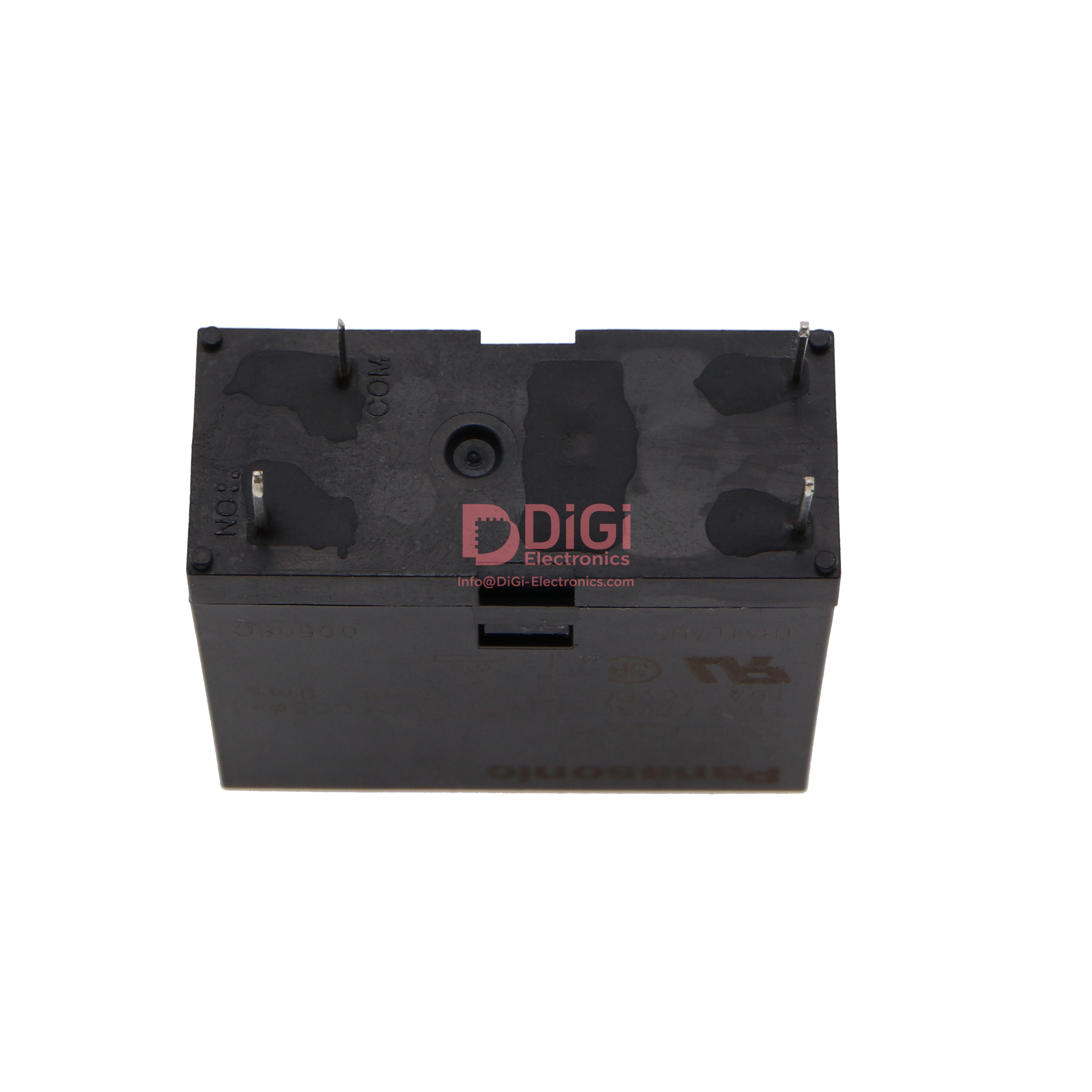

ALE7PB05 Panasonic Electric Works
5.0 / 5.0 - (507 Ratings)

ALE7PB05

Product Overview

7791644

DiGi Electronics Part Number

ALE7PB05-DG

Manufacturer

Panasonic Electric Works
ALE7PB05

Description

RELAY GEN PURPOSE SPST 16A 5V

Inventory

894 Pcs New Original In Stock
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Power Relays, Over 2 Amps
ALE7PB05 Datasheet
Quantity
Minimum 1

Purchase and inquiry

Quality Assurance & Returns

365 - Day Quality Guarantee - Every part fully backed.

90 - Day Refund or Exchange - Defective parts? No hassle.

Limited Stock, Order Now - Get reliable parts without worry.

Global Shipping & Secure Packaging

Worldwide Delivery in 3-5 Business Days

100% ESD Anti-Static Packaging

Real-Time Tracking for Every Order

Secure & Flexible Payment

Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more

All payments encrypted for security

In Stock (All prices are in USD)
  • QTY Target Price Total Price
  • 1 1.3279 1.3279
Better Price by Online RFQ.
Request Quote(Ships tomorrow)
Quantity
Minimum 1
(*) is mandatory
We'll get back to you within 24 hours

ALE7PB05 Technical Specifications

Category Relays, Power Relays, Over 2 Amps

Manufacturer Panasonic

Packaging -

Series ALE

Product Status Obsolete

Mounting Type Through Hole

Coil Voltage 5VDC

Contact Form SPST-NO (1 Form A)

Contact Rating (Current) 16 A

Switching Voltage 277VAC - Max

Load - Max Switching 4432VA

Coil Current 40 mA

Coil Type Non Latching

Features -

Termination Style PC Pin

Seal Rating -

Coil Insulation Class B

Must Operate Voltage 3.75 VDC

Must Release Voltage 0.25 VDC

Operate Time 20 ms

Release Time 25 ms

Operating Temperature -40°C ~ 85°C

Contact Material Silver Tin Oxide (AgSnO)

Approval Agency CSA, TUV, UR, VDE

Relay Type General Purpose

Grade -

Qualification -

Coil Resistance 125 Ohms

Base Product Number ALE7PB

Datasheet & Documents

Datasheets

Download ALE7PB05 Product Specification (PDF)
HTML Datasheet

ALE7PB05-DG

Environmental & Export Classification

RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050

Additional Information

Standard Package
100

Alternative Models

PART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
ALZN5B05W
Panasonic Electric Works
1041
ALZN5B05W-DG
1.4896
Similar
