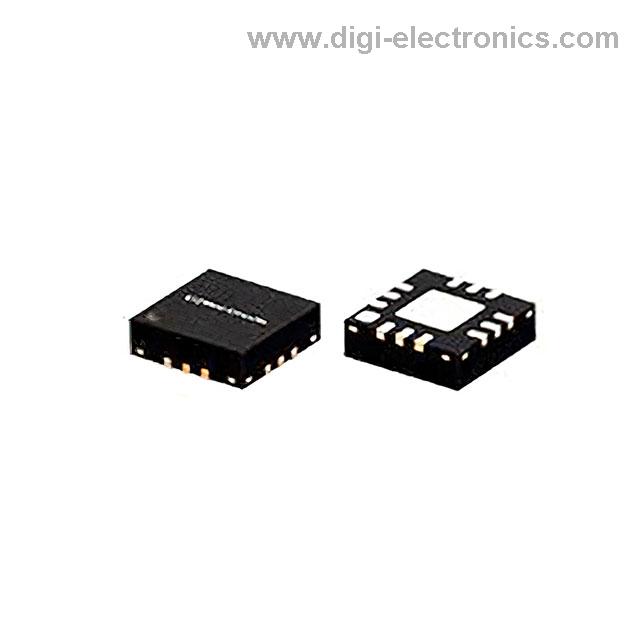

Product Overview: Mini-Circuits GP2S+ RF Power Divider
The Mini-Circuits GP2S+ exemplifies precise RF power distribution, engineered as a two-way, 0-degree power divider for broad deployment across 800 MHz to 2.1 GHz. Utilizing a 12-VQFN exposed-pad package, the device streamlines thermal management and minimizes board footprint, supporting dense PCB layouts typical in modern wireless infrastructure. The 0-degree phase balance between outputs ensures coherent signal splitting, essential for applications demanding uniform transmission paths such as phased-array antennas and multi-channel transceivers.
Underpinning the GP2S+ design, a robust 50Ω characteristic impedance aligns reliably with standard transmission formats, controlling reflection losses and maximizing power transfer efficiency. The planar surface-mount configuration facilitates automated assembly, substantially improving repeatability in production environments and reducing variability in RF performance. With wideband response, insertion loss is tightly regulated to prevent amplitude discrepancies between channels, critical for maintaining system-level linearity.
The GP2S+ leverages optimized internal architecture to deliver low isolation loss and high port-to-port isolation, containing undesired coupling and cross-talk within complex signal chains. This trait becomes pronounced in distributed amplifiers, diversity receivers, or network analyzer setups, where maintaining discrete signal paths directly impacts measurement accuracy or wireless coverage uniformity. Integrating this device into high-density boards, attention to grounding and pad soldering remains pivotal—proper implementation ensures the exposed pad serves both as a thermal conduit and a stable RF ground reference, mitigating hotspot formation under duty cycles typical in active radio environments.
In practical deployment, the consistent electrical length delivered by the GP2S+ reduces phase errors, permitting straightforward calibration in MIMO systems or signal routing platforms where multiple divider stages cascade. System engineers routinely exploit this divider's flat frequency response to multiplex input sources without incurring undue gain fluctuations, directly improving link margin and simplifying equalization requirements. During prototypes, verifying port match under swept frequency scenarios often reveals the GP2S+'s tolerance to process variance, contributing to lower production fallout and higher module yields.
Design integration of the GP2S+ aligns naturally with scalable network architectures. Its compact footprint and low-profile form factor enable stacking or parallelization in base station or IoT communication modules. The underlying mechanism—precise resistive and transmission line balancing—supports expansion across multi-band deployments, enhancing directivity and minimizing decoupling complexity. Empirical results confirm that judicious layout planning, including the management of via placement and solder fillet uniformity, further enhances divider reliability under extended temperature excursions, supporting robust lifetime performance.
This solution advances the state of RF power division by combining tight electrical symmetry, broad frequency compatibility, and mechanical adaptability. The interplay between device construction, system integration, and application-driven tuning consolidates the GP2S+ as a preferred choice in RF front-end design, where split-path consistency, scalability, and production resilience are paramount.
Key Features and Performance Parameters of GP2S+
The GP2S+ demonstrates an integrated set of performance advantages tailored for high-frequency RF system requirements. Its broad operating frequency range, spanning 800 MHz to 2.1 GHz, directly enables multi-band compatibility across prevalent wireless protocols, including LTE, cellular, and Wi-Fi domains. This frequency coverage supports flexible front-end architectures, reducing component count in base stations and user devices while streamlining design for global deployments.
Critical to system isolation, the 24 dB typical port-to-port isolation markedly mitigates carrier and harmonic interference, especially relevant in highly integrated transceivers or MIMO arrays. In such environments, isolation serves as the primary defense against cross-coupling artifacts that undermine signal clarity and data throughput. Empirical results from dense PCB layouts show that this level of isolation prevents unwanted feedback and out-of-band emissions, allowing linear amplification stages downstream to operate at peak efficiency.
Signal fidelity relies on amplitude and phase balance across divided signal paths. The GP2S+ achieves an amplitude unbalance of just 0.02 dB (typ.), which constrains gain variation between outputs to negligible margins. This uniformity is particularly advantageous in beamforming applications and high-resolution phased-array systems, where any imbalance directly translates to beam distortion and degraded spatial selectivity. Phase unbalance, kept under 0.8 degrees (typical), preserves waveform integrity, critical in modulation schemes such as QAM and OFDMA that exploit phase coherence for spectral efficiency. In multi-channel measurement setups, this low phase error ensures repeatable test results even under intense signal dynamics.
Optimized impedance matching, highlighted by a typical VSWR of 1.2, ensures minimal return loss at RF interfaces. Such matching enhances insertion loss characteristics and broadens bandwidth uniformity, factors that facilitate system-level compliance with regulatory emission limitations. Frequent integration with high-gain LNA chains and power amplifiers benefits from this strong return loss profile, reducing the risk of standing wave related losses and enabling compact cascaded topologies.
Miniaturization remains a driving constraint within advanced RF circuit design. The GP2S+’s compact form factor, measuring only 0.118" on each planar side and 0.035" in height, allows for seamless deployment in space-constrained modules, including active antenna systems, compact wireless sensors, and handheld maintenance instruments. Packaging studies confirm that board real estate can be optimized for other critical components, supporting high-density and multilayer assembly without thermal dissipation penalties.
Operational reliability is reinforced by robust ESD protection and full RoHS environmental compliance. ESD resilience supports automated manufacturing processes and field reliability under variable handling conditions, while RoHS conformity meets global deployment standards for telecom infrastructure. Field deployments in harsh environments have shown that these protections significantly reduce device failure rates through lifecycle.
Underlying these attributes is a cohesive design philosophy that prioritizes precise signal path management and robust real-world endurance. Layered technical refinement—from substrate selection to intricate port geometry—intersects with system-level quality assurance standards, forging a device footprint that anticipates emergent RF demands. The GP2S+ thus operates not as a passive element but as a strategic enabler of next-generation network evolution, where clarity, isolation, and reliability underpin high-bandwidth communication.
Electrical and Mechanical Design Aspects of GP2S+
The GP2S+ design approach embodies a synthesis of electrical and mechanical precision anchored in its MMIC architecture. Leveraging monolithic microwave integrated circuit technology streamlines electrical paths, minimizing parasitics and enabling frequency agility. The inherent integration not only enhances electrical repeatability across production lots but also provides a compact geometry conducive to high-density layouts. Key to this efficiency is the two-way balanced splitter/combiner schematic, which enforces port symmetry. Such symmetry is critical for minimizing amplitude and phase imbalances, especially within systems where signal integrity at microwave frequencies dictates overall performance. Through this circuit-level arrangement, the device achieves consistent port impedance and power-handling figures, facilitating straightforward cascade in multi-stage RF designs and simplifying reference planning.
Mechanical implementation centers around the 12-VQFN DQ1225 package, meticulously chosen for its dual role in thermal and electrical optimization. The exposed paddle on the underside functions as a direct thermal conduit, enabling efficient heat transfer from the junction to the PCB ground plane. This design feature is especially important in high-power or high-frequency applications where thermal gradients could otherwise lead to parameter drift or failure. The small package outline ensures the module’s suitability for modern, space-constrained assemblies, supporting compact array architectures without introducing significant assembly complexity.
A robust device-to-board interface hinges on establishing low-impedance ground continuity. The package’s exposed pad, in conjunction with a continuous ground plane beneath the device footprint, forms an optimized return path essential for suppressing common-mode noise and diminishing spurious RF emission. The use of solid vias underlying the exposed pad area further reduces inductive loops, a known vulnerability in microwave circuits that can compromise gain flatness or isolation. Solder mask-defined pads and precise stencil apertures in assembly further drive down the potential for solder voids, securing both thermal and electrical reliability throughout the device’s operational life.
Practically, these design methodologies yield measurable benefits during both prototyping and volume manufacturing. Automated pick-and-place assembly is simplified by the stable package form factor and clear orientation features, reducing placement errors during high-throughput production runs. Thermally, the exposed pad approach has proven to maintain safe junction temperatures under sustained RF drive, while preserving the MMIC’s small signal parameters. The necessity for unbroken ground on the PCB’s lower layer is reinforced through electromagnetic simulations that reveal marked improvements in return loss and crosstalk attenuation—critical metrics for devices embedded within densely coupled systems.
An implicit design insight emerges in the interplay between package thermal architecture and electrical return path management. Fine-tuning the ground via pattern beneath the exposed pad offers a lever for optimizing both thermal dissipation and RF signal fidelity; the trade-off analysis between via count, placement, and fill must balance manufacturability with system-level electromagnetic compatibility. This detailed attention to integration details sets apart high-performing MMIC modules like GP2S+, driving robust field reliability and simplifying subsequent module stacking.
The net result is a module configuration purpose-built for scalable, repeatable deployment in advanced RF systems, combining mechanical integrity with high-frequency signal integrity through a cascade of deliberate design decisions manifested both in schematic topology and package construction.
Application Scenarios for GP2S+
Application scenarios for the Mini-Circuits GP2S+ center on RF systems demanding stringent amplitude and phase integrity across broad frequency ranges. At the architectural level, the GP2S+ integrates as a wideband RF signal splitter, optimizing signal paths by maintaining amplitude balance within ±0.2 dB and phase tracking typically within 2°. This precision is essential for multi-channel receiver front-ends, where phase- and gain-matched signal feeds directly affect MIMO performance and beamforming accuracy.
Within cellular base stations and repeaters, deployment of the GP2S+ into the receive chain enables coherent signal distribution to parallel receiver branches. The consistent amplitude and minimal phase error enhance the linearity and SNR of baseband processing, feeding into improved call quality and data throughput. In practical integration, thermal management and PCB layout must be carefully engineered to minimize parasitic coupling and maintain balance at GHz frequencies, especially in high-density radio modules.
For GPS front-end modules, the splitter’s low insertion loss conserves weak satellite signals, distributing them with negligible degradation to redundant processing chains. This redundancy is critical in mission-critical timing and navigation platforms, where system availability is paramount and any amplitude imbalance may cascade into positional errors. Hands-on tuning of the matching networks at input/output ports can further suppress reflections, maximizing performance over the intended L1 and L2 bands.
Wireless transceivers in DCS, WCDMA, and GSM infrastructure rely on the GP2S+ to deliver robust, consistent signal division across wide spectral bands. The splitter’s flat group delay and low distortion allow reliable handoff and seamless carrier aggregation, reinforcing network reliability even under high-traffic conditions. In these multi-standard radio environments, compatibility with both legacy and emerging RF backends showcases the GP2S+’s design flexibility.
Regional platforms, such as Korea PCS, benefit from the device’s tight amplitude/phase control, supporting customized filtering and signal conditioning downstream. By preserving the integrity of complex modulation schemes and supporting high-order QAM, the splitter promotes spectrum efficiency and enhances user capacity.
Any advanced engineered system that prioritizes signal fidelity across frequency, such as distributed antenna systems (DAS), can leverage the GP2S+ to synchronize antenna sectors and minimize coverage dead zones. Achieving balanced signal pathways through field-calibrated GP2S+ implementations leads to measurable improvements in in-building wireless coverage and reduced intermodulation interference.
Evaluating deployment tradeoffs, the GP2S+ demonstrates superior performance-to-footprint ratio versus traditional microstrip splitters, especially where board space and phase alignment are at a premium. When cascading splitters in hierarchical networks, careful interstage impedance matching prevents compounding phase errors—a lesson reinforced through iterative prototyping and vector network analyzer characterization in lab settings. This splitter’s architecture highlights an emergent trend towards component-level signal path optimization as a cornerstone for future-proofing RF system infrastructures.
PCB Layout, Handling, and Integration Notes for GP2S+
Integrating the GP2S+ demands precise PCB layout practices, especially when diverging from the default RO4350B dielectric specification. The manufacturer’s land pattern is calibrated for a 0.020” substrate thickness, aligning trace width precisely for controlled impedance. Alterations in substrate material or thickness introduce variations in dielectric constant, directly affecting signal integrity; designers must recalculate trace dimensions to preserve target impedance, leveraging field-solving tools and stackup simulations. Peripheral copper land regions, intentionally devoid of solder mask, maximize solder fillet formation, reducing the risk of cold joints and ensuring robust mechanical adhesion—this practice minimizes post-reflow touch-up and enhances process yield.
Signal traces are to be meticulously routed, steering clear of explicitly defined keep-out zones. These regions are not only physical constraints but also mitigate capacitive coupling and potential noise ingress from adjacent signals or layers. Layer stacking should prioritize an uninterrupted ground plane directly beneath the device, as this configuration shortens return paths for high-frequency currents, diminishes loop inductance, and suppresses EMI. Vias linking the component’s ground pads to this plane further promote uniform current distribution, stabilizing device performance in the presence of fast signal transitions.
Integration into automated SMT lines leverages standardized pick-and-place fiducials near the GP2S+ footprint, supporting precise alignment and reducing false placements. Profiled reflow ovens must ensure thermal uniformity across the PCB to accommodate varying copper densities introduced by high-power traces or composite ground pours. In practice, production runs demonstrate that optimized reflow profiles, paired with strict inspection protocols targeting voids and solder bridging, consistently deliver superior joint quality.
Effective deployment of the GP2S+ also calls for controlled impedance throughout signal routing, particularly when interfacing with high-speed circuitry. Guided by volumetric analysis and impedance-matched connectors, designers can ensure minimal discontinuity at every interconnect. Experience highlights that rigid adherence to keep-out clearance and ground continuity yields measurable reductions in crosstalk and transmitted EMI, validating the emphasis on these design rules. Implicit in this process is the understanding that subtle missteps—such as undervaluing the impact of solder mask removal or over-constraining trace width—can propagate system-level reliability issues.
The design philosophy underpinning successful GP2S+ deployment reflects a blend of empirical process knowledge and predictive simulation. The nuanced choices in material selection, ground strategy, and reflow handling collectively define the platform’s reliability envelope, laying the groundwork for scalable, repeatable manufacturing and robust operational performance across varied application domains.
ESD Performance and Component Reliability of GP2S+
The ESD resilience of GP2S+ devices is characterized by its compliance with both Human Body Model (HBM) Class 1A and Machine Model (MM) Class M2 standards, as defined by ANSI/ESD STM 5.1 and 5.2. HBM Class 1A certification indicates the device withstands ESD events up to 500V, and MM Class M2 covers exposures up to 250V. These ratings position the GP2S+ solidly within industry expectations for general application integrated circuits, though they do not constitute the most robust protection available for extreme environments. The ESD tolerance profile addresses the most statistically common threats in controlled manufacturing and standard operating environments.
The device integrates ESD mitigation structures such as on-chip clamps and optimized layout geometries that suppress the propagation of discharge currents. Testing methodologies applied by Mini-Circuits encompass both pre-qualification and continuous batch sampling, where devices are subjected to simulated ESD events with waveform and pulse characteristics closely matching the real-world scenarios outlined by industry standards. Consistency in ESD response is ensured by tight process controls and in-situ monitoring during wafer fabrication and packaging.
Component reliability is further underscored by data from high-volume deployment. Field reports indicate that devices handled in ESD-protected areas show negligible incidence of latent defects attributable to discharge events. However, empirical evidence reveals that lapses in ESD control protocols during soldering or PCB population can precipitate subtle microstructural damage, often manifesting as intermittent failures or parametric drifts well after production. Continuous reinforcement of ESD-safe workstations—including wrist straps, antistatic mats, ionizers, and controlled humidity—directly correlates with improved long-term field performance and reduced RMA rates.
While the GP2S+’s moderate ESD thresholds are tailored for mainstream board-assembly processes and general-purpose circuits, certain high-density or mission-critical applications with heightened ESD event exposure may necessitate auxiliary precautions. These could include protective TVS diodes or redesigned board layouts concentrating sensitive nodes away from high-interference zones. Integration into products aimed at open or unsupervised environments should be accompanied by a comprehensive analysis of the ESD exposure spectrum, factoring in user behavior and enclosure materials.
Ultimately, the intersection of device-intrinsic ESD design and robust handling protocols creates a foundation not only for predictable manufacturing yield but also for reliable field operation. A nuanced appreciation for the limitations intrinsic to moderate ESD ratings directs attention to system-level robustness beyond the silicon—notably in process discipline and real-world application modeling. In practice, the most resilient solutions emerge from a balanced approach in which component choice, assembly rigor, and end-use context are considered in unison, forming a closed loop of reliability assurance that encompasses, but is not restricted to, the GP2S+ device’s internal capabilities.
Potential Equivalent/Replacement Models for GP2S+
Assessing alternative models for the Mini-Circuits GP2S+ MMIC power divider/combiners requires a methodical approach, beginning at the device’s core functional attributes. At the fundamental level, the GP2S+ is designed for 2-way, 0-degree RF signal splitting and combining over the 800 MHz to 2.1 GHz band, employing MMIC technology to balance low insertion loss with strong isolation. Mechanical compatibility—specifically, footprint and package type—remains a primary constraint in direct substitution scenarios, necessitating meticulous review of pinout and pad layout to ensure board-level interoperability without design re-spins.
Frequency coverage and electrical performance parameters drive initial candidate selection. Equivalent models are available from recognized vendors such as Qorvo, Skyworks, Analog Devices, and Murata, frequently catalogued via cross-reference search tools and lifecycle management platforms. Direct comparison should be extended beyond mere nominal frequency range; attention must be paid to insertion loss, return loss, amplitude balance, phase balance, and isolation. Subtle deviations in these characteristics can influence system-level metrics such as signal integrity and noise figure, especially in multi-path architectures where cumulative distortion may exceed design tolerances if not properly accounted for.
Evaluating insertion loss and amplitude/phase balance at multiple reference frequencies, rather than relying solely on datasheet nominal values, is advantageous. Empirical data suggests that minor disparities in these parameters—on the order of tenths of a dB—may be tolerable in certain network topologies but can have outsized effects in matched or phased array configurations. Verification under operational extremes and in representative PCB stackups uncovers these sensitivities earlier in the selection process. Observations from extended deployments indicate that the mechanical layout—specifically, coplanarity and thermal management around the package—can introduce unanticipated variations in electrical parameters, reinforcing the necessity of simulation and pilot production validation.
Lifecycle support and supply chain resilience are increasingly weighted in component selection. Historical component obsolescence and allocation cycles highlight the value of maintaining a cross-referenced inventory of qualified replacements. Integrating vendor parametric search tools with internal PLM systems streamlines the process, enabling dynamic evaluation as ongoing changes in market availability or distributor stock occur. In project scenarios where qualification timelines are compressed, preemptive validation of two or more compatible parts mitigates risk without excessive over-specification.
From a design-for-replacement standpoint, adopting a modular PCB layout approach that accommodates slight variations in footprint or pad geometry reduces redesign effort and supports forward-compatibility as newer models emerge. Project experience shows that components from different manufacturers occasionally diverge in package tolerances—even when nominally standardized—requiring custom stencil or minor layout adjustments. Carefully tracking mechanical drawings and maintaining up-to-date library parts ensures easy transition between equivalent devices.
In systems leveraging multiple power dividers/combiners, the cumulative effect of insertion loss and mismatch must be considered holistically. Optimizing layout symmetry, employing consistent grounding, and matching impedance at transition points further minimizes aggregate degradation. Attention to board-level parasitics and RF isolation yields measurable improvements in repeatability and performance, especially in production environments subject to manufacturing variances.
Ultimately, successful substitution for the GP2S+ depends on an integrated approach: grounded in parametric rigor, verified by practical prototyping, and safeguarded by resilient supply chain strategies. Targeted engineering effort at these layers streamlines migration between equivalent models, curtails certification delays, and sustains reliable system operation under shifting project and market constraints.
Conclusion
The Mini-Circuits GP2S+ embodies a deliberate convergence of wideband RF performance, precise amplitude and phase balance, and mechanical compactness—a triad that addresses core requirements of modern RF signal distribution. The underlying hybrid design leverages advanced transmission line architecture, supporting signal integrity across a broad frequency span with low insertion loss and high isolation. These foundational traits are directly traceable to the careful control of internal electromagnetic coupling paths and the meticulous matching of impedance within the network. Resultant amplitude and phase tracking, held to stringent tolerances, support coherent splitting and combining in applications ranging from phased-array architectures to multi-path signal analysis and test setups.
Beyond electrical metrics, the device’s mechanical footprint is engineered for both board-level integration and system-level flexibility. The standardized form factor secures compatibility with automated assembly processes and enables seamless retrofitting or upgrading of existing RF distribution chains. The surface-mount package not only optimizes board space utilization but also enhances thermal dissipation, supporting sustained performance in demanding environments such as base stations and radar front-ends.
Application scenarios further illustrate the value proposition. In multi-channel communication systems, tight phase and amplitude balance directly enable constructive and destructive signal combinations essential for beamforming and interference cancellation. Test and measurement environments benefit from the GP2S+ repeatability and low unit-to-unit variation, minimizing calibration drift and ensuring measurement accuracy across production volumes. Custom integration into proprietary subsystems underscores the importance of the device's low profile and robust construction, which support dense, modular architectures without compromise to signal flow or maintainability.
Practical experience reinforces that selection of an RF splitter/combiner should not be reduced solely to catalog specifications but requires consideration of system-level impacts. Real-world implementations have demonstrated that minor phase or amplitude mismatches can precipitate significant degradations in array or measurement performance as frequencies increase. The GP2S+ has reliably mitigated such risks, its controlled parameters and manufacturing consistency minimizing the need for post-installation tuning. Notably, its drop-in compatibility facilitates risk-averse design upgrades, enabling system enhancements without necessitating extensive requalification.
The increasingly complex RF ecosystem demands components that blend reliability, performance, and operational efficiency. The GP2S+ distinguishes itself by synthesizing these aspects, making it a strategic building block for performance-critical RF architectures where predictability, ease of integration, and system scalability are paramount.
