Product Overview of PIC16F18346-I/SS Microchip Technology
The PIC16F18346-I/SS microcontroller stands out within the 8-bit portfolio by integrating robust computation, flexible memory resources, and advanced power-saving capabilities. Its underlying RISC core, precisely tailored for high C compiler efficiency, enables deterministic code execution and reduces overall cycle counts, thus facilitating streamlined firmware development and predictable real-time behavior. The architecture allows rapid context switching, benefiting interrupt-driven designs and precise timing applications.
This device brings a balanced combination of program Flash memory (28KB), on-chip SRAM (2KB), and EEPROM (256 bytes), accommodating firmware architectures that demand persistent configuration and dynamic data storage. The ratio of program memory to RAM is engineered for scalable code modularity, supporting both feature-rich applications and lean, time-critical routines. Deploying the microcontroller in industrial automation, sensor interfacing, and consumer control modules has validated its stability across memory-intensive tasks and rolling firmware updates. Reliable EEPROM access enables calibration data retention and device personalization even under frequent power cycles.
Optimized for operational efficiency, the PIC16F18346-I/SS leverages Microchip’s eXtreme Low Power (XLP) technology. Through the use of advanced clock gating, fine-grained peripheral control, and selectable sleep modes, the device achieves sub-microamp standby currents that extend battery lifespans in field-deployed units. When integrating this microcontroller into portable devices, consistently low active and sleep-state power consumption facilitates compact thermal design and wider enclosure flexibility. In remote sensing arrays, the XLP features ensure minimal downtime while safeguarding data integrity during power transitions.

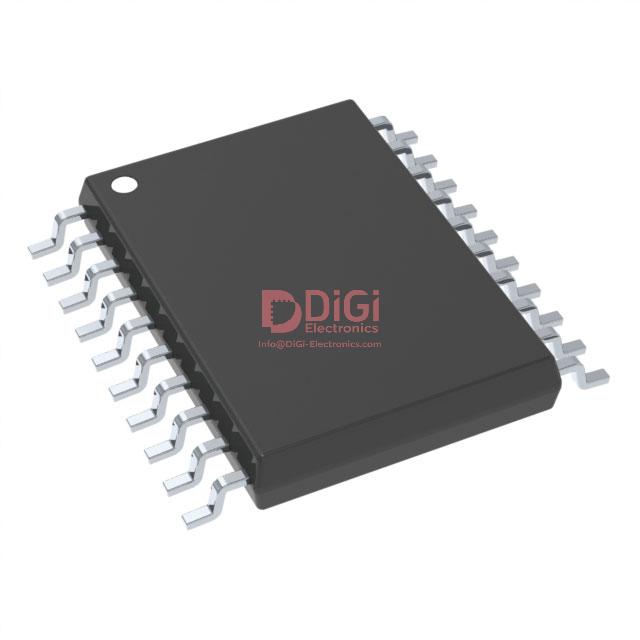

Physical integration is streamlined by its 20-SSOP footprint, supporting dense PCB layouts where board space presents a constraint. The extended operating temperature range (–40°C to +125°C) permits deployment in industrial environments, outdoor instrumentation, and automotive subsystems without supplemental thermal management. Experiences in harsh condition validation reveal that the device maintains clock accuracy and memory retention even under rapid temperature cycling.
From a systems engineering perspective, leveraging this microcontroller in mixed-signal designs enables efficient peripheral orchestration and robust I/O management. Its compatibility with standard toolchains, auto-calibration analog features, and flexible pin mapping contribute to shortened prototyping cycles and consistent field reliability. The device's feature set supports rapid reconfiguration and design iteration, a crucial advantage in embedded system deployment where time-to-market and long-term maintainability must be balanced.
Overall, the PIC16F18346-I/SS provides a foundation for highly reliable, low-power embedded solutions, offering nuanced design tradeoffs between performance, scalability, and environmental resilience. Its embedded-centric optimizations and proven field capabilities position it as a preferred choice for applications where longevity, efficiency, and adaptability are paramount.
Core Architecture and Performance Features of PIC16F18346-I/SS
The PIC16F18346-I/SS integrates an advanced mid-range CPU core optimized for deterministic execution and high reliability in embedded system design. Its instruction set contains 48 distinct operations, algorithmically selected to balance code density with execution throughput. The microcontroller’s hardware-driven interrupt controller and the deeply pipelined, 16-level hardware stack jointly minimize interrupt latency, ensuring immediate context switching. Overflow and underflow detection mechanisms, coupled with programmable reset responses, serve as embedded safety features to preserve data integrity—even amid complex interrupt cascades or faulty firmware execution. Efficient stack management directly benefits applications where nested interrupts and recursive routines are common, mitigating risks of stack corruption.
Memory access is augmented through the implementation of dual 16-bit file select registers enabling granular control over RAM and EEPROM addressing. This layered memory architecture provides seamless support for both direct and indirect addressing modes, permitting flexible code structures and fast context switching. For firmware engineers working on code modularity or bootloader implementations, these addressing modes facilitate dynamic memory allocation, contributing to application scalability and facilitating seamless runtime upgrades.
Clock management solutions on the PIC16F18346-I/SS present operational flexibility across a broad frequency range, from DC up to 32 MHz. The inclusion of both internal oscillators and accommodation for external clocks allows for precise timing in critical applications such as industrial motor controllers or digital sensor hubs. Minimal instruction cycle times—down to 125 ns—empower designers to meet stringent timing constraints in low-latency scenarios without sacrificing instruction coverage or peripheral responsiveness.
Automatic context saving during interrupts is a key architectural strength, offloading software from manual register manipulation and reducing overall firmware complexity. In practice, this capability streamlines high-frequency event servicing, often encountered in signal processing tasks and time-critical control loops. The improvement in firmware overhead directly translates to system-level gains in determinism and resource efficiency, particularly vital for applications under real-time operational guarantees.
Distinctively, the PIC16F18346-I/SS synthesizes these mechanisms into a cohesive platform for robust, reliable edge devices. The integration of error detection in stack operations and flexible memory addressing demonstrates a deliberate balance between hardware safety and programming versatility. Tight synchronization between clock sources and instruction cycles, combined with advanced interrupt logic, delivers consistent throughput even as system complexity scales. This architecture is strongly positioned to address demanding scenarios in precision instrumentation, closed-loop control, and modular application firmware, supporting both rapid prototyping and long-term product stability.
Memory Structure and Data Handling in PIC16F18346-I/SS
Memory architecture in the PIC16F18346-I/SS is engineered for maximum resource efficiency within constrained microcontroller environments. Flash memory, provisioned at 28KB, not only houses application code but also accommodates bootloader segments and updatable firmware modules, supporting field upgradability and security. Organization into page-erasable segments enables fine-grained memory manipulation and robust programmability, reducing wear and update collision risks in iterative deployments.
SRAM resources, sized at 2KB, offer a stack for dynamic context saving and efficient management of local and global variables during complex interrupt scenarios. Stack depth and fast access are ensured through physically separated SRAM regions, enabling simultaneous handling of nested interrupts without memory contention. Careful allocation of runtime buffers and variables to different SRAM sections underpins system stability, especially when operating in low-power or latency-sensitive profiles.
EEPROM, with its 256-byte allocation, features byte-level write and read capabilities, optimizing it for calibration constants, persistent state flags, or historical event logs. The independence of EEPROM from the system clock allows for non-intrusive background writing, permitting critical real-time routines in Flash or SRAM to execute uninterrupted during data retention tasks. Robust wear-leveling algorithms extend EEPROM lifespan when utilized for frequent updates on system parameters or device histories, a common requirement in fielded industrial nodes.
The banked data memory organization further elevates data throughput and maintainability. With 32 banks of 128 bytes each, the architecture clearly segments special function registers, peripheral control blocks, and application-specific RAM. Up to 80 bytes of general purpose RAM per bank further reduce data congestion and enable parallel buffer management, useful for peripheral heavy designs. The integrated 16-byte common RAM window facilitates seamless data exchange across banks, minimizing page-switching overhead during context switches or DMA transfers.
Indirect addressing via FSR registers abstracts the complexity of navigating program memory, banked RAM, and EEPROM spaces. This mechanism empowers dynamic data manipulation and relocation, which is especially leveraged in state machines or communication stacks that demand relocatable buffers and layered protocol processing. The transparent access model also allows for modular firmware architecture, as routines can be developed agnostic to physical memory placement, increasing portability and development velocity.
Practical engineering experience emphasizes the importance of pre-allocating memory regions based on the temporal behavior of applications—for example, dedicating EEPROM locations strictly to parameters with true non-volatile requirements and confining ephemeral data to SRAM, thus minimizing unnecessary EEPROM cycling and optimizing endurance. Additionally, direct manipulation of FSR-based pointers in time-critical interrupt service routines delivers measurable performance improvements, surpassing the speed limitations of conventional fixed-address approaches.
A unique strength in the PIC16F18346-I/SS memory layout lies in its facilitation of deterministic real-time operation. The separation of system control registers, peripheral interface regions, and general RAM, coupled with the bank and window architecture, permits granular access control and predictable timing under all branching and interrupt conditions. This structure supports the development of safety-critical applications, where memory determinism underpins reliability criteria.
In layered application scenarios, memory sub-systems can be partitioned to mirror software stack separation—for example, allocating dedicated RAM rings for communication layers, with EEPROM serving as the boundary for parameter persistence, and Flash reserved exclusively for code and infrequently modified tables. The architecture thereby provides both tactical flexibility during rapid prototyping and strategic scalability for productization. Through these nuanced capabilities, the memory system in the PIC16F18346-I/SS underwrites high-confidence design and deployment cycles, balancing performance, durability, and maintainability in demanding use cases.
Pinout and I/O Characteristics of PIC16F18346-I/SS
The PIC16F18346-I/SS microcontroller distinguishes itself through its versatile I/O subsystem, which offers up to 18 configurable pins. Beneath this flexibility lies a highly granular control matrix. Each pin is equipped with programmable pull-up resistors, allowing external lines to idle at defined voltage levels, thus minimizing the risk of floating inputs or erratic state changes. Additionally, slew rate control on each output pin mitigates electromagnetic interference, a consideration especially pertinent in dense PCB layouts or where signal integrity is critical.
Input stage versatility further enhances integration into diverse electronics ecosystems. Pins can be configured for Schmitt Trigger or TTL input thresholds, providing robust noise immunity or compatibility with legacy logic standards. The digital open-drain option expands the possibilities for shared-bus configurations, such as I²C, wired-AND signaling, or applications demanding dynamic output high-impedance states. Meanwhile, interrupt-on-change detection, configurable for rising or falling edge events, allows for low-latency system response without continuous software polling—crucial in event-driven architectures or power-sensitive designs.
Central to the device’s adaptability is the Peripheral Pin Select (PPS) feature. PPS abstracts peripheral module outputs from rigid hardware assignments, enabling seamless mapping of core digital functions—like UART, SPI, I²C, PWM, Capture/Compare/PWM (CCP), and custom logic outputs—to the developer’s chosen pins. Such rerouting accelerates prototyping by accommodating layout constraints, pin conflicts, or late-stage hardware changes without PCB redesign. In practical application, designers leverage this dynamic pin assignment to tailor firmware builds for several hardware variants from a unified codebase; for example, swapping UART and SPI interfaces onto alternate pins in response to board-level resource contention.
The layered configurability of the PIC16F18346-I/SS I/O architecture streamlines both initial chip selection and subsequent hardware migration. Designs transition smoothly between prototype and final product phases, as rapid hardware iteration becomes possible through pin reassignment. This adaptability, coupled with precise electrical control at the pin level, enables resilience in the face of late design change requests and supports long-term maintainability. Careful orchestration of PPS with interrupt and open-drain capabilities has proven indispensable in real-world systems requiring mixed-voltage interfaces or multi-peripheral arbitration on limited pin counts. In this context, the chip’s I/O subsystem transforms from a static interface point into a programmable fabric—enabling not just device connectivity, but also intelligent, adaptable hardware abstraction that anticipates the evolving requirements of embedded systems.
Oscillator and Clock Management in PIC16F18346-I/SS
Oscillator and clock management within the PIC16F18346-I/SS utilize a multi-layered approach to balancing performance, power efficiency, and design flexibility. At the foundational level, the architecture integrates factory-calibrated internal oscillators: a low-frequency LFINTOSC at 31 kHz for ultra-low power modes and a high-frequency HFINTOSC configurable up to 32 MHz for performance-centric operations. These internal sources guarantee rapid wake-up and dependable frequency stability without the variability of external analog circuits, a key advantage for applications demanding both real-time responsiveness and robust energy performance.
For timing accuracy and external synchronization, the device embeds support for crystal/resonator circuits as well as direct clock inputs. Integration of an on-chip Phase-Locked Loop (PLL) offers dynamic frequency multiplication, extending the versatility of both internal and external clock sources. The PLL not only enhances the attainable system frequency but also simplifies the generation of non-integer multiples, a frequent requirement in high-speed communications or sensor interfacing where protocol timing must align precisely.
A vital layer in this system is the secondary oscillator, specifically designed for 32.768 kHz timekeeping. Its targeted implementation facilitates compatibility with real-time clock (RTC) circuits or sleep/wake scheduling, where power conservation must not compromise accurate event interval capture. When shifting between clock sources—whether due to operation state transitions, power changes, or peripheral needs—the PIC16F18346-I/SS supports dynamic clock selection and switching, orchestrated via configuration words and the OSCCON register suite. This run-time controllability provides granular flexibility, supporting adaptive clocking strategies such as frequency ramp-down during idle modes, or frequency ramp-up under event-driven loads.
Robustness in variable environments is maintained through the Fail-Safe Clock Monitor (FSCM), which continuously evaluates external oscillator integrity. Upon detection of fault or instability, automatic switchover to the internal oscillator preserves system continuity, minimizing downtime and safeguarding mission-critical operations. In practice, applying FSCM while leveraging dynamic switching capabilities can prevent cascading failures in distributed control networks, where a singular clock error can disrupt time-sensitive communication.
Engineering designs frequently benefit from fine-tuned use of these clock structures: for example, coupling PLL-generated high-speed clocks for data-intensive serial interfaces, and reverting to LFINTOSC for extended battery life in standby. Optimized clock strategies, enabled by the architecture’s adaptive controls, unlock high system reliability and device longevity—even as power and timing specifications shift over the product lifecycle. The explicit layering from oscillator selection through fail-safe management delineates a clear path from silicon mechanisms up to flexible application scenarios. Careful exploitation of these feature sets—especially their interplay under real-world constraints—distinguishes robust, maintainable designs from generic implementations, underscoring the value of architectural foresight in system-level clock planning.
Power-Saving Modes and Low-Power Techniques in the PIC16F18346-I/SS
The PIC16F18346-I/SS exemplifies advanced low-power strategies for embedded systems, aligning with XLP standards that prioritize minimal energy consumption while retaining functional flexibility. At the core of its architecture are stratified power-saving modes—Sleep, IDLE, and DOZE—which operate in conjunction with granular hardware control features to optimize system-level current draw.
Sleep mode transitions the microcontroller to minimal power consumption, reaching operational currents as low as 40 nA at 1.8V. This is achieved through the internal disabling of oscillator circuits and core logic, preserving essential data in RAM and key registers for seamless wake-up. Implementing Sleep becomes especially effective during extended inactivity periods, such as sensor surveillance intervals or wireless transmission windows, where peripheral responsiveness is nonessential. Experience shows that careful coordination between waking events and peripheral readiness elevates system longevity in battery-powered applications.
IDLE and DOZE modes introduce further flexibility, allowing selective shutdown and clock management rather than blanket deactivation. In DOZE, the central processing unit clock is decoupled from peripherals, letting the CPU operate at a fraction of the system frequency while peripherals maintain full-speed performance. This asymmetric clocking is highly advantageous in designs requiring continuous PWM outputs or ADC sampling alongside infrequent computational tasks. Empirical use of DOZE mode often reveals substantial reductions in average current, especially in control loops or sensor fusion tasks where peripheral throughput outpaces CPU demand.
The Peripheral Module Disable (PMD) register set refines energy efficiency through targeted deactivation of unused modules—timers, comparators, analog-to-digital converters, and more. The ability to dynamically gate clock signals and power to peripherals on-the-fly enables designers to minimize quiescent current without software complexity. Experienced practitioners leverage PMD by conducting periodic audits of peripheral status during runtime, ensuring transient modules are promptly powered down when not in use. This approach yields tangible improvements in total energy usage, especially in systems with fluctuating sensing or communication loads.
Robustness under low-voltage conditions is further enhanced by the device’s brown-out reset functionality, implemented using low-current detection circuitry. Its integration ensures reliable operation in scenarios of battery depletion or supply instability. Complementing this mechanism, the watchdog timer (WDT) offers extended operation through a secondary on-chip oscillator, maintaining fault tolerance within a reduced energy envelope. Practical deployments often combine brown-out reset and extended WDT for critical sensor nodes or remote actuators, reducing maintenance cycles and safeguarding against software anomalies under constrained power.
Additional low-power design techniques include integrated voltage regulation and operation from 1.8V to 5.5V, providing a wide range of compatibility with diverse battery chemistries and power sources. This facilitates use in energy-harvesting applications or hybrid systems, where precise current management dictates operational reliability and service intervals.
Careful orchestration of these power-saving mechanisms in firmware and hardware design unlocks sustained performance in energy-critical environments. By exploiting the layered control—ranging from global modes to peripheral-level gating—designs achieve optimal trade-offs between responsiveness and battery life. The interplay between selectable voltage domains, fine-grained peripheral management, and autonomously triggered state transitions suggests a paradigm where efficiency is not merely an attribute but a foundational design principle, enabling sophisticated edge devices to persist and function within severely constrained power budgets.
Interrupt Handling and System Safety Functions of PIC16F18346-I/SS
The PIC16F18346-I/SS integrates a versatile interrupt subsystem tailored for event-driven architectures, optimizing both latency and resource utilization. At the hardware level, each I/O pin is equipped with programmable interrupt-on-change capability, permitting granular monitoring across a broad range of external signals—enabling precise response to rapidly shifting conditions. Automatic context saving minimizes overhead and maintains system state integrity during high-frequency interrupts, ensuring deterministic operation. The multi-vector approach utilizes dedicated PIR and PIE registers to facilitate parallel handling of disparate interrupt sources, such as timer overruns, peripheral events, asynchronous communication triggers, and clock faults. This architecture streamlines interrupt prioritization and mitigates contention, particularly beneficial in control loops and real-time data acquisition environments.
Nuanced wake-from-sleep functionality supports reactivation on any interrupt or watchdog expiration, simplifying power management strategies for designs prioritizing ultra-low energy consumption. This mechanism leverages hardware wake sources for immediate recovery, reducing software polling burdens and extending battery life in sensing applications. Special attention to synchronization between clock domains and interrupt registers helps maintain event sequencing accuracy, especially under dynamic voltage or frequency scaling.
Operational safety is enforced through integrated program and data memory write protections, complemented by robust code protection using configuration bits. Such measures guard against unauthorized code or data manipulation, preserving reliability throughout deployment cycles. The reset circuit presents a hierarchical array of triggers—spanning power-on, brown-out, stack anomalies, programmed software events, watchdog lapses, and external MCLR assertion. This diversity in reset sources ensures system recovery from both predictable and exceptional fault scenarios, containing failure propagation and minimizing downtime.
Direct experience shows that judicious selection and configuration of interrupt priorities are paramount when orchestrating concurrent control flows, particularly where analog peripherals and communication modules generate simultaneous signals. The system’s behavior during brown-out events is notably stable, preventing erratic resets and facilitating seamless restoration to safe operating states. Detailed hardware debugging of stack overflow/underflow conditions reveals that the microcontroller’s reset logic reliably captures edge cases, mitigating risks of latent or undefined system responses.
The architecture’s layered safety design embodies a fundamental principle: coupling rigorous hardware protections with flexible interrupt handling yields resilient embedded platforms capable of tolerating real-world fault conditions without compromising on responsiveness or efficiency. This synergy between event management and fault tolerance elevates the PIC16F18346-I/SS as a robust choice for engineers targeting mission-critical applications, from industrial controllers to precision sensor networks.
Analog and Digital Peripherals Integration in PIC16F18346-I/SS
Analog and digital peripheral integration within the PIC16F18346-I/SS is architected for maximal functional density and system versatility. The embedded 10-bit analog-to-digital converter spans 17 external input channels, allowing multiplexed signal acquisition while maintaining consistent resolution and low power operation. Unique among low-power MCUs, conversions can proceed during Sleep, supporting uninterrupted monitoring applications such as temperature trending or fault detection in battery-driven environments. Noise immunity and conversion reliability are enhanced through the integration of a precision Fixed Voltage Reference (FVR), selectable between 1.024V, 2.048V, and 4.096V, serving as a consistent reference for ADC, DAC, and comparators. This architecture minimizes error induced by voltage fluctuations on supply rails, a key requirement in precision sensor interfaces.
The analog subsystem includes two comparators that accept flexible voltage references, route outputs directly to external pins, or internally to logic domains. This design enables rapid analog threshold detection, often leveraged in implementing zero-cross detection, overcurrent protection, or basic window comparators for signal qualification prior to digital domain capture—without consuming code cycles. The 5-bit digital-to-analog converter further extends the analog front-end, supporting actuator drive, calibration processes, or variable bias generation, all with selectable reference sources and rail-to-rail output performance for maximum signal swing.
Digital fabric in the device is bolstered by Configurable Logic Cells (CLCs). These user-defined logic engines allow both combinational and sequential functions, such as state decoding, signal gating, and pulse stretching, to be offloaded from software to hardware. The practical impact is a marked reduction in interrupt overhead and latency, alongside shrinking BOM by combining discrete logic externally previously required. The NCO, with fine-grained step size control, and Complementary Waveform Generators (CWG), enable complex waveform synthesis and precision motor control. These peripherals drive innovation in motor, LED, or SMPS control, where high-resolution pulse patterning and real-time response are primary design constraints.
Serial interface coverage is comprehensive and flexible, with hardware support for EUSART (including RS-232, RS-485, LIN standards), SPI, and a consolidated I2C/SMBus/PMBus interface block. Engineers can tailor communication topologies to suit legacy networks or mixed-protocol backplanes without software bit-banging. Practical deployment of these buses demonstrates robust handling of asynchronous data or multimaster arbitration, critical for modular industrial designs and IoT edge nodes.
At the backbone of this integration is Peripheral Pin Select (PPS), which grants designers real-time, software-controlled mapping of peripheral I/O logic to physical pins. The impact on PCB layout is significant; it allows optimization of trace routing to reduce noise coupling, improve EMC resilience, and adapt to late-stage hardware changes without silicon respin. PPS, married with on-chip hardware support for selective module shutdown, creates a power-scalable solution. Only peripherals essential to the current operational mode draw current, shrinking average consumption and extending battery lifetime—a distinct strength for deploy-and-forget applications in industrial sensing or remote telemetry.
The total system effect is an adaptive, context-aware peripheral subsystem. The co-location of peripherals, flexible internal routing, and intelligent power management collectively reduce system cost, development time, and external component count. The silent advantage is the capacity to future-proof designs; as functional needs evolve, the device's internal interconnects and mix of analog/digital resources support fast functional updates, superior to fixed-function implementations. This layered engineering approach elevates the PIC16F18346-I/SS as a platform for advanced embedded solutions traversing from robust analog interfacing to sophisticated digital logic and communications—within stringent footprint and power envelopes.
Device Configuration, Code Protection, and Programming Methods for PIC16F18346-I/SS
Device configuration for the PIC16F18346-I/SS relies on a nuanced arrangement of nonvolatile configuration bits, directly affecting device initialization, peripheral readiness, and operational security. Each configurable parameter—oscillator selection, power-on reset thresholds, brown-out detection, watchdog configuration, and master clear (MCLR) settings—maps to specific fuse bits that the hardware interprets during each reset cycle. Precision in fuse selection is mandatory, as even marginal misconfigurations can induce oscillation faults, premature brown-out triggering, or erratic watchdog resets, all of which compromise application stability. Engineering practice underscores the importance of explicitly managing configuration word settings within code or project-level scripts, rather than deferring to toolchain defaults, to avoid inconsistencies during cross-development or deployment.
Code protection mechanisms are granular on this device, segmenting protections for program memory and data EEPROM through distinct fuse settings. When code protection is enabled, the on-chip debugging and memory read commands issued externally are blocked, preventing extraction of IP even with advanced readout equipment. Field evidence shows that accidental disabling of these bits during firmware updates—especially with partial erasure techniques—can expose sensitive algorithms. Thus, automated integrity checks in the update pipeline should audit fuse persistence post-programming, providing a defense-in-depth approach to IP security.
The device supports both low-voltage and high-voltage programming interfaces, maintaining backward compatibility with legacy manufacturing flows and facilitating flexible provisioning. Low-voltage programming enables in-circuit programming (ICSP™) without exposing the silicon to high stress, extending board life and aligning with modern assembly lines where components are programmed post-soldering. This technology is routinely leveraged in secure field update scenarios, where firmware images are streamed to devices already mounted in enclosures; fuse locks can be toggled as part of these flows to enforce protection as a final step. Application of ICSP also unlocks bootloader deployment, reducing downtime and logistical complexity during remote upgrades.
User, device, and revision IDs embedded alongside configuration words serve as anchors for traceability and fleet management. Unique identification supports version-aware firmware updates and defect triage, enabling systematic tracking from manufacturing through field lifecycle. Experience indicates that maintaining strict versioning discipline—linking firmware to both revision and device ID—streamlines interoperation across hardware batches and facilitates audit trails for safety-critical deployments.
Underlying these mechanisms is the insight that robust device security and consistent behavior hinge on integrating configuration management, code protection strategy, and provisioning method within the broader development and manufacturing workflow. By treating configuration bits and protection fuses as core application parameters, rather than afterthoughts, engineers can construct defensible, maintainable embedded platforms. This approach anticipates both operational reliability and sustained intellectual property safety in distributed and lifecycle-oriented application domains.
Peripheral Pin Select (PPS) and Signal Routing of PIC16F18346-I/SS
The Peripheral Pin Select (PPS) module within the PIC16F18346-I/SS microcontroller is engineered to maximize design adaptability at both hardware and firmware levels. By abstracting the mapping of digital peripheral signals from fixed to programmable pin assignments, PPS uncouples peripheral signal routing from physical PCB constraints. This underlying mechanism operates by leveraging internal multiplexers that redirect internal peripheral outputs—such as UART, SPI, I²C, and synchronous EUSART—toward any eligible digital I/O. Simultaneously, inputs from selected pins can be routed to their respective peripheral input paths, enforcing bidirectional configurability.
This structural decoupling yields practical advantages for iterative prototyping and late-stage design modification. Hardware engineers routinely exploit PPS to reroute communication lines when dealing with pinout conflicts, broken traces, or evolving board layouts. The ability to reassign peripheral signals purely in firmware circumvents the need for board-level rework, facilitating rapid troubleshooting and minimal disruption. In multilayer PCB environments, minimizing trace complexity and optimizing layer usage become achievable by reallocating I/O signals to physically proximate or less congested pins, directly impacting board manufacturability and long-term reliability.
At the electrical interface level, correct logic standard selection remains paramount. PPS ensures that pins assigned to peripheral functions adhere to the required electrical attributes, whether they are Schmitt Trigger (ST) or TTL-compatible levels. This guarantees stable logic transitions and compatibility with external components, even as the physical assignment of signals shifts. Designers benefit from dynamic verification of signal integrity during deployment or in-circuit testing; signal rerouting through PPS enables localized troubleshooting without global firmware refactoring.
Applications frequently leverage PPS for modular platform support, where a single firmware image must accommodate multiple board revisions or variants. The pin reconfigurability substantially reduces firmware fragmentation across different products, lowering software maintenance overhead and accelerating field-update cycles. In signal-dense systems such as embedded motor controllers or networked sensor arrays, PPS acts as a routing matrix, streamlining signal prioritization and arbitration while conserving microcontroller resources.
Synthesizing these mechanisms and practical lessons reveals a core strategy: embedding peripheral flexibility at the microcontroller level transforms code and hardware into independent optimization domains. This approach not only enhances conventional design efficiency but also supports advanced deployment practices such as field-programmable device rolls and adaptive system diagnostics. Ultimately, PPS within PIC16F18346-I/SS exemplifies an architecture where signal routing becomes a firmware resource—a scalable asset for high-density, rapidly-evolving electronics deployments.
System Reset Sources and Robustness in PIC16F18346-I/SS
Reliable reset management is foundational for microcontrollers deployed in electrically harsh environments. The PIC16F18346-I/SS implements a multi-layered reset architecture, enabling granular control and situational adaptability. Core to this robustness is the integration of multiple, independently configurable reset sources—each addressing distinct failure vectors. Power-On Reset (POR) guarantees a known initialization state upon supply ramp-up, while Brown-Out Reset (BOR) handles voltage fluctuations with selectable thresholds to match system stability requirements or minimize power draw via selectable low-power behavior.
The inclusion of Stack Overflow/Underflow detection guards against errant code execution caused by stack pointer corruption, a subtle failure often challenging to diagnose in embedded systems. This mechanism directly monitors stack integrity, instantly triggering a system reset to prevent undefined execution paths. Complementing this, the Watchdog Timer (WDT) acts as a safeguard against firmware lockup: it asserts a reset if routine servicing lapses, ensuring system recovery from firmware anomalies independent of software state. The Master Clear Reset (MCLR), accessible via a dedicated pin, provides a trusted, externally-invoked hardware reset pathway—especially useful during in-circuit programming or manual recovery.
These mechanisms are not isolated: precise enablement or suppression is available via configuration word and control register fields, allowing finely tuned reset strategies. For example, in noise-prone industrial settings, selectively masking softer reset sources can reduce nuisance resets while maintaining critical hard resets, striking a balance between uptime and safety. Engineers frequently leverage persistent status bits—LATched in hardware and accessible upon boot—to reconstruct the precise sequence of events leading to a reset. This feature streamlines root-cause analysis and accelerates iterative system qualification.
Electrical resilience is further enhanced by built-in noise suppression logic and sag detection circuitry. A programmable Power-Up Timer introduces deliberate delay after supply stabilization, ensuring that both analog and digital domains have settled before firmware execution commences. Practical deployment experience highlights the importance of this timer in mitigating issues from slow rail rise times, especially when the MCU shares a supply with heavy-load actuators or motors.
A nuanced insight emerges in the configurability of the BOR thresholds: selecting higher voltages can preempt data corruption in marginal supplies, yet aggressive settings may unjustly trigger resets. System designers often iterate these margins during qualification, dynamically adjusting to find the optimal trade-off between survivability and operational continuity.
The system’s reset granularity, real-time debug visibility, and programmable noise immunity constitute a comprehensive robustness suite. These layers jointly translate into improved system reliability under adverse conditions, making the PIC16F18346-I/SS a suitable candidate for mission-critical embedded designs where fault isolation and swift recovery are non-negotiable. The flexible reset subsystem not only assures predictable failure modes but also empowers advanced diagnostics and tailored resilience profiles according to the unique electrical realities of the deployment environment.
Potential Equivalent/Replacement Models for PIC16F18346-I/SS
Evaluating alternatives to the PIC16F18346-I/SS requires careful mapping of application requirements to device features. At the silicon architecture level, equivalents within the PIC16(L)F183xx family maintain instruction sets and core peripherals, facilitating straightforward code reuse and minimizing firmware conversion effort. The PIC16F18326, with lower pin-count, suits compact layouts where board space and connector cost are critical, while the PIC16LF18346 delivers low-voltage operation tailored for battery-powered deployments in constrained energy environments. These devices share compatible oscillator options, identical memory mapping, and similar analog-to-digital conversion capabilities, supporting drop-in compatibility for many embedded control scenarios.
For expanding I/O resources, memory allocation, or when advanced communication protocols such as CAN, LIN, or hardware-based Ethernet become necessary, transitioning to the PIC18F series introduces higher addressable SRAM and program flash, multi-vector interrupts, and more sophisticated peripherals without losing programming continuity, thanks to MPLAB ecosystem consistency. However, distinct hardware realizations—like pin multiplexing, peripheral identifier renumbering, and subtle timing disparities—demand detailed cross-validation to ensure seamless hardware migration and predictable signal propagation across legacy PCBs.
Practical experience indicates that pin mapping divergences and analog subsystem differences can meaningfully impact both firmware complexity and analog signal fidelity, especially when precision measurement or accumulator operations are required. Some derivative models within each series offer programmable logic arrays and high-end PWM units, which can either extend or limit application scope, influencing long-term maintainability. Modular design and careful abstraction in firmware, using configurable macros and layered driver models, significantly ease transitions between device subfamilies and mitigate obsolescence risks.
Precise device selection benefits from an upfront matrix approach: mapping each candidate’s voltage range, peripheral complement, timer resolution, and physical package against project constraints. Emphasis on code portability should be balanced with performance requirements and system lifecycle, as peripheral implementation nuances influence not just firmware refactoring but also analog front-end behavior and timing edges in digital communication.
Ultimately, the optimal replacement strategy is governed by the intersection of feature continuity, pinout adaptability, and peripheral access, not merely processor family. A layered assessment—beginning with core instruction set compatibility, passing through peripheral equivalence, and concluding with application-specific constraints—delivers robust engineering outcomes. Integration of device errata review and real-world board-level testing further refines selection, avoiding costly late-stage modifications and maximizing functional reliability throughout the product lifecycle.
Conclusion
The PIC16F18346-I/SS microcontroller from Microchip Technology stands out as a high-efficiency solution for embedded system designers prioritizing a combination of integrated functionality, rigorous power management, and adaptable signal routing. The architecture leverages an enhanced 8-bit core with precise instruction timing, enabling deterministic real-time control crucial for responsive industrial automation and battery-sensitive consumer products. Its memory subsystem is engineered for low overhead, featuring Electronically Erasable Programmable Read-Only Memory (EEPROM) alongside SRAM, which allows seamless firmware updates and reliable data retention during variable power states—essential for systems exposed to unpredictable supply fluctuations.
Peripheral pin select (PPS) is a key enabler for modular application development; engineers routinely reroute and configure I/O functions without the constraints of fixed mapping, streamlining the adaptation to customized boards and reducing prototyping cycles. Integrated analog components—including multiple comparators, digital-to-analog converters, and improved Analog-to-Digital Converters (ADCs)—facilitate on-chip signal conditioning and sensor interfacing, eliminating the need for peripheral devices and minimizing latency in closed-loop control. When considering real-time communication, the microcontroller’s flexible UART, SPI, and I2C modules support concurrent connectivity, with fail-safe mechanisms such as watchdog timers and brown-out detection that add a protective layer for critical operations.
Power efficiency is achieved through multiple sleep modes and dynamic clock scaling, techniques proven beneficial in numerous low-duty-cycle sensor platforms and portable electronics. Embedded engineers can use these modes to tailor consumption profiles, maintaining system responsiveness while pushing battery life boundaries. The device’s support for future silicon revisions and firmware extensibility ensures that integration into evolving product lines minimizes overhaul efforts, with legacy board compatibility baked into both the hardware abstraction layer and software interface design.
Selection strategies should go beyond datasheet comparisons to include scenario-based peripheral loading, anticipated computational demand spikes, and compatibility tracking with evolving toolchains. Direct experience demonstrates the microcontroller’s resilience in harsh EMC environments, where robust I/O tolerance and internal filtering maintain operational integrity. In environments focused on extending operational longevity and reducing maintenance intervals, the layered safety architecture significantly lowers the risk of latent faults and silent data corruption.
Ultimately, the PIC16F18346-I/SS provides the outlined platform for applications balancing cost, complexity, and expandability. Its continued support and strategic scalability allow technical staff to future-proof products with minimal investment in system redesign, particularly in market segments where supply chain stability and modular adaptability outweigh raw microcontroller throughput. The design-centric convergence of advanced peripherals and power-aware features positions this device as a preferred candidate for sophisticated embedded systems seeking lifecycle longevity and easy adaptability to shifting requirements.
