Product Overview of MEC1322-LZY-C0 Keyboard and Embedded Controller
The MEC1322-LZY-C0 represents a nuanced synthesis of keyboard and embedded controller functionalities tailored specifically for x86-based client platforms. At the heart of this solution lies a 32-bit ARM Cortex-M4 core, which underpins both deterministic control and scalable performance. The architecture’s advanced instruction set, including single-cycle multiply and hardware divide, enables prompt and reliable execution of firmware-intensive management tasks common in notebook and mobile computing environments. The dedicated MPU and memory protection features further bolster system resilience against errant application code or malicious exploitation, reinforcing device security and operational integrity.
Integral to the design is the cohesive suite of system interfaces. SPI, LPC, and I²C channels facilitate broad compatibility with host chipsets, enabling seamless communication under both legacy and UEFI-class workflows. This versatility proves critical when implementing platform migration strategies, where backward support for legacy BIOS mechanisms must co-exist with the demands of contemporary pre-boot environments. Reliable signaling and intelligent arbitration on the board can directly translate into reduced integration cycles and lowered validation overhead. Real-world configurations have demonstrated the effectiveness of adaptive signal mapping—using programmable pin multiplexing to tailor peripheral assignment and optimize board layout for various OEM or ODM requirements.
Power management is a core focus of the MEC1322-LZY-C0, with hardware support for multiple sleep states, battery-backed real-time clock, and granular wake event controls. Embedded designers frequently leverage these capabilities to balance system responsiveness with aggressive energy savings in connected standby scenarios. The controller’s autonomous state change logic can orchestrate system transitions with minimal CPU intervention, contributing to faster resume times and extended battery life—factors directly measured in certification benchmarks and real-use evaluations.
Peripheral integration further distinguishes the device, providing integrated keyboard matrix scanning, SMBus controller logic, fan speed control, and various system health monitors. When architecting thermally constrained ultrabooks or compact desktops, leveraging on-chip PWM for dynamic cooling response can simplify design and eliminate the need for discrete microcontrollers or glue logic. Signal integrity and latency concerns are mitigated through direct bus interfacing and hardware-based debouncing, supporting robust input recognition under heavy system load and electrical noise.
From a practical standpoint, modular firmware development is enabled via rich debug support and in-system programmability, streamlining iterative prototyping and field updates. The provision of secure boot mechanisms, hardware root-of-trust anchors, and firmware authentication align with prevailing industry trends for supply chain assurance and endpoint defense. Careful utilization of these hardware trust features often expedites compliance with platform security guidelines and mitigates risk during remote management deployments.
A holistic appreciation of the MEC1322-LZY-C0’s feature set suggests that integration can elevate reliability and optimize total platform cost. Thoughtful partitioning of functions across programmable modules maximizes the utilization of available silicon, simplifying board manufacturing and maintenance logistics. The convergence of embedded controller and keyboard logic, strong peripheral versatility, and rigorous energy management thus positions the MEC1322-LZY-C0 as a forward-compatible anchor for next-generation client form factors, generating tangible value across development, deployment, and lifecycle phases.
Functional Block Architecture of MEC1322-LZY-C0
The functional block architecture of the MEC1322-LZY-C0 microcontroller is engineered to consolidate critical system functions, emphasizing performance, security, and platform scalability. At its core lies the ARM Cortex-M4 subsystem, providing deterministic real-time processing and hardware floating-point support. This choice delivers an optimal balance between computational efficiency and power consumption, ensuring reliable firmware operation across wide-ranging system loads.
Accompanying the processor core, the device incorporates 128KB of SRAM, strategically segmented for separate code and data storage. This partitioning not only improves execution speed by minimizing memory contention but also aids in secure memory mapping and stack protection strategies, foundational for robust firmware development in trusted computing environments.
Host interface versatility is another prominent aspect. Dedicated support for Intel® LPC and SPI links allows seamless attachment to both legacy and emerging x86 platforms—facilitating straightforward integration in mixed-generation designs. This dual-host interface support reduces board complexity and expands deployment flexibility by enabling a single controller SKU to serve across various product lines.
Keyboard controller logic with 8042 compatibility and matrix scanning operates as an autonomous engine, optimizing response latency and offloading the processor from routine key event management. By handling keyboard matrix polling at the hardware level, the architecture ensures precise and low-latency user input—meeting stringent requirements in systems where input responsiveness is critical, such as secure notebook platforms and industrial control interfaces.
The power management block demonstrates a deep alignment with ACPI-compliant architectures. Direct support for system state transitions, such as S3/S4/S5 sleep and wake cycles, is achieved through hardware-assisted sequencing. This hardware-centric approach guarantees deterministic timing during power state changes, simplifies firmware development, and enhances system battery life by executing low-power entry and exit paths with minimal processor involvement.
Peripheral integration is comprehensive, including timers, PWM, ADC, multiple GPIOs, PS/2, SMBus/I2C, UART, and security-centric IOs. This broad peripheral set eliminates the necessity for extraneous companion chips, directly impacting overall BOM cost and PCB real estate. For instance, direct SMBus integration allows the controller to act as a bridge for system management events, temperature sensor access, and battery communication—accelerating platform validation and maintenance workflows.
Embedded security mechanisms within the controller architecture extend beyond basic secure boot and firmware validation. The design leverages hardware root-of-trust functions, isolating key security assets within protected memory partitions. Such architectural decisions mitigate common attack vectors, such as firmware tampering or malicious code injection, and facilitate compliance with emerging secure platform standards.
Practical deployment consistently reveals streamlined board layouts due to signal consolidation and reduced routing complexity. This is particularly advantageous in ultrathin designs, where PCB layer count and layout geometry are primary constraints. Close coupling of power and control sequencing also reduces the risk of anomalous system states during abrupt power events or recovery cycles.
In sum, the layered integration within the MEC1322-LZY-C0 architecture reflects a forward-looking perspective—combining flexible host interfaces, robust peripheral aggregation, and hardware-enforced security within an efficient control domain. This approach augments modularity, simplifies scaling across target devices, and equips engineering teams with a unified foundation for responsive, maintainable, and secure embedded platform development.
Core Processor and Internal Memory Architecture in MEC1322-LZY-C0
The MEC1322-LZY-C0 is architected around the ARM Cortex-M4F core, leveraging the ARMv7-M 32-bit instruction set coupled with a hardware floating-point unit designed to accelerate complex arithmetic operations. This forms a robust computational engine, particularly advantageous in digital signal processing tasks, control algorithms, and real-time analytics where deterministic execution and floating-point efficiency are critical. The implementation adheres to a little-endian data format and adopts a unified 4GB linear address model based on the Von Neumann architecture, streamlining mixed code and data access patterns and facilitating seamless integration between system firmware and peripheral memory regions.
Central to the platform’s responsiveness is the Nested Vectored Interrupt Controller (NVIC), engineered to support up to 240 uniquely vectored interrupt sources with eight programmable hardware priority levels. This enables fine-grained preemption and prioritization, vital for deterministic real-time behaviors in complex embedded contexts. Interrupt aggregation further enhances flexibility, optimizing event handling under high concurrency. The NVIC’s structure minimizes interrupt latency, making the architecture well-suited for time-critical workflows, such as motor control or industrial automation, where precise scheduling and rapid context switching safeguard system stability.
The debug and trace subsystem is designed for comprehensive programmability and visibility. Full ARM standard debug access through JTAG-based SWJ-DP interface and AHB-AP provides integrators with deep system observability. Integrated trace units—including ITM (Instrumentation Trace Macrocell), ETM (Embedded Trace Macrocell), TPIU (Trace Port Interface Unit), DWT (Data Watchpoint and Trace), and FPB (Flash Patch and Breakpoint)—collectively enable non-intrusive tracing, execution profiling, and hardware breakpoint deployment for advanced firmware development and validation. These capabilities are instrumental during iterative tuning cycles, shortening debugging duration and reducing risk during deployment.
The internal memory subsystem is strategically partitioned to optimize code and data throughput. The 128KB embedded SRAM, subdivided into 96KB for code and 32KB for data, offers dual-port access by both the processor core and the DMA controller, supporting simultaneous instruction fetch and data manipulation without resource contention. Practical design experience demonstrates that this partitioning reduces pipeline stall frequencies during algorithmic routines with high data churn, such as cryptographic processing or sensor fusion tasks, where parallel access is non-negotiable for consistent throughput. The use of tightly integrated SRAM arbitration logic ensures low-latency and deterministic response even under sustained high-load conditions, maintaining system integrity and preventing wait-state lockouts typical in bus-unaware memory arrangements.
Complementing the SRAM, a 32KB Boot ROM provides secure and reliable initialization at power-on, with 30KB dedicated to user-accessible applications. This reserved memory supports bootloader implementations, factory diagnostics, or gold-image fallback strategies, isolating critical bootstrap routines from overwrites and runtime corruption. Field experience suggests that segregating these functions in ROM establishes a trust anchor, reducing recovery time in adverse events such as firmware faults or system resets.
Analyzing the overall architecture, the synergy between a high-throughput memory fabric and a precision-engineered processing and interrupt subsystem delivers clear benefits in embedded deployments that demand real-time determinism with concurrent data processing. Advanced debug and trace provisions further de-risk the development pathway, supporting both rapid prototyping and long-term maintenance. Notably, the layered approach to internal memory access, coupled with the NVIC’s scalable interrupt management, enables deployment in both resource-constrained IoT scenarios and more demanding industrial edge applications—where high availability and predictable behavior are paramount—thus extending operational boundaries beyond typical microcontroller-class devices.
Host System Interfaces of MEC1322-LZY-C0
The host system interfaces of the MEC1322-LZY-C0 are architected to maximize compatibility and flexibility in x86-based designs. At the foundational level, the Intel® Low Pin Count (LPC) bus interface implements the LPC Specification v1.1, thereby ensuring robust integration with legacy chipset environments. Operating with an adjustable clock between 19 MHz and 33 MHz, the LPC interface reliably manages three critical transaction types: I/O cycles, memory cycles, and serial IRQ signaling. This allows the embedded controller to directly participate in system-level management, such as responding to legacy peripheral access or providing hardware event signaling. The incorporation of programmable Base Address Registers (BARs) secures dynamic host-side configuration, enabling logical device register mapping tailored to rapidly evolving system requirements. This design consideration offers a future-proof mechanism for firmware extensibility and seamless BIOS handshaking.
Layered atop the LPC foundation, the dual-channel SPI memory interfaces support both private and shared SPI Flash topologies. These interfaces leverage DMA-based data paths for high-throughput and latency-optimized flash access, which becomes especially critical during EC firmware loading, over-the-air (OTA) updates, and field recovery scenarios. Practical deployment reveals that dedicated SPI channels mitigate contention and increase data integrity during parallel firmware operations or when utilizing partitioned flash resources for differentiated security zones. The architecture explicitly supports rolling firmware updates without impacting runtime stability, thereby reducing downtime in managed computing environments.
Complementing the hardware-level transports, a suite of embedded controller (EC) host communication mechanisms—comprising an 8042 legacy interface, mailbox registers, and a full ACPI Embedded Controller (EC) interface—delivers enhanced firmware-agent synchronization. The ACPI-ECI block is engineered to handle both single-byte and four-byte transfer modes, as standardized by the ACPI Specification, improving throughput for modern power and thermal management protocols. Host mailbox and runtime registers enable synchronized, full-duplex messaging between the EC and system host. This approach reduces interrupt latency and improves command-response efficiency in scenarios requiring high event throughput, such as advanced power sequencing, keyboard control, or platform instrumentation.
Operational reliability across both legacy and contemporary system topologies is achieved not only by broad protocol support but also through stringent compliance with de facto desktop and mobile BIOS environments. This versatility allows rapid deployment on platforms transitioning between classical BIOS and UEFI firmware stacks, accelerating time-to-market for new system SKUs without necessitating architectural rework.
A unique insight surfaces in the device’s approach to register mapping and interface abstraction; by decoupling transport details from logical resource allocation, the MEC1322-LZY-C0 can absorb future protocol shifts with minimal design friction. In practical applications, this translates into reduced engineering overhead during board bring-up, easier diagnosis during interoperability validation phases, and smoother support for host-managed security or attestation schemes. The design focus on flexible host interface mapping and robust synchronization primitives positions the MEC1322-LZY-C0 as a preferred EC solution for OEMs seeking long-lifecycle platform support combined with readiness for next-generation interface demands.
Embedded Controller Features in MEC1322-LZY-C0
The MEC1322-LZY-C0 embedded controller advances the integration of core platform management features with a deliberate emphasis on interoperability, power optimization, and secure peripheral handling. Its keyboard matrix scan engine supports a substantial 18x8 matrix configuration, enabling precise real-time detection of key events, including n-key rollover. Interrupt and wake-up functionalities embedded at the matrix level facilitate low-latency response while conserving system power—design choices that suit both conventional notebook designs and custom input solutions. The programmable nature of the matrix scan algorithm allows adaptation to non-standard layouts and supports rapid prototyping for specialized hardware environments.
The legacy 8042 emulation block exemplifies deep compatibility engineering. By implementing hardware-accelerated GATEA20 and CPU_RESET generation, the MEC1322-LZY-C0 preserves expected behaviors during x86 power-on and boot, regardless of host firmware lineage. This emulation ensures seamless operation with older operating systems and firmware stacks, reducing system validation cycles in mixed-technology deployments. Direct manipulation of legacy I/O cycles from firmware or host enhances backward compatibility while affording granular system control during migration to modern architectures.
Resource management is structured around mailbox communication registers, complemented by 43 general-purpose scratch registers. These registers form a robust foundation for secure inter-processor messaging and resource allocation. Their architecture supports dynamic, firmware-managed handshakes, improving system reliability by partitioning control between embedded and host domains. The mailbox subsystem also expedites event-driven state changes and low-overhead data passage, underlining real-time system responsiveness. The available scratch registers prove valuable in storing persistent state, temporal configuration, and secure context during pre-boot authentication routines or platform diagnostics.
Hardware-driven PS/2 port integration enables continuous or suspended power modes, serving both legacy and secure input peripherals. This explicit design choice supports critical input devices—especially in biometric or controlled-access systems—by isolating input paths from the primary operating environment. By managing PS/2 port power independently, systems can prioritize security (e.g., maintaining operational readiness for encrypted keyboards) while reducing standby power consumption. The robust electrical isolation and flexible port multiplexing also improve EMI resilience and lower the likelihood of input injection vulnerabilities.
Layering these mechanisms, the controller embodies a model wherein legacy compatibility does not compromise the sophistication of resource orchestration and power management. The deliberate separation of programmable firmware control and hardware logic enables tailored adaptation to system architectures, permitting designers to balance security, legacy support, and integration complexity. Consistent deployment in enterprise-grade platforms reveals quiet strengths in supporting complex boot sequences, enhancing input event accuracy, and streamlining firmware coordination. Centralizing these functions in a single embedded controller simplifies system diagrams and unlocks new avenues for cross-functional platform innovation.
Power Management, Clocks, and Reset Mechanisms in MEC1322-LZY-C0
The MEC1322-LZY-C0 microcontroller implements a multi-domain power infrastructure, essential for sustained low-power operation in modern embedded applications. It partitions power into discrete domains: VBAT supports the battery-backed real-time clock and persistent context, VCC1 maintains always-on standby functions, and VCC provides the main operational supply. This segregation enables true instant-on and rapid wake capabilities—runtime voltage monitoring allows the device to adaptively enter high-performance or standby states based on system conditions. For instance, separating battery-backed resources ensures critical context retention through deep sleep cycles without impacting core logic availability.
Intelligent power management is realized through full ACPI (Advanced Configuration and Power Interface) interoperability across all power states (S0–S5). Each subsystem can be independently transitioned between active, idle, and deep-sleep modes, achieving block-level granularity. Programmable control over sleep and wake conditions enables engineers to fine-tune energy consumption in response to dynamic workloads. Real-world experience demonstrates that explicit block gating—especially of communication interfaces or processing cores—can multiply idle-state battery lifetimes without sacrificing functional readiness.
The integrated Power-On-Reset (POR) framework anchors system stability. Combining an internal glitch-immune reset generator with support for external reset signals, the solution guarantees consistent system bring-up even under volatile supply conditions. Programmable reset pulse durations expand resilience across variable platform topologies, mitigating issues such as slow-ramping or heavily filtered supplies. In complex designs, this flexibility reduces the probability of indeterminate logic states during boot, a common source of field-level reliability issues.
Timer architectures form the backbone of deterministic event scheduling and power-aware supervision. The device features multiple watchdog timers, programmable 16- and 32-bit timers, and dedicated hibernation counters. This multi-tiered timing fabric enables distributed control over subsystem wake events while enforcing system integrity through watchdog supervision. Direct configuration of timer watchdog thresholds allows for nuanced fault recovery strategies, often paramount in remote or unattended deployments.
Low-power sleep support extends to all functional blocks, enforced through clock and power gating at both subsystem and IO levels. Wake sources are diversified: GPIOs are sensitive to both logic transitions and edge events, while PS/2 and SMBus wake mechanisms respond to bus activity in real time. Experience indicates that proper configuration of wake-capable inputs—particularly filtering for expected traffic patterns—optimizes responsiveness without incurring spurious power consumption, a common pitfall in noise-prone environments.
These capabilities are orchestrated via ACPI-compliant register banks, with seamless transitions between firmware-driven and hardware-autonomous operation. By localizing control policies in programmable registers, the MEC1322-LZY-C0 minimizes firmware overhead and accelerates power state shifts. This architecture not only enhances energy efficiency through aggressive gating but also insulates system design from platform-specific quirks, supporting cleaner abstraction layers and faster bring-up during development. Ultimately, the combination of granular power partitioning, robust reset logic, and flexible clock management empower the MEC1322-LZY-C0 to underpin highly adaptive embedded platforms, aligning hardware efficiency with system-level performance expectations.
General Purpose I/O and Peripherals in MEC1322-LZY-C0
General Purpose I/O and Peripherals in the MEC1322-LZY-C0 platform deliver a feature-rich interface portfolio tailored for embedded system flexibility and scalability. At the core is the interrupt controller, supporting up to 240 independent sources. The hardware event aggregation engine enables deterministic response even in I/O-intensive platforms, while programmable priority assignment facilitates streamlined interrupt latency tuning for real-time applications. This configuration underpins fluid task management in complex environments, such as embedded controllers supporting advanced power sequencing or platform management.
Timers and hibernation event counters furnish granular event tracking, crucial for low-power state transitions or metered peripheral polling. Synchronization between power domains is thereby achieved with precision; typical implementation scenarios include wake-on-event logic in mobile designs or periodic sensor measurements in edge devices. The programmable PWM units—each offering 16-bit resolution—are directly mapped to LED dimming, fan modulation, or backlight management. Their dedicated output modules reduce CPU intervention, ensuring both visual fidelity and long-term component reliability under varying thermal and electrical loads.
Fan tachometer inputs, integrated with on-chip RPM measurement and control algorithms, cover operational ranges from 500 to 16,000 RPM. Embedded feedback mechanisms enable closed-loop fan speed regulation with minimal firmware overhead, which is instrumental in thermal management subsystems for laptops or industrial control units. This tight integration streamlines compensation for dynamic thermal loads by directly regulating cooling profiles within hardware.
The SMBus 2.0 controller suite exemplifies robust bus communication topology. With four EC-based channels, each supporting multi-master and dual-slave configurations, design flexibility is maximized—facilitating fault-tolerant, multi-domain battery or power supply control. Advanced bus arbitration, standby support, and clock stretching extend compatibility with a broad array of battery packs, sensor hubs, and control peripherals while sustaining up to 1 Mbps throughput. The flexible role assignment and arbitration logic reduce common race conditions and deadlocks found in bus-centric system architectures.
The 10-bit general-purpose ADC module, with five independently selectable channels, efficiently interfaces with voltage domains up to 3.3V and provides conversions in under 12μs. Its accurate internal reference (3.0V) enables reliable battery monitoring, temperature sensing, or custom analog input designs. Direct sampling minimizes external component count, facilitating rapid signal acquisition for PMIC telemetry, fan tacho signal conversion, or environmental sensor integration. Careful PCB routing and reference decoupling further enhance noise immunity, ensuring measurement integrity within dense system layouts.
GPIO flexibility remains a central advantage: up to 144 individually configurable, low-power general-purpose I/O lines offer a rich array of multiplexed peripheral and function options. Each pin can be power-gated, support wake sources, and participate in state emulation—factors that directly contribute to aggressive platform power budgeting. This granularity is particularly advantageous in designs that demand fine control over discrete enable sequences, such as embedded security modules, chassis intrusion detection, or advanced user interface panels.
UART implementation adheres to industry-standard 16550 protocols, enabling seamless serial integration across legacy and high-speed applications (50 baud to 2 Mbps), with selectable clocks and direct RS-232 compatibility. Such versatility supports diagnostic console access, external debug bridges, and high-throughput firmware update paths. Isolation of clock domains mitigates crosstalk during concurrent data transfer scenarios, preserving signal fidelity and system reliability.
Complementary system blocks—including mailbox interconnects, a trace/debug port, BC-Link high-speed extensions, and programmable watchdogs—further reinforce platform robustness. These features guarantee scalable health monitoring, extensibility for proprietary protocol bridges, and comprehensive fault containment. Applied experience reveals that leveraging the MEC1322-LZY-C0’s native event aggregation with its flexible power domain control enables both rapid prototyping and sustained field reliability in systems where uptime, expandability, and precise control pathways are non-negotiable. The architecture’s cohesive integration approach continues to facilitate responsive and resilient designs in emerging embedded and industrial applications.
Security and Integrity Features of MEC1322-LZY-C0
Security and integrity in embedded controllers are most resilient when rooted in hardware, as implemented by the MEC1322-LZY-C0 platform. This controller addresses fundamental trust concerns via a hardware root-of-trust architecture, which anchors cryptographic identity and tamper-proof mechanisms directly on-silicon. The secure firmware loading architecture employs RSA-2048 and SHA-256 signature verification following PKCS #1 specifications, invoking validation procedures at every power cycle or host boot. Each firmware image is authenticated before execution, creating a deterministic gate for code acceptance. This prevents both accidental corruption—such as that caused by memory errors—and intentional attacks leveraging firmware manipulation. The hardware signature checker operates in real-time, independent of host software stack, ensuring code provenance remains verifiable even under adverse conditions and across attack surfaces ranging from supply chain to physical intrusion.
The controller complements its primary validation with resilient data storage: a battery-backed 64-byte memory block preserves essential power-fail registers and settings. This nonvolatile region maintains operational integrity through power loss scenarios and supports secure recovery and audit trails after outages. In applied environments, this persistent storage block reduces risks related to reconfiguration and tampering between sessions, fortifying the continuity of logical state and facilitating rapid forensics if anomalies are detected.
The layered approach to security—spanning root-of-trust, cryptographic validation, and robust configuration retention—accelerates compliance with industry security frameworks and government mandates. Deployments in regulated spaces benefit from inbuilt defense against firmware injection and rollback attacks, aligning endpoint behavior with the strictest policy baselines. System integrators gain leverage for remote update workflows, as signature validation precludes unauthorized modification when devices are field-deployed. The host-independent operation of security logic allows design teams to decouple trust models, optimizing for rapid threat response and easier auditability.
The integration of hardware-based integrity checks and secure persistence mechanisms reflects a shift from reactive patching toward proactive hardening at the silicon layer. This positions the MEC1322-LZY-C0 as a robust endpoint for platform security architectures, particularly in distributed or resource-constrained settings. The practical result is increased system uptime and reduced operational exposure, balancing simplicity for designers with advanced protection against contemporary attack techniques.
Package, Pinout, and Electrical Characteristics of MEC1322-LZY-C0

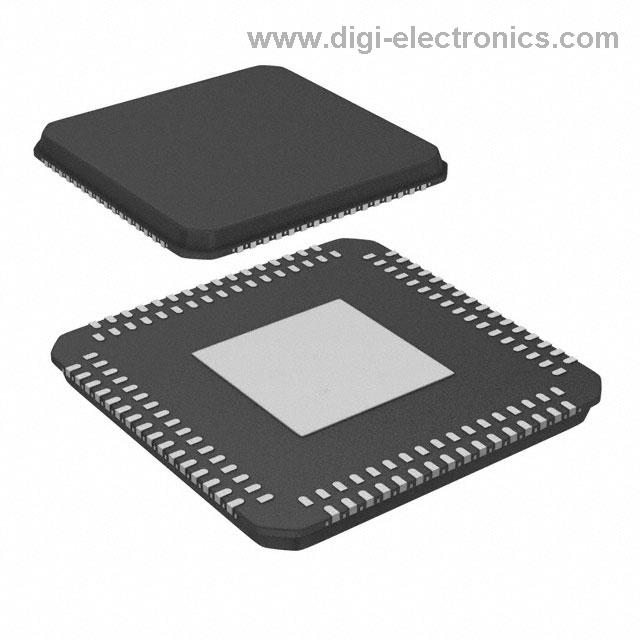

The MEC1322-LZY-C0 microcontroller comes in three industry-standard, space-efficient formats: 128-pin VTQFP, 132-pin DQFN, and 144-pin WFBGA. Each package offers optimized layout flexibility suitable for high-density PCB designs, enabling streamlined routing in embedded applications. The pin allocation is engineered for clear signal segregation, reducing crosstalk and supporting EMI-resilient systems.
From an electrical perspective, all device pins maintain 3.3V tolerance, prohibiting direct interfacing with legacy 5V logic. This enforces low-voltage domain interoperability, significantly reducing the risk of ESD-related degradation under typical embedded operating conditions. Careful examination of the supplied electrical characteristics is critical, since even minor deviations in IO voltage timing or input leakage current can propagate subtle system instabilities, especially in mixed-signal environments.
On the protection and system stabilization front, pin-level glitch filtering is implemented to prevent inadvertent logic toggling. This proves decisive during system state transitions—such as power-on, reset assertion, or fault recovery—where noise susceptibility is inherently elevated. Proper POR/Reset signal management is reinforced through robust signal conditioning and reset deglitching, helping ensure deterministic initialization, particularly in platforms deployed for safety-critical or low-power applications.
Special attention is required for the handling of open-drain outputs. These pins rely on externally supplied pull-ups whose values must reconcile speed-performance trade-offs with power consumption constraints. Care must also be taken to reference the correct power and reset control guidance, as undersized or omitted pull-ups may lead to indeterminate system states or delayed recovery after a brown-out event, a scenario regularly validated during early board bring-up.
The platform's GPIO resources offer deep configuration flexibility, supporting alternate functions and emulated power domains. Assigning these functions demands a methodical review of board-level schematics, given that improper multiplexing can inadvertently lock out critical functions or introduce power sequencing hazards. This underlines the necessity for an upfront pin-mapping review during both schematic capture and layout, especially when integrating with complex power topologies involving multiple supply rails and domain switching.
VCC1 and VBAT supply sequencing is another nontrivial factor; recommended sequencing protocols are vital to preempt undesired substrate backdrive, which can disrupt voltage reference integrity. Real-world deployment demonstrates that even transient sequencing violations may surface as intermittent brown-out resets, reinforcing the importance of proper power tree design and verification using operational oscillography.
The device's detailed package outline and pin mapping tables enable efficient PCB footprint planning, while the comprehensive electrical characteristics reference supports the design of reliable interconnects and ensures that drive capabilities meet system-level timing and power targets. Experience confirms that early-stage compliance with these specifications significantly compresses validation cycles and stabilizes platform behavior across temperature and supply voltage variation, forming a robust foundation for scalable product design.
Key Applications and Design Considerations for MEC1322-LZY-C0
The MEC1322-LZY-C0 represents a versatile embedded controller (EC) platform, offering a rich set of features optimized for diverse x86-based systems. At the silicon foundation, dual-code and data memory blocks enable granular partitioning, allowing critical routines and event handlers to reside separately from bulk firmware operations. This native memory segmentation leverages internal SRAM to flatten typical access contention, supporting deterministic interrupt latencies even during sustained host-EC exchanges or intensive peripheral tasks.
In notebook and mobile client applications, the device’s deep integration with ACPI layers and custom power domains aligns precisely with “Instant On” and deep-sleep requirements. The embedded control logic closely interacts with advanced power gating and wake vector logic, coordinating host CPU power cycles through event-driven aggregation blocks. By directly aggregating environmental and peripheral triggers within hardware, the controller mitigates firmware bloat; wake source proliferation is handled at register level, not through software polling, enhancing both response time and energy efficiency.
A distinct advantage of the MEC1322-LZY-C0 lies in its compatibility bridge between legacy interfaces and emerging protocols. On industrial mainboards and secure terminals, the device facilitates reliable interfacing for mixed-peripheral deployments—supporting sideband signaling, battery-backed event logs, and managed keyboard controllers with integrated security or authentication microcode. Engineers frequently implement the device’s protected logging blocks for tamper-evident event storage, ensuring forensic integrity while maintaining indexed access performance.
The platform’s hardware-assisted mailbox and message-passing mechanisms underpin robust host-EC communication, markedly reducing traffic from software-level polling. This asynchronous mailbox architecture not only trims bus noise and transactional latency but also simplifies custom command integration for OEM-defined extensions. Careful configuration of these APIs, mapped to specific host or peripheral events, allows for streamlined handshake routines and uncluttered firmware update flows.
When designing with the MEC1322-LZY-C0, optimal results stem from systematic control of power and sleep sequences. Each power island and clock domain should be managed through firmware hooks tightly bound to control registers, exploiting hardware signals for contention-free state transitions. Applied experience indicates that aggressive gating policies—particularly in multi-voltage or fanless deployments—realize measurable reductions in platform quiescent current. Testing in staggered sleep and instant-on scenarios further validates that firmware routines should prioritize hardware-cleared flags over purely time-based wake heuristics.
A key insight in deploying the MEC1322-LZY-C0 is to anchor system resilience and extensibility in the device’s event-driven architecture. By harnessing built-in aggregation logic and minimizing interrupt fan-out, engineers can construct scalable control flows without resorting to fragile software workarounds. This approach strengthens compatibility with diversified BIOS and custom firmware stacks, future-proofing deployments across both traditional and next-generation x86 hardware landscapes.
In synthesizing system integration, each subsystem and interface should be rigorously mapped to the controller’s native resources—mailboxes, event registers, or the SRAM blocks—ensuring minimal coupling between subsystems and efficient recovery from anomalous states. The engineered layering of hardware-accelerated features with modular firmware design not only accelerates production validation but establishes a robust baseline for subsequent firmware refinements.
Potential Equivalent/Replacement Models for MEC1322-LZY-C0
Evaluating replacement models for the MEC1322-LZY-C0 requires a systematic examination of underlying architecture and interface compatibility. Embedded Controllers (ECs) serve as tightly coupled gatekeepers in notebook and PC platforms, governing functions such as power management, keyboard control (KBC), ACPI event handling, and security features. Their deep integration means any substitution must satisfy stringent hardware and firmware requirements.
The Microchip MEC1501 Series distinguishes itself through progressive power management and advanced monitoring features. With expanded event handling logic and support for contemporary PMIC protocols, this series offers an upgrade pathway where the target application demands enhanced battery life and robust system diagnostics. The architectural continuity across the MEC family allows partial reuse of driver code, yet subtle variations in peripheral mapping, boot behavior, and I/O voltage domains require meticulous cross-verification and customized firmware builds. Field experience suggests that a phased migration—starting with controlled lab validation and moving to full platform deployment—greatly reduces downstream interoperability risks.
SMSC/Microchip MEC170x Series brings legacy-compliant EC+KBC integration, a decisive benefit for platforms relying on seamless migration from older controller designs. The close match in pinout and protocol layers supports board-level drop-in opportunities, provided that ACPI event timings and GPIO assignments are reconciled. Attention to embedded firmware initialization routines ensures compatibility with both existing BIOS branches and mixed-OS environments. A common challenge encountered is firmware restrictions on boot source selection; careful handling in the early boot stages mitigates operational anomalies.
The Nuvoton NPCE79xx Series inserts a versatile cross-vendor option, with proven support for ACPI, KBC, and LPC bridging. The adaptability to varied board architectures, combined with broad OS and toolchain backing, positions this family as a resilient solution amid supply chain interruption. Layered review reveals some nuanced differences—especially in security feature enablement and system wake pathways—requiring hands-on validation during system integration and stress testing. Prior deployment underscored the value of preemptive ACPI method patching, maintaining event responsiveness across firmware iterations.
ITE IT85/IT89 Series are characterized by their comprehensive interface support, encompassing keyboard scan engines, SPI TTL, hardware monitoring, and security peripherals. Industry deployment evidences their reliability and long-term support. However, interface supersetting—where unused functions exist—necessitates rigorous schematic review to avoid parasitic power drain or latent conflict with platform power states. Prototyping on reference hardware and iterative BIOS tuning typically yield optimal performance and stability, highlighting the importance of collaborative hardware-software co-development.
Successful migration depends on systematic datasheet analysis—covering protocol nuances, electrical characteristics, timing diagrams, and pin multiplexing. Firmware porting demands special emphasis on keyboard matrix handling, ACPI event mappings, and advanced security modules, such as TPM proxying or secure boot enforcement. Layering functional verification, starting from low-level register pokes to application-driven event sequences, facilitates early fault isolation. Close coordination between board-level design and production firmware teams ensures smooth ramp-up, minimal field returns, and compliance with evolving OEM requirements.
A forward-looking strategy prioritizes modular firmware architectures and flexible board routing, laying a foundation for rapid controller substitution as part of platform lifecycle management. Integrating controller selection into the initial design risk matrix enables proactive countermeasures against obsolescence and market volatility. Continuous monitoring of device revision updates and ecosystem support maintains robust, scalable embedded control across production cycles.
Conclusion
The Microchip Technology MEC1322-LZY-C0 embodies an advanced level of system integration specifically engineered for notebook and x86-based embedded platforms. At its core, the device leverages an ARM Cortex-M4 microcontroller, enabling efficient real-time task scheduling and power-sensitive operation. The inclusion of diverse peripheral modules—such as GPIOs, analog-to-digital converters, PWM generators, and hardware timers—minimizes the external component footprint, streamlining board layout and reducing BOM complexity.
The multi-protocol host interface capability supports direct connectivity to contemporary host processors over LPC, eSPI, and I²C/SMBus, allowing seamless drop-in adoption across a spectrum of firmware architectures. Hardware logic optimization within the controller reduces system response latency for critical keyboard-handling events and wake signals, enhancing user experience while upholding robust system security. Engineered power domains, with advanced sleep and deep idle support, enable real reduction of off-platform power leakage and maximize battery lifespans—essential in ultraportable device scenarios.
From a security standpoint, embedded cryptographic engines and tamper detection circuits mitigate vectors for unauthorized firmware manipulation or data breach. These features intersect naturally with modern root-of-trust frameworks, providing platform designers a hardware anchor for secure boot or system attestation—a point often overlooked in baseline EC selections, but increasingly important given today’s threat landscape.
Practical integration scenarios reveal that the MEC1322’s flexible staging of boot and runtime configuration parameters is well aligned to typical board bring-up and mass production processes. Live firmware updates via flashless boot options or field recoverability mechanisms can be staged without full teardown, reducing downtime and limiting service complexity. The device’s long availability roadmap and mature development ecosystems—spanning reference schematics, validated tools, and active technical support—directly address the continuity dilemmas frequently encountered in high-volume, lifecycle-sensitive product lines.
A key insight is the architectural foresight in balancing legacy compatibility—such as keyboard matrix scan logic and ACPI-compliant event handling—with modern security and energy management features. This duality positions the MEC1322-LZY-C0 not simply as a common EC, but as a platform enabler, bridging past and present requirements. Strategic design-in of this controller ensures resilient, scalable deployment across evolving notebook, industrial, and embedded landscapes, anchoring major system control and interface responsibilities within a reliable, future-oriented device.
