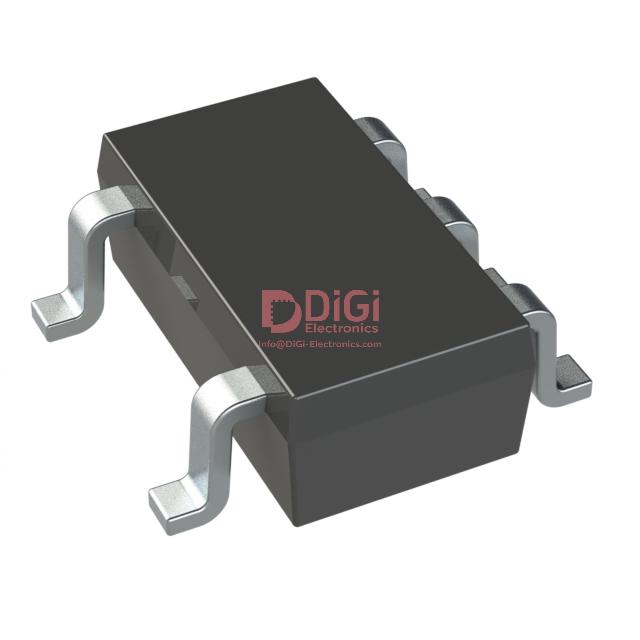

MCP73832T-2DCI/OT >
MCP73832T-2DCI/OT
Microchip Technology
IC BATT CNTL LI-ION 1CEL SOT23-5
56335 Pcs New Original In Stock
Charger IC Lithium Ion/Polymer SOT-23-5
Request Quote (Ships tomorrow)
*Quantity
Minimum 1
MCP73832T-2DCI/OT Microchip Technology
5.0 / 5.0 - (211 Ratings)

MCP73832T-2DCI/OT

Product Overview

1386663

DiGi Electronics Part Number

MCP73832T-2DCI/OT-DG
MCP73832T-2DCI/OT

Description

IC BATT CNTL LI-ION 1CEL SOT23-5

Inventory

56335 Pcs New Original In Stock
Charger IC Lithium Ion/Polymer SOT-23-5
Quantity
Minimum 1

Purchase and inquiry

Quality Assurance

365 - Day Quality Guarantee - Every part fully backed.

90 - Day Refund or Exchange - Defective parts? No hassle.

Limited Stock, Order Now - Get reliable parts without worry.

Global Shipping & Secure Packaging

Worldwide Delivery in 3-5 Business Days

100% ESD Anti-Static Packaging

Real-Time Tracking for Every Order

Secure & Flexible Payment

Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more

All payments encrypted for security

In Stock (All prices are in USD)
  • QTY Target Price Total Price
  • 1 1.6750 1.6750
Better Price by Online RFQ.
Request Quote (Ships tomorrow)
* Quantity
Minimum 1
(*) is mandatory
We'll get back to you within 24 hours

MCP73832T-2DCI/OT Technical Specifications

Category Power Management (PMIC), Battery Chargers

Manufacturer Microchip Technology

Packaging Cut Tape (CT) & Digi-Reel®

Series -

Product Status Active

Battery Chemistry Lithium Ion/Polymer

Number of Cells 1

Current - Charging Constant - Programmable

Programmable Features Current

Fault Protection Over Voltage

Charge Current - Max 500mA

Battery Pack Voltage 4.2V

Voltage - Supply (Max) 6V

Interface -

Operating Temperature -40°C ~ 85°C (TA)

Mounting Type Surface Mount

Package / Case SC-74A, SOT-753

Supplier Device Package SOT-23-5

Base Product Number MCP73832

Datasheet & Documents

HTML Datasheet

MCP73832T-2DCI/OT-DG

Environmental & Export Classification

RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Additional Information

Other Names
MCP73832T-2DCI/OTTR
MCP73832T2DCIOT
MCP73832T-2DCI/OTCT
MCP73832T-2DCI/OTDKR
MCP73832T-2DCI/OT-DG
Standard Package
3,000

MCP73832T-2DCI/OT Charge Controller: Technical Insights and Application Guidelines for Engineers

Product Overview: MCP73832T-2DCI/OT

The MCP73832T-2DCI/OT exemplifies precision charging in compact single-cell lithium-ion and lithium-polymer designs, demonstrating compatibility with both cost and spatial constraints found in modern portable systems. Integration of a pass transistor and current sense circuitry directly on-chip eliminates the need for external components, streamlining the BOM and PCB layout, particularly beneficial where every millimeter of board space and every penny of cost matters in high-volume production. Reverse discharge protection further increases reliability in battery-powered architectures, guarding against cell drain and damage in scenarios where power sources may fluctuate or disconnect unexpectedly.

Voltage regulation is versatile, realized via selectable presets—4.20V, 4.35V, 4.40V, and 4.50V—accommodating the evolving chemistry profiles of both lithium-ion and lithium-polymer cells. This flexibility can drive improvements in cycle life or energy density, as charging parameters can be matched to various manufacturer specifications or operational requirements without redesign. Programmable charge currents from 15mA to 500mA offer granular control, supporting both low-capacity microbattery configurations and moderate-rate power systems. Engineering experience consistently shows that conservative current settings are instrumental in maintaining long-term battery health, especially when thermal considerations and environmental stresses cannot be tightly controlled.

Thermal regulation within the MCP73832T-2DCI/OT is engineered to impose safe operating boundaries even in high-density designs, moderating charge rates in response to junction temperature rise. Direct exposure to transients and ambient fluctuations from -40°C to +85°C is not uncommon in fielded devices, particularly those mounted in industrial, automotive or consumer contexts. The IC’s specified temperature range ensures predictable operation, minimizing the risk of charge control errors under hostile thermal or environmental loading.

Practical deployment of the MCP73832T-2DCI/OT frequently highlights the benefits of its SOT-23-5 package: the reduced footprint not only aids in miniaturization but eases thermal management when placed near heat-dissipating elements or ground planes. Field performance data routinely illustrates stable termination, negligible standby losses, and low dropout voltage across diverse applications—from wearable sensors requiring extended battery life to handheld medical equipment demanding recharge efficiency and strict safety compliance.

A core insight emerging from repeated integration is the value of precise analog control and intelligent charge termination, both intrinsic to the MCP73832 architecture. Its ability to serve as a drop-in solution across changing requirements, without compromise in efficiency or safety, positions it as an enabling technology in scalable battery management systems. The importance of balancing charge rate versus longevity and maintaining operational resilience in dynamic environments is directly addressed by this controller’s design, fostering confidence in both development cycles and long-term product deployment where reliability is non-negotiable.

Functional Principles and Charge Management Algorithm of MCP73832T-2DCI/OT

The MCP73832T-2DCI/OT exemplifies robust management of lithium-ion battery charging through a layered constant-current/constant-voltage (CC/CV) algorithm. The charging cycle is dynamically segmented to accommodate cell condition, beginning with a preconditioning phase that delivers a gentle, low current to cells exhibiting deep discharge. This phase ensures cell chemistry remains stable and mitigates degradation from abrupt current influx, a subtle yet critical parameter observable when integrating MCP73832T-2DCI/OT modules into battery-powered embedded systems.

Transitioning into the fast-charge stage, the device regulates output to a constant current, driving rapid energy replenishment until the cell voltage approaches the regulation threshold. Internally, precision voltage sensing governs the switch to constant-voltage mode. The regulation voltage is tightly held—a function crucial for safeguarding against overcharging and thermal runaway, particularly evident when designing lightweight consumer products where battery integrity directly correlates with expected operational lifecycle.

Charge termination within the MCP73832T-2DCI/OT framework leverages programmable current thresholds, selectable from 5% to 20% of the original fast charge value. This adaptive cutoff allows engineers to optimize for either minimal charge time or extended battery lifespan depending on application specifics. For instance, in sensor nodes where deep cycling is frequent, higher cutoff percentages aid in rapid turnaround without excessive stress on battery chemistry, while in portable medical devices, lower thresholds extend operational life by ensuring fuller charge cycles.

The algorithm further incorporates automatic recharge, activating when cell voltage falls below a predefined level. This feature enables persistent readiness by maintaining batteries at close to full charge, especially valuable in standby-centric systems where immediate power availability is non-negotiable. Embedded protections such as undervoltage lockout (UVLO) shield the system from erratic supply line behavior, preserving both IC and battery health over extended deployment periods. Battery presence detection, provided by a microcurrent source, streamlines host-side logic and eliminates boot-time ambiguity about cell status, an insight that subtly benefits system reliability in unattended installations.

An open-drain charge status indicator facilitates straightforward integration with host controllers or external LED schemes, enabling tight feedback loops within charge control protocols. Practical implementation commonly reveals MCP73832T-2DCI/OT’s ability to reduce firmware complexity in status monitoring, expediting product iteration cycles.

In multi-profile field deployments, users find the device’s charge management algorithm adaptable across diverse chemistries and cell sizes, aided by accessible threshold configuration. The design philosophy reflects an engineering-centric approach, balancing intricate battery care mechanisms with implementation efficiency—revealing its merit most distinctly in modular platforms where flexibility and reliability are paramount. Advanced users leverage its predictable phase transitions and fault tolerance to architect scalable charging subsystems that underpin robust, resilient power architectures. The MCP73832T-2DCI/OT thus stands as a backbone element for precision power management tasks, with nuanced control over charge cycles designed to meet rigorous demands encountered in contemporary battery-dependent applications.

Key Electrical and Thermal Characteristics of MCP73832T-2DCI/OT

The MCP73832T-2DCI/OT embodies design principles that prioritize both electrical precision and thermal management for compact lithium-ion/Li-Polymer charging circuits. Central to deployment is respecting its supply limitations: operation requires a supply voltage range from [VREG(typical) + 0.3V] up to 6V, with a hard ceiling at 7V. Exceeding these bounds can rapidly compromise internal MOS structures, especially during transients. The ESD resilience embedded throughout—4kV human body model and 400V machine model—supports field reliability, particularly for applications in variable environments or during manual assembly and rework cycles where static exposure can occur.

Charge voltage accuracy is tightly controlled to ±0.75%. This precision is non-trivial; deviation outside this window impairs battery health, leading to diminished cycle count and operational lifetime. Deployments in battery-powered sensor nodes and medical devices rely on this attribute to meet long-term reliability mandates. The device’s thermal regulation functions by continually monitoring die temperature via integrated sensing. In sustained high-current, low-airflow scenarios, such as densely packed PCBs or wearable modules, the IC throttles charge current dynamically to maintain operational integrity. When the die temperature nears the 150°C limit, charging suspends rather than risking unbounded thermal excursion, resuming only after internal recovery cycles mitigate the heat buildup.

The SOT-23-5 footprint brings both miniaturization advantages and thermal concentration challenges. Its typical θJA of 130°C/W demands deliberate PCB-layer strategy: maximizing copper pour under the package markedly improves dissipation, especially in single-sided designs. Prototyping iterations often reveal that small adjustments in copper area or placement adjacent to ground-plane vias impact peak junction temperature by several degrees Celsius, shifting the safety margin under prolonged load. Storage temperature endurance, ranging from -65°C to +150°C, supports logistics and field deployment in harsh environments.

Reliable integration depends on balancing regulator tolerances, PCB thermal routing, and ambient exposure. Subtle layout choices—like positioning the MCP73832T-2DCI/OT near heat-sensitive passives or away from localized thermal sources—further enhance system robustness. Holistic evaluation must factor not only typical charging profiles but worst-case event scenarios, such as inductive spikes during system power-up. Leveraging its intrinsic protections while enhancing board-level thermal paths yields a resilient charging platform with predictable battery longevity, even under demanding operational cycles.

Pin Functions and Application Circuit Integration with MCP73832T-2DCI/OT

Pin configuration in the MCP73832T-2DCI/OT facilitates disciplined, efficient circuit integration by providing essential control and monitoring interfaces within a compact footprint. Each pin’s electrical function is tightly coupled to the charging process, dictating both operational stability and design flexibility. Starting with the VDD pin, reliable battery management hinges on consistent supply biasing. Incorporating a 4.7μF low-ESR ceramic capacitor close to VDD and referenced directly to ground significantly suppresses high-frequency transients and noise, which enhances internal regulator stability—a necessary condition for linear charge controllers. This is particularly critical in environments prone to supply fluctuations or inductive switching noise, where the bypass capacitor acts as a frontline filter.

Connecting VBAT directly to the battery’s positive terminal ensures minimal voltage drop and accurate cell voltage feedback. The parallel placement of a 4.7μF bypass capacitor is not just for EMC purposes; it stabilizes the control loop, mitigating potential oscillations during dynamic load transients or abrupt battery connection changes. Empirical experience shows that neglecting this capacitor, or using inadequate ratings, frequently results in undesired loop instability, especially when charging batteries with varying chemistries or shielded in physically distributed layouts.

The STAT open-drain output performs multidimensional roles in application circuits. Its capacity to drive an external LED directly or interface with digital logic enables concise and immediate charge status reporting. Leveraging internal pull-up resistors, designers achieve flexible interfacing with both discrete indicators and MCU-based system monitoring. It becomes straightforward to implement fault monitoring, charge-complete indications, or logic-driven state transitions, enabling system-level intelligence without overburdening the central controller.

Precise control over charging behavior is realized through the PROG pin. By selecting the programming resistor, charge current adapts seamlessly to battery specifications, form factor limitations, or application-specific thermal constraints. Floating the pin offers a low-power standby method, ensuring negligible quiescent draw—a vital optimization for deeply embedded or intermittently powered systems. Real-world integration often necessitates repeated tuning of the resistor value to reconcile thermal headroom and desired charge rates, especially in portable consumer electronics where PCB real estate dictates heat dispersion limitations.

The exposed thermal pad (EP), tied judiciously to ground, dramatically enhances thermal conductivity into the PCB’s ground plane, reducing junction temperature rise during peak load events. Application deployments in dense multi-layer boards consistently demonstrate that maximizing copper area under the EP, with ample thermal vias, yields lower temperature gradients, safeguarding both silicon integrity and long-term product reliability—a subtle yet crucial design consideration commonly overlooked in early prototyping phases.

System resilience and consistency emerge directly from disciplined adherence to recommended pin connections and localized component placement. Such practice mitigates parasitics, controls EMI, and aligns with best-in-class battery charging strategies. These insights reinforce the value of reviewing board layout at the earliest design stages, underlining that robust charging behavior is not simply attained through correct part selection, but more so through deliberate, detail-focused application of each pin’s unique role in the circuit architecture.

Design Considerations and Best Practices for MCP73832T-2DCI/OT Implementation

MCP73832T-2DCI/OT charger integration relies on disciplined system-level planning. At the core, the programmable current-setting resistor (RPROG) dictates the charge regime, making its selection pivotal for lithium-ion cell longevity and safety. Deriving the target charge current involves both electrical and thermal datasets from battery manufacturers; optimal RPROG values must balance rapid charge (typically at 1C) against cell stress, with headroom below the IC's 2C maximum. Upfront modeling of battery behavior under varying C-rates informs this choice, especially for smaller-capacity cells where even modest current discontinuities affect aging.

Input protection circuits constitute a primary defensive layer. When interfacing with hot-plug power sources—USB or AC adapters—fast-acting TVS diodes or low-clamping Schottky arrays efficiently suppress surges. Field failures often trace to unfiltered spikes; preemptive addition of inrush control, such as a series PTC thermistor, further limits exposure to overvoltage events. The physical arrangement and grounding topology of these protections influence EMC compliance, with star-point grounds reducing stray loop inductance and minimizing noise coupling.

Thermal design is shaped by the MCP73832T’s linear charging topology, where voltage differential between input and battery terminals translates directly to heat. Accurate estimation compounds power loss across all charge phases, not just peak current. Multi-layer PCB copper planes underneath the device form a de facto thermal spreader; simulation of temperature rise using actual trace geometries yields more actionable design margins than rules-of-thumb alone. Experience shows that aggressive via stitching under the thermal pad, in tandem with strategic placement of component clusters, can halve junction-to-ambient resistance, extending operational reliability.

Capacitor networks anchor phase stability during charge state transitions. At minimum, both VBAT and VDD pins require low-ESR ceramic capacitors (X7R or better, ≥4.7μF) placed as close to the IC as layout allows. In systems prone to cable-induced supply dips or abrupt load switches, supplementing with parallel bulk tantalum elements can suppress mid-frequency transients. The relationship between capacitance quality and charge algorithm responsiveness often surfaces in characterization tests, where undervalued or lossy capacitors cause infrequent but critical charge cycle interrupts.

Layout execution governs both signal integrity and system endurance. Minimizing trace length and maximizing cross-sectional area in the high-current path directly reduces resistive losses and voltage drop, which correlates to both faster charging and improved charge termination accuracy. Stacked via arrays embedded below the thermal pad efficiently wick heat; however, the design must avoid unintended antenna effects, managed by careful spacing and ferrite bead insertion along sensitive analog traces.

System-level robustness broadens with auxiliary measures. Reverse-blocking diodes, while sometimes omitted for cost, confer resilience during battery hot-swap or user misconnection, an often-overlooked source of device field returns. Utilizing the PROG pin for manual shutdown injects an additional safety axis, allowing either hardware overrides or embedded controller logic to halt charging dynamically in the case of fault detected or system mode transition.

Performance optimization of MCP73832T-2DCI/OT thus arises from an atomic perspective on each circuit node: every resistor, pad, and trace forms part of a tightly-coupled energy and signal ecosystem. Intuitive layout, active fault suppression, and thermal realism shift reliability from theoretical to practical; small iterative tweaks—like doubling copper thickness below the IC or fine-tuning RPROG following actual battery lot characterization—yield measurable field longevity. Forward design anticipating corner-case scenarios, paired with controlled validation steps, transforms the MCP73832T-2DCI/OT from datasheet component to robust system building block.

Package and Layout Details for MCP73832T-2DCI/OT

The MCP73832T-2DCI/OT utilizes the widely adopted 5-lead SOT-23 package, facilitating streamlined integration into dense PCB environments. Microchip provides explicit footprint and land pattern specifications, which define both the mechanical envelope and critical spacing for reliable solder joints. Adhering precisely to these guidelines is essential, as small variations in pad geometry or solder mask clearance can create latent failure points or impact long-term charge cycle integrity.

Optimized PCB routing remains fundamental for maximizing the performance envelope of this Li-Ion/Li-Polymer charge management controller. High-current traces must maintain minimal inductive and resistive impedance, enabling the device’s feedback and control loops to function without voltage droop or transient-induced noise. This requires attention to trace width calculations—particularly as copper thickness varies in real-world applications—and deliberate via placement to avoid bottlenecks. Strategic use of solid ground planes reduces overall loop area, mitigating electromagnetic interference and further stabilizing charge profiles, especially during rapid charge pulses or when paralleling batteries.

The integrated exposed pad, although not required for electrical operation, presents an opportunity for thermal interface engineering. By directly soldering this pad to a designated PCB copper area and connecting it to a robust ground plane, thermal resistance between the device and ambient environment is substantially reduced. This approach is particularly advantageous in compact designs with limited airflow, where board-level heat sinking is the only practical method of preventing thermal shutdowns during sustained fast charge periods. Empirical data consistently confirms that leveraging the exposed pad can lower junction temperatures by significant margins—improving reliability, extending device lifespan, and even permitting higher average charging currents without degrading cell health.

Proper land pattern and pad utilization underpin not only solderability but the device's electrical and thermal infrastructure. System-level observations demonstrate that suboptimal layouts—such as insufficient copper for heat spreading or improper placement relative to current paths—lead to avoidable efficiency losses and premature derating under real-world cycling. Proactively modeling worst-case scenarios in the layout stage, including transient and thermal simulations, yields quantifiable gains across device performance metrics. These best practices establish the MCP73832T-2DCI/OT as a robust platform for developing compact, high-reliability battery-powered systems, where margin-critical power management directly impacts end-product quality.

Typical Applications of MCP73832T-2DCI/OT

The MCP73832T-2DCI/OT, a highly integrated Li-Ion/Li-Polymer charge management controller, underpins a diverse range of power delivery solutions in compact and mobile electronics. Its architecture consolidates charge management, including constant-current/constant-voltage (CC/CV) regulation and preconditioning, within a single package, driving both efficiency and design simplification in product development funnels where PCBA real estate is at a premium. The device’s low external component requirement not only lowers bill-of-materials cost but also accelerates time-to-market by reducing complexity in both layout and inventory qualification.

At the circuit level, the MCP73832T-2DCI/OT’s programmable charge current and automatic charge termination allow for fine-grained control and safe battery operation—a critical consideration in thermal-sensitive handhelds, such as smartphones, wearables, and digital imaging devices. Compliance with USB power source specifications (regulated 4.2V output and current-limited charging) distinguishes the device for direct USB-powered designs. This native compatibility circumvents the need for external switching devices or downstream regulators, which often introduce inefficiency and footprint penalties in applications like Bluetooth audio, wireless sensors, or MP3 players. The push of miniaturization trends in consumer electronics has made such high-integration charging ICs indispensable for achieving robust and aesthetic industrial form factors.

In battery management system (BMS) deployments, the MCP73832T-2DCI/OT operates effectively both as a standalone unit and as a subordinate module within microcontroller-coordinated ecosystems. Its enable input and status indication pins permit granular handshakes with host processors, which is particularly valuable in platforms requiring intelligent power path management—enabling seamless charge/discharge transitions or system sleep modes. Over the deployment lifecycle, engineers have noted that the device’s linear charging profile and temperature monitoring features effectively balance charge speed with long-term battery maintenance, minimizing the risk of thermal runaways or overcharge degradation in confined enclosures.

Field experience reveals that system validation is streamlined by the MCP73832T-2DCI/OT’s predictable operating characteristics and robust fault handling. For instance, during functional safety assessments and EMC pre-compliance testing, the IC’s low quiescent current and stable regulation lessen the burden of thermal hotspots or power surges—challenges common in iterative portable device prototypes. In multiproduct ecosystems—where a unified charging solution simplifies support and post-deployment maintenance—the device’s operational uniformity and wide input tolerance have enabled architectural consistency across project variants.

A core insight emerges: integrating charge management at the IC level is no longer a point solution but a systemic enabler within electronic product architecture, especially as USB-C and standardized power delivery influence future product interoperability. The MCP73832T-2DCI/OT’s blend of charging intelligence, compactness, and application flexibility thus represents not just a tactical component choice, but a lever for broader engineering efficiency in scalable hardware platforms.

Potential Equivalent/Replacement Models for MCP73832T-2DCI/OT

For engineers evaluating replacements or upgrades for the MCP73832T-2DCI/OT, focusing on device-level compatibility is paramount. The MCP73831/2 series, being architecturally aligned with the original part, offers a parallel implementation of linear Li-Ion/Li-Polymer charging with constant current/constant voltage (CC/CV) regulation. These ICs use similar charge-state determination logic with programmable charging currents via external resistors, supporting flexible battery management across diverse portable platforms.

Among the MCP73831/2 variants, key differentiators arise in the form of output indicator logic (open-drain vs. push-pull), preconditioning thresholds, and available voltage regulation (typically 4.2V but with options extending to 4.35V for advanced chemistries). Selection within the family must therefore consider not only outright electrical footprints—such as identical SOT-23-5 packaging and pin mapping—but also nuanced electrical parameters. For instance, input voltage tolerance and quiescence may affect efficiency and thermals, especially in dense assemblies or environments with broad supply fluctuation.

Verifying backward compatibility involves robust review of absolute maximum ratings, charge enable/disable behavior, and any changes in the internal reference design that could affect timing or safety features. Incremental differences in undervoltage lockout, charge termination current thresholds, and thermal regulation responses can subtly alter battery cycle life and system safety. Field experience shows that in high-volume consumer devices, even small deviations—like LED indicator current sink capability or the internal reference drift over temperature—can necessitate minor PCB or BOM modifications.

Onboarding an MCP73831 as a substitute often yields improved status notification granularity, given the richer matrix of status output types. This capability can be leveraged in more intelligent charge state reporting, reducing host MCU polling or enabling more detailed GUI feedback for end-users. However, when migrating designs for lower standby losses, attention must be paid to any increase in supply current in standby or shutdown state; for ultra-low power projects, these differences directly impact battery float and device shelf-life.

Cross-referencing these Microchip devices within ongoing or legacy projects underscores the importance of a layered evaluation—starting from physical interchangeability, extending through regulation algorithms, and culminating in subtle operational deltas. Each replacement consideration presents a tradeoff space between design effort, system performance, and manufacturability, underlining the necessity of comprehensive parametric comparison over simple part-number substitution. In effect, the MCP73831/2 family offers not just a replacement pathway, but also a platform for incremental functional enhancement and greater design resilience in portable power applications.

Conclusion

The MCP73832T-2DCI/OT charge management controller condenses fundamental charging protocol control into a compact SOT-23-5 package, presenting a solution optimized for modern lithium-ion and lithium-polymer cells. At its core, the device integrates charge algorithms with precision voltage and current regulation, minimizing the need for external circuitry. The on-board charge termination and automatic recharge features support consistent battery conditioning, thereby extending cell life and maintaining performance stability across charge cycles.

Configurable charge parameters through an external resistor allow fine-tuning of the charge current to suit diverse cell capacities and chemistries. When sizing this resistor, consideration must be given to balancing charge speed with cell longevity, as excessive current can elevate cell temperature and accelerate degradation. The device’s inherent safety features—including thermal regulation, overvoltage protection, and reverse discharge prevention—embed a robust defensive layer, mitigating risk in both consumer-grade and industrial deployments where electrical and thermal transients are prevalent.

Thermal management is a critical axis of system-level reliability. The MCP73832T-2DCI/OT’s thermal foldback mechanism throttles charge current to limit device temperature, supporting deployment in physically constrained enclosures where heat dissipation paths are limited. Effective PCB layout strategies, such as maximizing copper pour under the IC and minimizing high-current trace lengths, enhance heat spreading, further leveraging the device’s built-in protection.

Integration also extends to system control signaling; the device’s charge status outputs readily interface with MCUs or indicator LEDs, simplifying host coordination and user feedback. In practical device engineering, careful sequencing of input, battery, and system connections avoids voltage sag or inadvertent lockout, which can otherwise complicate the design of portable products with hot-swappable or multi-voltage power sources.

Supply chain considerations warrant scrutiny of compatible supporting passives—particularly the input bypass and charge-path capacitors—to ensure low ESR and appropriate voltage ratings under real-world load scenarios. These nuances, often validated in bench prototypes, directly influence EMI performance and charge stability, and should not be deferred until late-stage debug.

In performance-focused and space-constrained systems, the MCP73832T-2DCI/OT delivers compelling value compared with more complex PMICs, particularly where fast design cycles and predictable regulatory compliance are priorities. The integration level, combined with field-proven operational robustness, argue for its selection as a dependable building block in battery-powered architectures, provided due diligence is applied to thermal, electrical, and procedural integration at both schematic and layout stages.

View More expand-more

Catalog

1. Product Overview: MCP73832T-2DCI/OT2. Functional Principles and Charge Management Algorithm of MCP73832T-2DCI/OT3. Key Electrical and Thermal Characteristics of MCP73832T-2DCI/OT4. Pin Functions and Application Circuit Integration with MCP73832T-2DCI/OT5. Design Considerations and Best Practices for MCP73832T-2DCI/OT Implementation6. Package and Layout Details for MCP73832T-2DCI/OT7. Typical Applications of MCP73832T-2DCI/OT8. Potential Equivalent/Replacement Models for MCP73832T-2DCI/OT9. Conclusion

Reviews

5.0/5.0-(Show up to 5 Ratings)
晨***榮耀
Dec 02, 2025
5.0
DiGi Electronics的物流效率很高,商品包裝用心,收到時完全沒有損傷!
春***時
Dec 02, 2025
5.0
很喜歡DiGi Electronics的產品,價格親民,品質一流,用起來非常放心。
Océ***alme
Dec 02, 2025
5.0
Tout était parfait : livraison express et emballage très fiable.
Baise***toile
Dec 02, 2025
5.0
L’attitude proactive de leur équipe de support facilite la résolution rapide de tous nos problèmes.
Fol***ouce
Dec 02, 2025
5.0
Le suivi logistique était très clair, tout s'est déroulé parfaitement.
Blue***Dream
Dec 02, 2025
5.0
DiGi Electronics provides top-notch value, combining quality with affordability.
StarL***tGlow
Dec 02, 2025
5.0
Their staff is friendly and professional, making each visit pleasant.
Glow***Glen
Dec 02, 2025
5.0
Their post-sale service includes helpful tutorials and troubleshooting, improving user satisfaction.
Lazy***laby
Dec 02, 2025
5.0
The quality control at DiGi Electronics is top-notch, providing peace of mind with every purchase.
Lu***uxe
Dec 02, 2025
5.0
Their thorough packaging process kept everything secure, preventing any damage during transit.
Publish Evalution
* Product Rating
(Normal/Preferably/Outstanding, default 5 stars)
* Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.

Frequently Asked Questions (FAQ)

What are the key design-in risks when using the MCP73832T-2DCI/OT in a thermally constrained PCB layout, and how can they be mitigated?

When integrating the MCP73832T-2DCI/OT into compact or high-ambient temperature designs, thermal dissipation becomes critical due to its SOT-23-5 package and up to 500mA charge current. Without adequate copper pour or thermal vias, junction temperature can exceed safe limits even within the -40°C to 85°C ambient rating. To mitigate this, use at least 30 mm² of exposed copper connected to the GND pin, avoid placing near other heat-generating components, and perform thermal validation under worst-case conditions (6V input, full charge cycle). Consider derating charge current via PROG resistor if thermal testing shows excessive rise above 85°C.

How does the MCP73832T-2DCI/OT compare to the TP4056 in terms of charge termination accuracy and reliability for Li-ion battery applications?

The MCP73832T-2DCI/OT offers superior charge termination consistency compared to the TP4056, particularly in noisy environments, due to Microchip's tighter voltage regulation (±0.75% at 4.2V vs. ±1.5% on TP4056). Unlike the TP4056, the MCP73832T-2DCI/OT lacks built-in trickle charge for deeply discharged cells, so external monitoring may be needed for safety below 3.0V. Additionally, the MCP73832T-2DCI/OT provides overvoltage protection, enhancing long-term reliability in systems with unstable power sources where the TP4056 might risk overcharging.

Can the MCP73832T-2DCI/OT be safely used with a 5.5V input source like a USB-PD power bank, and what are the potential failure modes?

Yes, the MCP73832T-2DCI/OT supports supply voltages up to 6V, making it compatible with standard 5V and occasional 5.5V USB-PD outputs. However, ensure transient spikes from the source do not exceed the 6V absolute maximum rating—use a low-ESR ceramic capacitor (≥1μF) close to the VDD pin to suppress line noise. Prolonged operation near 5.5V at maximum charge current increases internal power dissipation, raising thermal stress; combining this with poor PCB layout could lead to premature device degradation or thermal shutdown-induced charge interruptions.

What are the implications of replacing a MCP73831T-2DCI/OT with the MCP73832T-2DCI/OT in an existing design, and are there any hidden compatibility issues?

Swapping the MCP73831T-2DCI/OT with the MCP73832T-2DCI/OT is generally safe—both are pin-to-pin compatible and support 4.2V Li-ion charging with programmable current. However, the key difference lies in fault signaling: the MCP73832T-2DCI/OT has a higher pull-up voltage tolerance on the STAT pin (up to 6V) compared to the MCP73831, reducing risk when interfacing with 5V microcontrollers. Also verify PROG resistor value (typically 1.5kΩ for 500mA), as mismatched resistors from legacy designs may lead to incorrect charge current settings. No PCB redesign is needed, but validate charge cycle timing and status detection logic.

What are the long-term reliability concerns when using the MCP73832T-2DCI/OT in battery backup systems with frequent charge-discharge cycles?

In frequent cycling applications, reliability of the MCP73832T-2DCI/OT depends on maintaining stable thermal and voltage conditions. Repeated thermal cycling due to high charge currents without sufficient cooling can accelerate package fatigue and solder joint failure. Additionally, operating near the 6V supply limit over long periods may increase stress on internal regulators. To enhance longevity, limit charge current to 300–400mA unless fast charging is essential, use high-quality input/output capacitors (X7R or better), and avoid charging at temperature extremes. Its ROHS3 compliance and MSL-1 rating confirm strong resistance to environmental degradation, but proper system-level thermal management remains critical for sustained performance.
