Product overview: MCP73213T-B6SI/MF charge management controller
The MCP73213T-B6SI/MF integrates advanced linear charging algorithms with dual-cell lithium chemistry support, establishing precise charge control for applications demanding both efficiency and compactness. At the core, its linear mode control efficiently manages the charging current and voltage across two cells, ensuring that each stage—preconditioning, fast charge, and constant voltage termination—adheres to manufacturer-recommended charge profiles. Tight regulation on charging cut-off reduces risk of cell imbalance, addressing a frequent pain point in multi-cell topologies that otherwise suffer from premature cell degradation or uneven state-of-charge.
Physically, the adoption of a small 10-lead DFN package enables seamless incorporation into dense PCB layouts, supporting high system integration without compromising thermal performance. The thermal pad and optimized pinout facilitate efficient heat dissipation during high-current operation, sustaining reliability even during extended charging cycles. This package choice underlines the device’s suitability where PCB real estate is at a premium, such as in high-functional handheld systems or tightly packed cradles.
On the input side, the 18V maximum input voltage tolerates transient surges typical when unregulated adapters or varying power sources are involved. Protection subsystems—including input overvoltage, charge safety timers, and thermal regulation—coordinate to prevent damage from fault conditions. This level of robustness is especially critical in field-deployed or consumer-facing equipment where input anomalies are not always avoidable. Furthermore, the design inherently simplifies supply chain logistics by accepting a wide variety of off-the-shelf adapters, lowering BOM costs in cost-sensitive deployments.
Applied in portable media devices, netbooks, or two-way radios, rapid and reliable charging cycles support increased user uptime and reduced maintenance windows. In practical use, integrating this controller offers predictable charging performance under a wide envelope of environmental and operational anomalies. Engineers leveraging such a platform gain the advantage of streamlined compliance to global safety standards since the device mitigates the majority of battery-related hazards at the hardware level.
In charging cradle design, the controller removes the complexity of discrete solution development, reducing both design cycle time and field failure rates. This establishes a repeatable path to market for iterative product lines or modular battery ecosystems, where rapid scalability and safety assurances coexist. By directly managing cell balancing and charge termination, the MCP73213T-B6SI/MF enables systems where reduced downtime, battery longevity, and user safety form non-negotiable requirements.
A key insight emerges in coupling this device with low-cost adapter inputs and diverse field use-cases: system-level reliability is increased not just by robust charging, but by the integration of proactive fault monitoring. This approach reinforces resilience to unforeseen power conditions and underscores the fundamental value of intelligent, application-adapted charge management in contemporary portable and embedded systems.
Architecture and functional features of MCP73213T-B6SI/MF
The MCP73213T-B6SI/MF exemplifies a highly integrated battery management solution engineered for space-constrained applications requiring robust performance and high functional density. Central to its architecture is the consolidation of multiple protective and operational circuits—input overvoltage safeguard, pass transistor, precision current sensing, and reverse discharge mitigation—all embedded on-chip. This integration streamlines BOM complexity, significantly reducing peripheral dependencies and enabling dense PCB layouts, a notable benefit for portable and high-reliability designs.
Charging control leverages a constant current/constant voltage (CC/CV) profile with thermal regulation. The internal thermal monitoring dynamically modulates charge current during elevated temperature events, preventing thermal runaway and preserving electrochemical integrity over successive charge cycles. This direct management of heat, paired with accurate current sense feedback, is crucial in maintaining system reliability during uninterrupted use, especially in environments with variable ambient conditions or intensive duty cycles.
Charge parameter programmability adds substantial adaptability. Variable current settings (130 mA to 1100 mA) deliver tailored charging profiles to suit diverse lithium-ion configurations. Likewise, selectable factory voltage presets (8.20V, 8.40V, 8.70V, 8.80V) allow for precise compatibility with multi-cell stack requirements, ensuring safe charge limits regardless of exact cell chemistry or tolerances. In real-world applications, this flexibility in charge algorithms facilitates optimal power budgeting, especially when balancing peak delivery against thermal envelope and battery lifetime considerations.
The device extends operational reliability through autonomous protective functions. Undervoltage lockout (UVLO) inhibits operation below threshold input levels, thwarting erratic behaviors due to supply droop. Preconditioning activates for cells in deeply discharged states, initiating a gentle recharge process that mitigates potential for damage due to abrupt full-rate charging. Automatic recharge sensing obviates manual intervention, maintaining cells at optimal charge without user oversight. The provision of status outputs enables seamless system monitoring and integration, supporting advanced telemetry scenarios where real-time battery diagnostics inform system control.
Robust operation across an extended temperature range of -40°C to +85°C underscores suitability for industrial, automotive, and outdoor electronics. Consistent regulatory performance in low temperatures reduces failure rates in field deployments, echoing experiences where charger reliability is paramount for mission-critical operations. These design intentions mirror a trend toward highly automated energy management requiring minimal oversight, coupled with granular system-level configurability.
A nuanced viewpoint reveals that combining precise charge control with adaptive thermal regulation and autonomous safety functions creates an environment for both high battery longevity and system uptime. The MCP73213T-B6SI/MF’s layered technology stack is emblematic of modern battery management, emphasizing not only miniaturization but also holistic protection and configurability. Such characteristics drive practical engineering choices toward platforms where lifecycle reliability and spatial efficiency are non-negotiable.
Electrical characteristics and reliability in MCP73213T-B6SI/MF
The MCP73213T-B6SI/MF integrates key electrical characteristics that address both typical and extreme operational scenarios in battery management systems. Its design supports an 18V absolute maximum input, providing significant headroom for transient voltage spikes often encountered during supply fluctuation or hot-plug events. The inclusion of robust input over-voltage protection, activating above 13V, forms a critical safeguard for downstream components that may exhibit lower voltage tolerance, preventing inadvertent damage due to unpredictable surges. Such input resilience is paramount in multi-cell Li-ion systems or industrial environments where supply integrity is not always assured.
Electrostatic discharge robustness is realized through high-threshold ESD protection measures, rated at ≥4 kV for the human body model and ≥300 V for the machine model. This capability sustains device reliability during assembly, handling, or deployment in environments prone to static events, such as automated production lines or open-format device bays. Experience shows that this level of ESD performance effectively reduces device failure rates in field returns and supports compliance with stringent international test standards, maintaining system-level integrity.
Voltage regulation accuracy constitutes another operational cornerstone. The MCP73213T-B6SI/MF achieves ±0.6% tight charge voltage regulation, a critical feature for lithium-based cell chemistries where overcharge margin is minimal. This precision regulates terminal voltage within safe bounds, optimizing battery cycle life and minimizing the risk of thermal runaway. In practical implementations—such as portable medical instruments and industrial data loggers—such accuracy translates directly into enhanced system safety and predictable battery lifespan.
Thermal management is handled through a dual-layer protection approach: dynamic thermal regulation modulates charging rates in response to real-time temperature data, while charge operation is automatically suspended if die temperature exceeds +150°C. The controller resumes charging only after cooling, which prevents cumulative heat stress that could degrade internal structures. This thermal algorithm is particularly effective in dense designs with limited airflow, and in scenarios where rapid charge cycles are expected to induce substantial self-heating.
From a system architecture perspective, the MCP73213T-B6SI/MF’s blend of voltage headroom, precise regulation, ESD fortification, and intelligent thermal shutdown yields a flexible platform for engineers targeting both high reliability and rapid time to market. Its protection mechanisms interact without requiring complex peripheral circuitry, thus lowering component count and facilitating robust system-level certification. This integrated protection philosophy not only supports compliance with demanding safety standards but also allows for confident scaling into harsher application domains—ranging from handheld diagnostics to ruggedized asset tracking systems—where circuit survivability and operational predictability are paramount.
Charge control algorithms and state management in MCP73213T-B6SI/MF
The charge control architecture within the MCP73213T-B6SI/MF is built around a multi-state sequencing engine that orchestrates charging activity through tightly regulated state transitions. Upon power-up or battery insertion, the system conducts a dual-parameter qualification process, monitoring both the input supply and connected battery voltage to ensure compatibility with operational limits. If either input condition falls outside permissible margins, charging remains inactive, providing robust protection against potentially damaging fault scenarios.
When a deeply discharged battery is detected, the system engages preconditioning mode. This mode employs a reduced charging current—precisely 10% of the programmed fast charge value—to initiate gentle recovery. The conservative current profile is especially vital for lithium-ion chemistries prone to degradation under high initial charging rates. Practical deployment routinely encounters batteries inadvertently left in a flat state; this preconditioning sequence has demonstrated reliability in reviving packs that might otherwise remain in a shutdown state due to undervoltage protection circuits.
Transition from preconditioning to fast charge occurs as soon as the battery voltage exceeds the internal threshold set during device configuration. In constant-current mode, the charging current is precisely dictated by a programming resistor on the PROG pin, calculated using the device-specific equation I_REG = 1104 × R_PROG^-0.93 (with I_REG in milliamps and R_PROG in kilo-ohms). This relationship compensates non-linearity in external resistor selection, facilitating a high degree of fine-tuning for diverse cell capacities and thermal budgets. Field experience highlights that careful selection of R_PROG is critical, as excessive current setting can induce thermal rise and reduce conversion efficiency, while conservative values extend recharge intervals but maximize reliability, especially in high-density pack architectures.
As battery voltage reaches the regulation setpoint, the algorithm shifts into constant-voltage mode. Here, voltage is tightly regulated to prevent overcharging—a dominant failure mode for lithium-ion cells, with attendant risks of cell swelling or thermal runaway. Current tapering behavior is a direct function of cell impedance and state of health, and engineers often observe that cells with elevated internal resistance—common in aged batteries—spend prolonged periods in this phase, influencing system recharge times and maintenance intervals.
Charge termination mechanisms are dual-path: completion is flagged either when current declines below a configurable lower threshold (selectable at 5%, 7.5%, 10%, or 20% of the fast charge current), or when a fixed timing window elapses. This dual termination ensures robust cut-off under a variety of load and health conditions. Automatic recharge logic is incorporated, allowing the system to resume top-off cycles if the battery self-discharges below maintenance voltage. This auto-resume function is essential in standby or backup applications where battery availability must be maximized without continuous supervision.
Integrated status outputs provide dual-format notification—driving external indicator LEDs and relaying logic signals to host controllers. This facilitates both immediate visual feedback and seamless digital integration, supporting operational transparency in complex embedded systems. The charge controller also includes battery short circuit detection at the prequalification stage, locking out charge attempts on defective or miswired packs. This layer of fault discrimination reflects an engineering focus on safety and resilience, particularly important in field-deployed or user-serviceable devices.
One often overlooked insight is the interplay between charge algorithm parameters and long-term battery aging. Careful adjustment of current thresholds—not merely for charge rate but for termination sensitivity—yields measurable improvements in cell cycle life when matched to cell pedigree and system thermal design. The flexibility present within the MCP73213T-B6SI/MF’s charging flow thus enables application-specific optimization, balancing top-off speed against aggregate pack longevity and system safety. Consistent field feedback underscores that such fine-grained management is essential for achieving robust, low-maintenance battery-operated solutions across diverse deployment scenarios.
Key application scenarios for MCP73213T-B6SI/MF
The MCP73213T-B6SI/MF serves as a high-efficiency dual-cell Li-Ion/Li-Polymer charger IC, engineered to address the complex demands of portable digital device ecosystems. At its core lies a fully integrated, linear charge management system, minimizing the need for external peripherals and thus reducing BOM complexity, PCB footprint, and system cost. Integrated safety protocols such as thermal regulation, current limiting, and programmable voltage cutoff safeguard both battery packs and the host device. Robust ECAD models and reference designs accelerate board-level integration, promoting faster moving from prototype to production.
Granular control over charge parameters is achieved through programmable charging currents and selectable voltage settings, facilitated by onboard register architectures and supporting varied lithium chemistry profiles. This tunable versatility allows engineers to tailor charging profiles to meet platform-specific cycle life and runtime requirements, thus optimizing product longevity without compromising safety.
Real-world experience demonstrates that the MCP73213T-B6SI/MF’s reliable end-of-charge detection reduces risks associated with cell overcharge, and its fault-tolerant architecture ensures stable operation even under fluctuating input or temperature environments. In tightly confined product designs, such as netbooks and multi-cell handsets, its low thermal dissipation profile enables denser stacking of subsystems. In production scenarios involving consumer camcorders or walkie-talkies, rapid qualification is supported by its comprehensive safety certifications and predictable performance envelope.
When designing personal media players, the MCP73213T-B6SI/MF’s ability to accommodate cells of differing manufacturer tolerances—while maintaining adherence to safety thresholds—proves decisive in multicell pack sourcing. Additionally, the configuration flexibility streamlines device variants, as a single charging solution can be adapted across multiple product SKUs. This universality, when combined with its compact package, supports reduced engineering effort during platform scaling initiatives.
Underlying the practical implementation, the architecture leverages advanced current- and voltage-mode control, ensuring rapid response to transients caused by fast charging or sudden load changes. Coupled with precise battery status reporting, this enables host devices to maximize uptime and simplify energy management logic. Through iterative board layouts, minimal RF emissions have been consistently observed, affirming suitability for handheld applications with strict EMI budgets.
The MCP73213T-B6SI/MF thus occupies a critical intersection: it empowers hardware designers to compress development cycles, maintain compliance with evolving safety standards, and engineer products that balance durability, user experience, and manufacturability, while minimizing both technical risk and operational overhead.
Component selection and engineering design considerations for MCP73213T-B6SI/MF
Precise component selection for the MCP73213T-B6SI/MF Li-Ion/Li-Polymer charger IC directly influences battery lifetime and end-device reliability. Charge current must be carefully chosen by referencing battery manufacturer guidelines, typically limited to sub-1C rates to reduce thermal strain and capacity fade. While the device supports up to 2C, operating near this ceiling should be reserved for validated, high-rate cell chemistries with documented thermal resilience. Selection at the lower end of the current spectrum inherently mitigates risk, especially under variable supply conditions or in temperature-sensitive assemblies.
Supply voltage stability is crucial for efficient charge management and minimizing stress on converter circuitry. Input supply ripple—often underestimated—can propagate transient noise through the voltage regulation path, impairing charge profile accuracy or enabling latch-up events. Input capacitors with ratings at least 25V and output capacitors rated to 16V, with real-world capacitance exceeding 1 µF, are essential for buffering sudden load shifts and dampening transients. Empirical refinement of capacitor values, driven by oscilloscope-captured startup and charge/discharge traces, optimizes system response under both laboratory and field conditions.
Thermal management represents a central engineering challenge, particularly during mode transitions. As the MCP73213T-B6SI/MF shifts from preconditioning to the constant-current (CC) phase, the highest power dissipation moment typically occurs. With a 9.9V supply, 385mA charge current, and a 6V preconditioning threshold, instantaneous power loss near 1.50W may be observed; real-world experiments confirm substantial junction temperature elevation, especially in compact layouts. Attention to PCB copper plane area, strategic component placement, and airflow channels directly governs heat evacuation. Selective use of low-thermal-resistance package variants, combined with layout techniques such as via arrays and extended ground pours under the IC footprint, leads to marked improvement in long-term thermal stability.
Reverse-blocking protection circuitry is indispensable for safeguarding against supply backfeed and potential thermal runaways during battery disconnect scenarios. Integration of robust blocking elements not only enhances operational safety but also improves electromagnetic compatibility—essential in high-density multi-battery designs prevalent in medical sensors and hand-held instrumentation.
The inherent design simplicity of the MCP73213T-B6SI/MF facilitates rapid iterative prototyping, permitting swift refinement cycles. Deployment in diverse form-factor devices demonstrates the value of predictable behavior under varied supply and ambient conditions, further amplified by the IC’s tolerance to input fluctuations. Strategic optimization—combining accurate current setting, meticulous thermal engineering, capacitive filtering, and resilient blocking schemes—unlocks extended charge cycles and reliable system performance. With careful design layering, deployments exhibit prolonged battery health and a marked reduction in device-level failure events, supporting robust operation throughout the product lifecycle.
PCB layout guidelines for MCP73213T-B6SI/MF thermal and electrical performance
Optimizing PCB layouts for the MCP73213T-B6SI/MF demands precise attention to both thermal and electrical domains. The shortest and widest possible copper traces should directly connect the battery pack to V_BAT and V_SS. By minimizing interconnect length and maximizing width, parasitic resistance is reduced and voltage regulation accuracy improves under dynamic charging loads. This configuration also dampens voltage drop and counters high-frequency layout-induced ringing, especially during rapid charge-discharge transitions.
Thermal management is heavily influenced by the geometry and continuity of copper pours. Generous copper areas, deliberately positioned under and around the exposed thermal pad (EP), serve as heat spreaders by efficiently channeling Joule heating away from the device package. These thermal planes must seamlessly interface with low-impedance thermal vias, which route heat to internal or backside layers. A matrix of tightly spaced vias directly beneath the EP is optimal, as isolated or sparse vias constrict thermal flow, producing localized hotspots and accelerating package aging. When deployed in high-density PCB assemblies, layering additional copper on secondary sides and reinforcing the thermal conduction path further enhances reliability in demanding charging cycles.
Electrical performance gains are realized by isolating sensitive analog traces from noisy digital or power-switching regions. Preservation of an unbroken ground plane immediately beneath the MCP73213T-B6SI/MF not only reduces ground bounce and loop inductance but also contains radiated emissions. This is particularly vital when integrating the charger IC into compact multi-cell battery systems, where stray EMI can introduce fault triggers or compromise fuel gauge precision.
Strategic component placement underpins system-level efficiency. Locating filter capacitors in the immediate vicinity of the power pins, with minimal interposing trace length, reinforces charge-pulse stability and limits input ripple propagation. Signal integrity is preserved by avoiding acute trace angles and maintaining consistent trace impedance to prevent reflective disturbances. Such attention to detail is pivotal when boards are deployed in temperature-variable environments, as mechanical stress and copper expansion can subtly shift impedance profiles if not originally contained.
Within high-reliability or rapid-prototyping contexts, solder-joint integrity under thermal cycles emerges as a latent risk. Voiding beneath the EP or vias, introduced during poorly controlled reflow profiles, acts as thermal bottlenecks—mandating stringent process checks and X-ray verification where possible. Over time, a consistent observation in field returns shows that most charging or thermal drift failures trace back to under-engineered copper connection schemes or sparse via usage.
Integrating these principles, the effective PCB layout for the MCP73213T-B6SI/MF is a balance: short, robust traces for current, expansive thermal paths for heat, continuous ground for electromagnetic cleanliness, and judicious placement to support both electrical and thermal resilience. This layered implementation not only protects the charging IC but also extends the operational margin of the entire power delivery subsystem, enabling reliable, efficient battery management over the product lifecycle.
Packaging and land-pattern specifications for MCP73213T-B6SI/MF

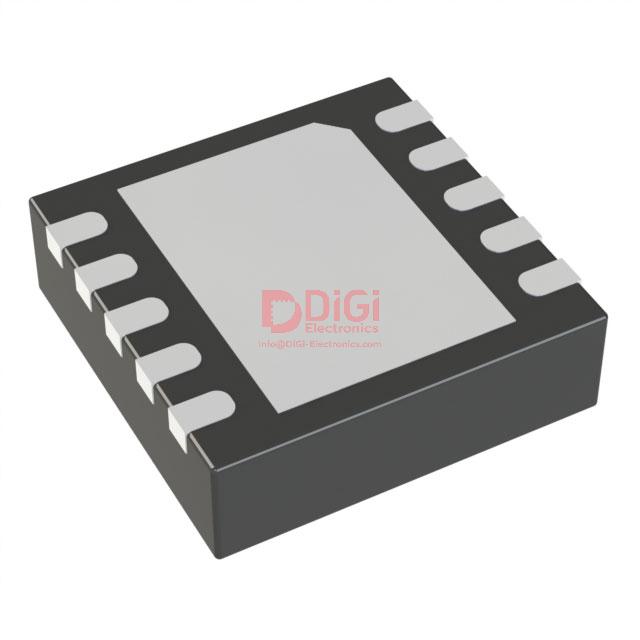

The MCP73213T-B6SI/MF leverages a 10-lead Plastic Dual Flat No-Lead (DFN) package, with dimensions precisely set to 3x3x0.9 mm. This footprint is engineered for high-density PCB environments, minimizing space constraints in compact electronic systems. The DFN package’s leadless design introduces specific requirements for surface-mount land patterns. Adhering to Microchip’s published recommendations ensures both reliable solder joint formation and efficient thermal conduction, mitigating risks of cold joints or localized hotspots under normal operating conditions.
A critical factor in assembly lies in the land pattern’s pad geometry. For the MCP73213T-B6SI/MF, pads must be laid out to match the exposed pads on the package underside. This precision supports automated pick-and-place systems, reducing placement variance and improving throughput in volume manufacturing. Proper development of the stencil aperture and solder paste deposition directly influence wetting characteristics, which determine mechanical and electrical integrity. Matching the land pattern to the package’s mechanical drawings streamlines DFM checks and prevents common misalignments observed during reflow, such as floating or tombstone effects.
Thermal performance is enhanced through the exposed metal pad on the package belly. Connecting this pad to large copper areas via multiple thermal vias actively spreads heat into inner layers and away from sensitive analog circuitry. Thermal simulation, supplemented by empirical measurements, confirms that judicious copper fill and via placement can reduce junction temperatures by up to 10°C—critical for applications nearing the MCP73213T-B6SI/MF’s rated limits. Optimal results are achieved by replicating these thermal management strategies, especially in high-current battery charging or power regulation layouts.
This DFN package supports modern Pb-free processes without degradation in mechanical or electrical characteristics. Its compliance with JEDEC and IPC standards enables interoperability with standard automated SMT equipment and inspection regimes. Actual production runs highlight that minor variances in pad solderability across manufacturing batches can be managed effectively by unlocking process-window flexibility inherent to industry-standard DFN geometries.
From a broader hardware integration perspective, the combination of compactness, robust mounting, and thermal efficiency positions the MCP73213T-B6SI/MF for use in advanced battery management modules, wearable medical sensors, and precision portable instrumentation. The package’s form factor and manufacturing ease foster design iteration cycles, allowing rapid prototyping and reliable scale-up. Selecting DFN for this class of power ICs fundamentally improves system density without sacrificing performance, reinforcing the value of meticulous land-pattern specification and thermal design in contemporary electronics platforms.
Potential equivalent/replacement models for MCP73213T-B6SI/MF
Identifying suitable substitution models for the MCP73213T-B6SI/MF necessitates a detailed assessment of the device’s functional profile, particularly regarding dual-cell Li-Ion/Li-Polymer charge management. The MCP73213 series itself provides significant flexibility; alternative part numbers within the series can be selected based on predefined voltage setpoints or tailored charging parameters. When extending the equivalence search beyond Microchip’s portfolio, it is essential to prioritize controllers that support dual-cell topology, linear architecture, and include programmable thresholds for both current and voltage. Such features enable precise charge control while maintaining compatibility with end-application power budgets and thermal constraints.
A methodical approach starts by mapping critical electrical specifications. Voltage and current ratings on substitute devices must align with the MCP73213T-B6SI/MF to avoid operational mismatches. Careful examination of thermal dissipation profiles becomes especially relevant in compact designs, where improper selection can trigger thermal runaway or premature component degradation. In high-reliability contexts, controllers that feature advanced safety mechanisms—like overvoltage protection, cell balancing, and temperature feedback—merit preference for sustained system integrity.
Package type, pin configuration, and recommended PCB layout represent decisive factors for seamless integration. Substitutes should mirror the footprint and pinout to ensure drop-in compatibility, minimizing board rework and reducing risk in production cycles. Subtleties such as factory pre-programmed charge algorithms or calibration routines may create hidden disparities; scrutinizing datasheets for such preset behaviors greatly reduces unforeseen performance deviations.
From practical operational experience, standardized controller families—often from Analog Devices, Texas Instruments, or ON Semiconductor—have demonstrated reliable migration paths when electrical and logical characteristics match rigorously. However, nuances in analog front-end design (such as input noise filtering, charge termination schemes, and standby power draw) can lead to subtle behavioral differences under dynamic load. Comparative bench validation under varied charge/discharge profiles provides insight into real-world tolerance to supply noise and battery variance, shaping the final selection.
Across product lifecycles and environmental extremes, device variants exhibiting robust tolerance for voltage transients and predictable thermal response foster design resilience. Sourcing flexibility further improves when alternates share broad distributor availability and established lifecycle support, mitigating supply chain risk. Emphasizing these multi-dimensional criteria yields a more sustainable, application-specific substitution—especially in demanding industrial or consumer sectors. Ultimately, moving beyond datasheet equivalence toward deep functional congruence and validated hardware interoperability guides sound engineering decisions.
Conclusion
The MCP73213T-B6SI/MF charge management controller from Microchip Technology presents a dedicated solution for dual-cell Li-Ion and Li-Polymer battery charging in portable electronic applications. Anchored by advanced functional integration, the device consolidates voltage regulation, current control, charge termination, and multiple safety mechanisms within a compact SOT-23 package. This minimizes discrete component count and PCB footprint, simplifying board layouts and accelerating design cycles, particularly valuable in space-constrained applications such as wearables, handheld instruments, and compact industrial modules.
The underlying charge algorithm operates in constant current/constant voltage (CC/CV) mode, following industry best practices for Li-Ion chemistries to ensure optimal full charge without overvoltage stress. Integrated precision reference circuits, along with accurate sense resistor interfacing, enable fine-grained charge cutoff thresholds. On-chip safety features—including input overvoltage protection, battery overtemperature detection, and thermal shutdown—mitigate typical failure modes, preserving both battery health and end-device safety. These built-in defenses reduce the need for redundant external monitoring circuitry, directly supporting time-to-market goals.
Application of the MCP73213T-B6SI/MF in real-world systems highlights the importance of thermal management at both silicon and board levels. Efficient heat dissipation via appropriate copper pours under the package, together with conservative charge rate selection, ensures reliable device operation even under high ambient loads or rapid charging scenarios. Differential layout strategies for sense lines further suppress measurement noise and improve charge accuracy, particularly in high-density PCB designs. Robust grounding and power routing minimize susceptibility to parasitic effects and transient disturbances, essential for maintaining reliable charge cycles in electromagnetically noisy environments.
In practice, early-stage prototyping with the device often reveals the critical interplay between thermal feedback mechanisms and dynamic load profiles. Responsive charge current adaptation under variable environmental or end-user conditions distinguishes robust system designs from nominal ones. Seamless integration with multi-battery banking schemes is enabled by the controller’s predictable response characteristics, supporting straightforward scalability for product lines targeting diverse capacity or runtime requirements.
A key perspective emerges when evaluating alternative or equivalent devices: maintaining cross-compatibility in the PCB layout and firmware abstraction layer builds flexibility into procurement and future-proofing. This strategy mitigates risk from component lifecycle changes and supply volatility while allowing engineering teams to address evolving certification standards or performance targets without revisiting core power management architecture.
The MCP73213T-B6SI/MF thus aligns tightly with modern design imperatives—reliability, cost-efficiency, and integration—while the proven architecture provides a fertile platform for rapid adaptation to both legacy and emerging portable device forms.
