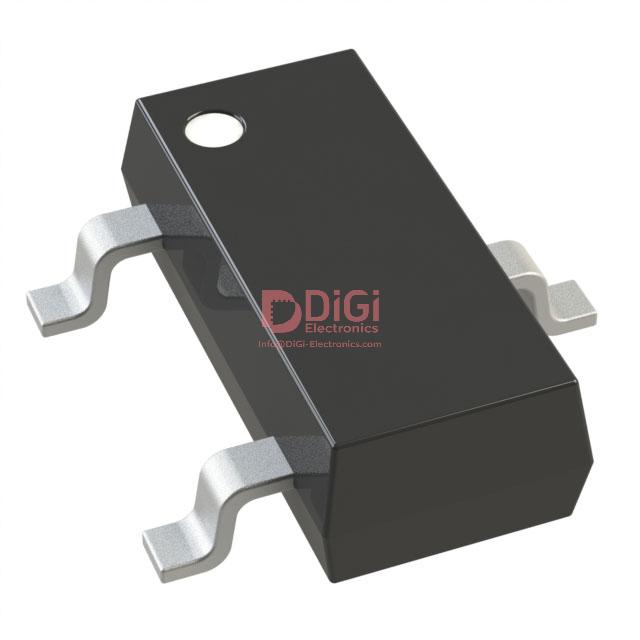

Product overview: Microchip Technology 11LC020T-I/TT Serial EEPROM
The Microchip Technology 11LC020T-I/TT represents an efficient solution for secure, nonvolatile data storage in environments where PCB real estate and power budgets are tightly constrained. Underlying its functionality is the UNI/O® serial protocol, which enables simultaneous clock and data transmission over a single wire. This architecture reduces pin count and physical interface complexity. Conventional I²C and SPI interfaces often demand up to four dedicated traces and matching components per peripheral, increasing layout overhead; in contrast, the UNI/O® protocol’s single-wire approach substantially enhances routing flexibility, contributing to robust, minimalist system designs.
At the core of the 11LC020T-I/TT is a 2 Kbit memory array, partitioned into 256 byte-addressable locations. This organization delivers fine-grained, byte-wise random access essential for configuration settings, calibration constants, secure key storage, and error logs. Integrated EEPROM cell technology is optimized to retain programmed states through extensive write-erase cycling, adhering to industrial endurance standards and minimizing long-term data corruption risk. Native low-voltage operation aligns with modern MCUs and sensor platforms, enabling the EEPROM to coexist on shared power rails without complex voltage-level shifting or current buffering.
Thermal resilience further distinguishes the 11LC020T-I/TT. The device withstands temperatures from -40°C to +85°C, supporting deployment in outdoor sensors, industrial controls, and medical modules where ambient conditions can fluctuate unpredictably. Experiences in assembling mixed-signal boards have illustrated that compact SOT-23 packages not only support high-density designs but consistently yield better yield and automated placement accuracy during SMT processes, especially in volume manufacturing scenarios.
System architects benefit from the device’s low standby and active power consumption, which proves advantageous in battery-operated sensing nodes and remote telemetry endpoints. The combination of low energy profile and minimal protocol overhead enables frequent access cycles without substantive impact on energy budgets, facilitating periodic sensor calibration or secure device authentication routines.
A subtle but impactful advantage lies in the streamlined integration workflow. The UNI/O® interface simplifies firmware driver development; one-wire signaling eliminates race conditions typical of multi-wire buses, and decouples strict timing constraints. This results in reduced software development time and fewer field issues related to signal integrity.
Selecting the 11LC020T-I/TT delivers tangible benefits to professionals seeking scalable, reliable, and low-complexity nonvolatile memory. The interplay of physical packaging, communication simplicity, rugged endurance, and application flexibility creates a deployment-ready solution, especially when design priorities converge on miniaturization, reliability, and highly integrated system topologies.
Key features of the 11LC020T-I/TT Serial EEPROM
The 11LC020T-I/TT Serial EEPROM integrates a purposeful blend of engineering features, optimizing both deployment efficiency and operational reliability in embedded contexts. Its use of a UNI/O® single-wire serial bus exemplifies the drive toward minimalistic hardware interfacing: minimizing pin count directly impacts PCB routing density and enables compact layouts, a critical factor in modular designs and constrained form factors. The serial communication protocol further supports straightforward board-level integration, reducing potential points of failure and streamlining assembly.
Power efficiency remains at the core of this device’s architecture. With active current typically at 1 mA and standby as low as 1 μA, the EEPROM is inherently suited to low-energy applications, such as wearables and remote sensor nodes, where battery lifetime is a primary design constraint. Projects ranging from simple sensor data logging to more complex portable control systems benefit from the low leakage and predictable power profile, supporting both intermittent operation and continuous standby.
Scalability is ensured across the 11LC/11AA family, offering densities from 1 Kbit to 16 Kbit. Engineers can tailor memory capacity to application needs without over-provisioning—matching storage availability to firmware size or configuration data requirements improves cost efficiency and system reliability. This stratified approach to memory sizing also eases transitions between product tiers or iterative prototyping, delivering design flexibility without disrupting hardware architecture.
Signal integrity is reinforced by the inclusion of Schmitt trigger inputs and controlled output slopes. These measures protect against signal noise and ground bounce, key considerations in electrically dense or high-interference environments. By mitigating errant transitions, reliable communication is maintained even under voltage fluctuations or rapid switching conditions, thereby reducing risk of data corruption and enhancing system diagnosability.
Communication speed is capped at 100 kbps, a choice aimed at balancing EMI management and compatibility with standard microcontroller serial engines. Streamlined interoperation with legacy designs and contemporary controllers exemplifies thoughtful protocol alignment, allowing for direct migration or hybrid system approaches without significant firmware overhead. Self-timed write cycles with integrated auto-erase encapsulate error avoidance practices, reducing timing dependencies in firmware and ensuring robust transaction execution even in asynchronous operating scenarios.
For bulk data transfers, the 16-byte page write buffer accelerates programming throughput while minimizing command overhead. This configuration directly supports use cases involving firmware patching, parameter updates, or dynamic environment logging, where throughput and transactional efficiency are prioritized. Block write protection and the refined power-on/off circuit design further fortify data integrity, protecting critical calibration or identity data in environments prone to brownouts or spurious resets.
Endurance characteristics reflect advanced nonvolatile memory process optimization: one million erase/write cycles and retention periods exceeding two centuries address both mission-critical and lifecycle-sensitive deployments. Industrial measurement systems, instrumentation, and infrastructure nodes benefit from this resilience, guaranteeing reliable operation over extended service intervals or in harsh field conditions.
Robust ESD protection exceeding 4,000V on all signal pins serves as an important safeguard in electrically noisy installations, reducing failure rates during assembly, handling, or in-situ maintenance. This supports operational longevity and reduces warranty servicing, aligning with engineering benchmarks for system robustness.
Environmental compliance—Pb-Free operation and RoHS certification—further broadens applicability, supporting usage in sustainable design initiatives and ensuring adherence to both regulatory and corporate stewardship goals.
Optimal application of the 11LC020T-I/TT emerges in low-pin-count controller subsystems, field-deployable low-power IoT modules, and scalable instrumentation arrays. Stability and flexibility are achieved through its unified protocol and robust design features. Importantly, integrating the memory buffer and protection mechanisms anticipates real-world implementation nuances, such as interrupted writes and conditional power stability—facilitating resilient designs within tight hardware and firmware constraints.
A unique strength of the 11LC020T-I/TT family lies in its adaptive deployment potential: by harmonizing physical resource efficiency with fortified data protection, it enables both rapid prototyping and durable field installations. The device’s engineering-driven architecture seamlessly supports workflows ranging from rapid pre-production cycles to extended operational lifespans, reflecting an understanding of both short-term innovation cycles and long-term system reliability.
Electrical and operational characteristics of 11LC020T-I/TT
The 11LC020T-I/TT memory device integrates a robust set of electrical and operational characteristics aligned with the demanding requirements of industrial-grade embedded systems. Its supply voltage tolerance extends to an absolute maximum of 6.5V, while ESD protection is rated at 4,000V, exceeding typical application specifications and allowing integration into environments with elevated risks of transient events and voltage disturbances. Careful attention to I/O protection is evident, with device pins designed to handle swings from -0.6V up to Vcc+1.0V relative to ground. This level of tolerance simplifies implementation within mixed analog-digital designs, where stray voltage can otherwise compromise signal integrity or device reliability.
The operational voltage is specified at 2.5V, spanning industrial ambient temperatures from -40°C to +85°C. This wide thermal envelope supports deployment across varied geographies and application classes. Write/erase endurance reaches one million cycles per cell—a threshold that mitigates concerns about device longevity in data-logging or repetitive update scenarios. Notably, the device guarantees data retention for over 200 years, eliminating the need for periodic reconditioning and ensuring non-volatile archival capability even under intermittent power-loss conditions.
For communication, the 11LC020T-I/TT leverages the UNI/O® protocol, optimized for serial data transfer rates up to 100 kbps. The AC parameters are tightly defined to ensure low-noise, glitch-free operation across the protocol’s timing envelope. This precision is crucial for maintaining reliability within multi-node serial buses, particularly when deployed in environments susceptible to EMC interference. Engineers note that compliance with the detailed timing requirements in the UNI/O® specification streamlines interoperability and simplifies design validation for new hardware platforms.
The device architecture includes low-power operational modes—Active, Standby, and Idle—enabling granular control over energy consumption during both intensive data transaction phases and periods of inactivity. The transition mechanisms between these internal states are fast and deterministic, allowing for seamless recovery of full performance without incurring excessive current spikes. This characteristic supports applications where energy budgets are tightly managed, such as portable measurement systems and distributed control nodes.
Practical experience has demonstrated that the device's generous voltage and temperature margins accommodate unexpected field conditions, while the robust ESD rating minimizes failure rates in installations with suboptimal grounding. The memory endurance parameters, combined with over two centuries of data retention, have proven particularly advantageous when implementing long-life sensors or maintenance-free monitoring subsystems. It is increasingly clear that such devices deliver superior value when reliability and lifecycle costs dominate the selection criteria.
A subtle but critical insight is the degree to which physical interface tolerances and communication timing stability directly affect seamless integration in complex, noise-prone industrial networks. The 11LC020T-I/TT’s design reflects this, presenting a foundation for resilient system performance and scalable deployment. Solutions leveraging this device routinely achieve compliance well beyond standard benchmarks, effectively mitigating numerous practical risks associated with industrial electronics.
Functional description and UNI/O® bus protocol of 11LC020T-I/TT
The 11LC020T-I/TT distinguishes itself by natively implementing the UNI/O® serial bus protocol, which utilizes a single, bi-directional SCIO pin through Manchester encoding for clock and data transmission. This integration eliminates the need for separate clock and data lines, minimizing external circuitry and supporting sleek system layouts, particularly in space-constrained environments where pin count is critical. The single-wire structure simplifies routing and reduces the risk of crosstalk, supporting extended wiring without significant signal degradation.
Fundamentally, the Manchester encoding algorithm translates digital bitstreams into signal transitions, providing clock recovery and data integrity. Each data bit is encoded by a voltage transition—critical in environments susceptible to EMI, as the explicit edge detection sharply reduces ambiguity and improves tolerance to line noise. In practice, robust bit synchronization is observed even in systems sharing power rails with high-frequency switching regulators, supporting reliable operation under mixed-signal board conditions.
Communication control is managed entirely by the bus master, which initiates device access using a defined start header. This header sequence is crucial, aligning all devices on the shared bus and allowing deterministic timing for subsequent transactions. Post-synchronization, devices are addressed using 8-bit family code plus device address—typically combined as 0xA0 for the 11LC/11AA series—enabling seamless multi-device stacking on a single bus and facilitating system expansion with additional nonvolatile storage without hardware modification.
The instruction framework supports diverse commands, from byte-wise read/write to sequential page operations, all interleaved with a mandatory two-bit handshake. This protocol, leveraging explicit MAK/SAK and NoMAK/NoSAK signals, enforces transaction integrity at every byte boundary. The handshake design is notably tolerant of real-world timing irregularities, allowing the master to pace transactions without violating bus stability. During firmware development, this characteristic provides flexibility, enabling adaptive timing algorithms that accommodate variable system loads as encountered in low-power or battery-operated designs.
Addressing logic guards against collisions by employing family code segmentation alongside address bits. Multi-chip configurations regularly exploit this feature, enabling differentiated storage densities and functional partitioning in composite memory subsystems. Systems scaling beyond a single EEPROM instance benefit directly, as address clashes are inherently mitigated at protocol level; concurrent multi-device communication remains reliable without additional bus arbitration.
Key insight: In system-level applications, leveraging UNI/O’s Manchester encoding and single-wire topology presents not only a reduction in physical resource requirements but also resilience in electrically challenging environments. Integrators can exploit these attributes to streamline design cycles, achieve consistent bus performance, and expand nonvolatile capacities incrementally. The 11LC020T-I/TT’s implementation of these mechanisms exemplifies a robust approach to scalable, noise-tolerant embedded memory integration.
Command set and data operations in the 11LC020T-I/TT
Command set architecture and data manipulation in the 11LC020T-I/TT devices are designed for granular control, robust safety, and effective throughput across serial memory operations. The interface protocol utilizes clearly delineated command opcodes, each paired with protocol-specific handshaking, to ensure precise coordination between master and slave devices. This facilitates predictable results even in complex multiphase data flows.
Underlying data pathways revolve around explicit address management. The random and sequential READ operations leverage an auto-incrementing internal address pointer. This pointer wraps at physical memory boundaries, allowing continuous streaming—critical for applications requiring efficient bulk readout, such as sensor data logging or buffer offloading. The Current Address Read further optimizes workflows where consecutive accesses are needed; by eliminating repetitive address cycles, the overall read latency is minimized, which is especially beneficial in event-driven or circular logging mechanisms.
Write operations integrate a 16-byte page buffer that maximizes bus utilization through burst writes. This mechanism elevates programming throughput but introduces nuanced attention for developers: any write buffer that crosses a physical page boundary will wrap within the page, overwriting data at the lower address rather than continuing sequentially into the next page. Recognizing and correctly segmenting writes by page granularity is essential for reliable firmware design. An efficient strategy is segmenting higher-level application writes into page-aligned fragments, thus consolidating bus activity while preserving data integrity.
Operational safety is fortified with Write Enable (WREN) and Write Disable (WRDI) commands. These ensure that programming operations are always deliberate, shielding the device from accidental writes due to bus noise or faulty logic. In practice, reliable systems often implement redundant enable/disable cycles and status checking to further harden critical memory regions.
The status register features dual functionality as a runtime monitor and as a control gate for memory protection: bits indicate write-in-progress and write-enable latch state, while configurable block protection bits (BP0, BP1) segment the memory for write protection. Firmware-centric security frameworks strongly benefit from these features, isolating sections of memory either permanently or dynamically during sensitive operations such as configuration updates or secure boot processes.
Array-wide commands, Erase All (ERAL) and Set All (SETAL), permit rapid reinitialization of the entire array to zero or one. These are particularly advantageous for bulk data state switching, such as in-system test pattern generation or device reuse workflows, where full-array state coherence is required without iterative single-page cycles.
The deterministic timing and handshake routines embedded in each command’s flow remove ambiguity from bus arbitration, making the device highly predictable under system-level timing analysis. A disciplined approach to monitoring the Write-In-Progress flag—particularly in power-constrained or interrupt-driven systems—avoids premature bus release or data corruption.
An optimal system integration strategy for the 11LC020T-I/TT combines careful page management, proactive status polling, and structured use of memory protection. Control software should fragment data payloads to match page boundaries and leverage write enable/disable cycles as checkpoints before and after each write. Advanced use cases, such as over-the-air firmware upgrades or event journal append operations, gain stability and resilience by explicit sequencing of block protection and real-time register monitoring.
In summary, unlocking the full capability set of the 11LC020T-I/TT demands both an architectural appreciation of its command behaviors and disciplined adherence to protocol nuances, particularly regarding memory alignment, status handling, and operational safety. Properly architected solutions exploit these features to yield robust, reliable, and high-throughput embedded memory subsystems.
Data protection mechanisms in the 11LC020T-I/TT
Microchip’s 11LC020T-I/TT leverages a tightly engineered, multi-layered data protection architecture designed to address both inadvertent and malicious modification scenarios. At the foundational level, the device utilizes a write enable latch (WEL) that automatically resets under two primary conditions: power cycle and completion of any write-oriented command sequence such as ERAL, SETAL, WRSR, WRDI, or WRITE. This auto-reset mechanism dramatically reduces vulnerability windows, ensuring write permissions are granted only under explicit, deliberate command sequences. Practical debugging reveals that the WEL functionality is effective in mitigating repeated unauthorized writes caused by noise or sporadic line glitches, particularly during field updates, by requiring a clear two-step protocol prior to any data alteration.
During internal write cycles, the architecture enforces strict access isolation; neither the main array nor the status register can be altered until the current programming operation concludes. Such atomicity blocks hazardous concurrent access patterns, which are common sources of race conditions during bus-intensive operations or asynchronous master-slave exchanges. Real-world evaluation of firmware update processes confirms lower error rates and fewer data corruption instances when this access gating is present.
Layered above the atomicity barrier are configurable block protection bits (BP0/BP1) embedded in the status register. These bits offer granular control over array partitioning, enabling the selective locking of 0%, 25%, 50%, or 100% of memory ranges. Multiple protection profiles support flexible partitioning—such as bootloader regions versus user data—optimizing resilience for applications involving frequent parameter storage alongside persistent system code. Experience with iterative calibration storage and firmware versioning demonstrates that judicious use of BP settings prevents accidental erasure of critical sectors, particularly when field devices undergo remote updates or user-driven configuration changes.
The device’s power-on/off protection circuitry adds a further safeguard against voltage instability during startup or shutdown phases. Proprietary circuit layouts monitor supply rail integrity, disabling write capabilities until stable operating conditions are confirmed. Bench testing in fluctuating voltage environments shows that such transient-aware controls sharply reduce occurrences of partial writes and associated flash memory wear, contributing substantially to device reliability in industrial controls or automotive telematics, where supply transients are frequent.
The coherent interplay of these mechanisms—explicit latching, atomic access control, flexible block protection, and voltage-aware gating—forms a robust defense against both common and edge-case threats to memory integrity. Layering hardware and stateful logic at every interface yields a markedly lower probability of data loss or corruption under diverse operating stresses. The protection strategy exemplifies an embedded philosophy favoring granular, fail-safe safeguards over blanket restrictions, permitting tailored security requirements to coexist with throughput and flexibility. Application feedback from high-end sensor nodes and control modules consistently points to enhanced system resilience and streamlined certification processes when deploying storage components with such multi-dimensional protective capabilities. For deployments demanding stringent longevity and safety metrics, the 11LC020T-I/TT's approach sets a practical benchmark for nonvolatile memory integrity.
Packaging and integration considerations for 11LC020T-I/TT
The 11LC020T-I/TT device is engineered for efficient integration into compact electronic systems, leveraging the ultra-small 3-lead SOT-23 form factor. This physical profile is suited for density-critical designs, such as wearable electronics, instrumentation modules, and high-channel-count sensor nodes, where maximum utilization of PCB real estate is a consistent requirement. The package’s pin configuration affords straightforward routing, enabling close placement near microcontroller or processor lines to minimize trace length and reduce parasitic effects. SOT-23 packaging also supports automated pick-and-place assembly lines, promoting production throughput in volume manufacturing environments.
Within Microchip’s broader 11LC/11AA series portfolio, alternate form factors—spanning TO-92, Chip Scale Package (CSP), 8-lead PDIP, SOIC, MSOP, and TDFN—extend design flexibility across various application scales. Selection among these depends on mechanical robustness, thermal performance needs, and legacy system compatibility. For example, CSP options are optimal for ultra-dense assemblies with stringent thickness constraints; PDIP may be chosen for prototyping or socketed modules, balancing cost and ease of manual handling; SOIC and TDFN facilitate high-density surface-mount designs, improving electrical and thermal coupling. The series accommodates diverse layout and assembly methodologies, giving board designers well-matched choices for both prototyping and mass production phases.
Precision in package marking and land pattern definition is pivotal for traceability and high-yield assembly. Each enclosure configuration is delivered with exacting marking schemes that enable rapid visual identification and lot tracking, which simplifies process auditing and mitigates the risk of incorrect device placement. Adherence to land pattern recommendations is integral for thermal management and solder joint integrity. Empirical data from production environments demonstrate that deviations from the manufacturer’s solder pad geometry may introduce reflow anomalies, resulting in intermittent connectivity or thermal stress failures over operational lifetimes.
Compliance with Pb-free and RoHS standards is fully supported across all package variants, meeting contemporary regulatory and environmental requirements. This allows for simplified procurement and reduces qualification burdens when targeting global markets. Experience from production lines shows that Pb-free reflow profiles—optimized per Microchip guidelines—avoid issues such as tombstoning or cold joints, particularly in small-outline packages where mass and thermal inertia differ from larger components.
Optimal integration of 11LC-series parts involves not only matching package dimensions to available board space but also fully utilizing ecosystem support—such as simulation models, IPC-compliant footprints, and process documentation—embedded in manufacturer literature. Increasingly, engineering best practices recommend factoring secondary criteria such as accessibility for automated optical inspection, programming access considerations, and future-proofing for later revision changes. Selection that melds electrical, mechanical, and assembly perspectives will yield sustained reliability and cost control throughout product cycles. These layers of consideration, when woven together, enable seamless design maturation from schematic to full production ramp.
Potential equivalent/replacement models for 11LC020T-I/TT
The selection of an appropriate replacement for the 11LC020T-I/TT EEPROM device necessitates a layered approach, beginning with a thorough understanding of the underlying interface protocol. Microchip’s UNI/O® Serial EEPROM family utilizes a single-wire communication protocol, delivering low pin-count connectivity and streamlining board-level integration for constrained layouts. Selection starts with matching protocol compatibility; alternatives such as the 11LC010, 11LC020 (with alternate packages and expanded voltage support), 11LC040, 11LC080, 11LC160, and 11LC161 build on the same UNI/O® foundation, offering capacitive increments from 1 Kbit up to 16 Kbit. The 11LC161 variant, with alternate addressing schemes, can provide tailored memory bank management in partitioned data applications.
Device compatibility encompasses more than just density and interface specifications. Voltage rating is critical. While the 11LC series span the standard operating voltages, the companion 11AAxxx series is engineered for ultra-low-voltage environments at 1.8V. This is pertinent for designs prioritizing minimal power consumption or integration with sub-2V logic, such as battery-backed sensors or low-energy IoT nodes. Migrating to or incorporating 11AA devices in such systems circumvents potential undervoltage operation and assures data integrity under stringent supply constraints.
Careful attention to physical and electrical integration is vital. Package types—whether SOT-23, PDIP, or DFN—must align with existing footprints and thermal workflows, minimizing requalification steps in the assembly process. Practical experience demonstrates that overlooking minor pinout discrepancies can propagate debug cycles and impact system reliability. It is advisable to validate not only pin mapping but ancillary features such as write-protect pins or complementary enable signals.
Operating temperature range defines deployment flexibility. Selections must accommodate anticipated extremes in environmental exposure, especially where EEPROMs serve in industrial or outdoor systems. The robust -40°C to +85°C window standard across Microchip’s series ensures resilient operation, yet custom requirements—such as extended automotive grade—may necessitate additional scrutiny.
Performance optimization emerges from a nuanced match of not just electrical parameters, but system level behaviors. Utilizing devices with parallel density grades, yet alternate voltage families, facilitates modular scalability and unified firmware support. This approach simplifies software abstraction for platforms hosting both legacy and next-generation modules.
Fundamentally, the replacement process benefits from a holistic, application-driven perspective. In particular, leveraging UNI/O® architecture’s interoperability streamlines firmware adaptation when shifting between device densities or operational voltages, mitigating migration risks. Broadly, optimal selection integrates electrical, mechanical, and protocol facets, reinforced by upfront design validation—directly enhancing system resilience and lifecycle maintainability.
Conclusion
The Microchip Technology 11LC020T-I/TT single-wire serial EEPROM demonstrates a refined approach to non-volatile memory integration within embedded systems, characterized by simplified bus architecture and optimized power dynamics. At its foundation, the device utilizes a proprietary single-wire communication protocol that substantially reduces pin count and routing complexity. This mechanism enables designers to minimize PCB footprint, enhancing system compactness and supporting dense layouts where board space is critical. The streamlined interface mitigates EMI concerns prevalent in multi-wire designs, and offers greater flexibility in PCB trace routing, crucial for products demanding robust signal integrity under constrained conditions.
Performance efficiencies arise from the device’s low idle current and dynamic power management. Enabled sleep and standby modes ensure that memory modules impose minimal drain on system batteries in intermittent-access scenarios, such as sensor data logging or portable device event tracking. Write cycles leverage fast page programming combined with integrated voltage regulation, delivering stability across variable supply rails frequently encountered in mobile and industrial environments. The result is predictable memory access latencies and secure field updates even when operating at the edge of recommended voltages.
From a data integrity perspective, the 11LC020T-I/TT integrates sophisticated write protection via hardware and software schemes, allowing for fine-grained control of critical address ranges. This structure is particularly useful during firmware upgrades or when user calibration data must remain persistent following unexpected resets. The well-documented command set streamlines host controller integration, supporting seamless interoperability with MCU families and facilitating rapid prototype iterations. The inclusion of a status register offers real-time feedback on operation completion, which minimizes programmatic overhead and allows for tight-loop task scheduling in RTOS-driven environments.
Application scenarios span consumer electronics, industrial automation, and automotive submodules. In practice, its robust temperature tolerance and shock resistance enable deployment in remote sensors, access control modules, and instrumentation exposed to harsh field conditions. Experience suggests that lifecycle reliability extends beyond specification when write cycles are distributed prudently and bus capacitance is managed proactively during layout. Engineers often leverage the device’s scalability—selecting higher-capacity variants within the 11LC/11AA family during product refreshes—without necessitating changes in foundational firmware or physical interconnect, thereby safeguarding investment in both hardware tooling and software validation.
A key insight emerges from the device’s seamless balance between simplicity and expandability. By abstracting the serial protocol while offering backward compatibility, the 11LC020T-I/TT positions itself not only as a drop-in solution for legacy designs, but also as a strategic enabler for future-oriented modular architectures. This modularity fosters streamlined supply chains and ensures procurement flexibility, especially when price and availability fluctuate across memory densities. In sum, focused engineering decisions around leveraging single-wire EEPROMs yield tangible benefits in manufacturability, long-term reliability, and upgrade pathways within rapidly evolving product ecosystems.
