TLP521-4XGBSM
Isocom Components 2004 LTD
16PIN TRANSISTOR OUTPUT, QUAD OP
20900 Pcs New Original In Stock
Optoisolator Transistor Output 5300Vrms 4 Channel 16-SMD
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (408 Ratings)

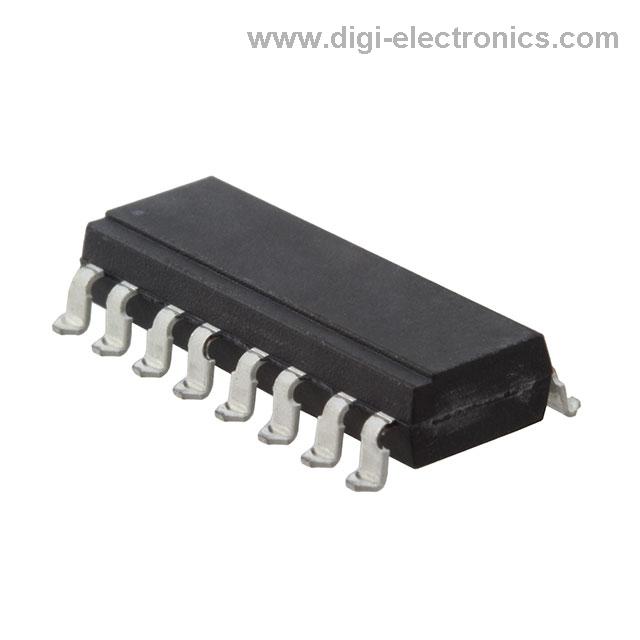

TLP521-4XGBSM
Product Overview
1912437
DiGi Electronics Part Number
TLP521-4XGBSM-DGManufacturer
Isocom Components 2004 LTD
TLP521-4XGBSM
Description
16PIN TRANSISTOR OUTPUT, QUAD OPInventory
20900 Pcs New Original In Stock
Optoisolator Transistor Output 5300Vrms 4 Channel 16-SMD
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
TLP521-4XGBSM Technical Specifications
Category
Optoisolators, Transistor, Photovoltaic Output Optoisolators
Packaging
Tube
Series
TLP521-4
Product Status
Active
Number of Channels
4
Voltage - Isolation
5300Vrms
Current Transfer Ratio (Min)
100% @ 1mA
Current Transfer Ratio (Max)
600% @ 1mA
Turn On / Turn Off Time (Typ)
3µs, 3µs
Rise / Fall Time (Typ)
4µs, 3µs
Input Type
DC
Output Type
Transistor
Voltage - Output (Max)
55V
Current - Output / Channel
50mA
Voltage - Forward (Vf) (Typ)
1.15V
Current - DC Forward (If) (Max)
50 mA
Vce Saturation (Max)
400mV
Operating Temperature
-30°C ~ 100°C
Mounting Type
Surface Mount
Package / Case
16-SMD, Gull Wing
Supplier Device Package
16-SMD
Datasheet & Documents
HTML Datasheet
TLP521-4XGBSM-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.49.8000
Additional Information
Other Names
56-TLP521-4XGBSM-DG
56-TLP521-4XGBSM
58-TLP521-4XGBSM
Standard Package
25
