H11L3SM
Isocom Components 2004 LTD
6PIN SCHMITT TRIGGER, SINGLE OPT
22200 Pcs New Original In Stock
Logic Output Optoisolator 1MHz Open Collector 5300Vrms 1 Channel CMTI 6-SMD
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (368 Ratings)
H11L3SM
Product Overview
1913316
DiGi Electronics Part Number
H11L3SM-DGManufacturer
Isocom Components 2004 LTD
H11L3SM
Description
6PIN SCHMITT TRIGGER, SINGLE OPTInventory
22200 Pcs New Original In Stock

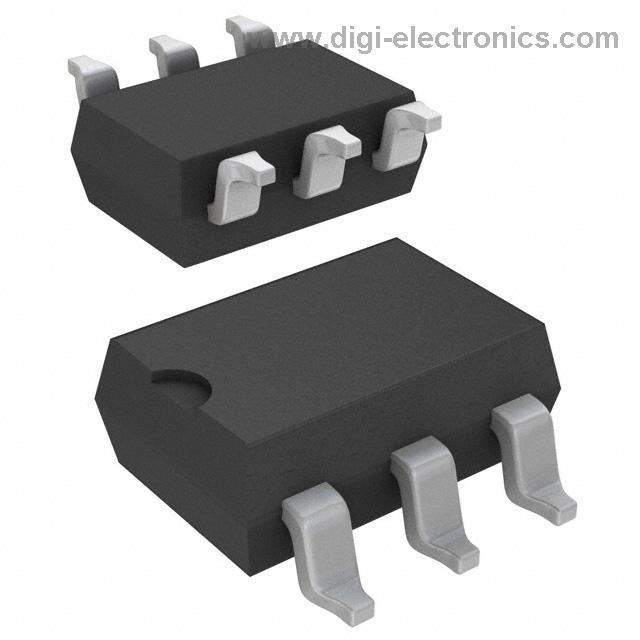

Logic Output Optoisolator 1MHz Open Collector 5300Vrms 1 Channel CMTI 6-SMD
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
H11L3SM Technical Specifications
Category
Optoisolators, Logic Output Optoisolators
Packaging
Tube
Series
H11L3
Product Status
Active
Number of Channels
1
Inputs - Side 1/Side 2
1/0
Voltage - Isolation
5300Vrms
Common Mode Transient Immunity (Min)
-
Input Type
DC
Output Type
Open Collector
Current - Output / Channel
50 mA
Data Rate
1MHz
Propagation Delay tpLH / tpHL (Max)
6µs, 3µs
Rise / Fall Time (Typ)
100ns, 100ns
Voltage - Forward (Vf) (Typ)
1.5V (Max)
Current - DC Forward (If) (Max)
50mA
Voltage - Supply
3V ~ 15V
Operating Temperature
-25°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
6-SMD (0.300", 7.62mm)
Supplier Device Package
6-SMD
Datasheet & Documents
Datasheets
Download H11L3SM Product Specification (PDF)
HTML Datasheet
H11L3SM-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.49.8000
Additional Information
Other Names
56-H11L3SM
58-H11L3SM
56-H11L3SM-DG
Standard Package
