Product overview: AL8863SP-13 Diodes Incorporated LED driver controller
The AL8863SP-13 represents a significant advancement in step-down DC/DC LED driver controllers, combining robust design principles with practical utility for high-current LED applications. Leveraging a wide 4.5V to 60V input voltage range, this controller facilitates reliable operation within varied supply environments, including both low-voltage and high-voltage domains commonly found in commercial and industrial lighting systems. The integration within a thermally enhanced SO-8EP package maximizes heat dissipation, directly supporting elevated current levels without compromising long-term reliability—a critical consideration for continuous-use lighting installations.
At its core, the device's architecture deploys a single-output configuration, tailored specifically to deliver uniform current to series-connected LED arrays. This ensures consistent luminance across all elements, essential for applications requiring precise light output, such as architectural accent lighting or machine vision systems. By eliminating the requirement for external ballast resistors, the controller streamlines circuit topologies, simplifying design tasks and reducing bill-of-materials complexity. This approach not only diminishes potential points of failure but also drives up system efficacy by minimizing parasitic power losses associated with discrete current-limiting components.
Advanced control mechanisms embedded within the AL8863SP-13 facilitate stable feedback regulation and fast transient response. This design enables the controller to adapt efficiently to input fluctuations and load dynamics, mitigating flicker and enhancing dimming performance—features that prove valuable in environments where precise light modulation and visual comfort are mandatory. Experience demonstrates that optimizing layout for thermal flow and minimizing parasitic inductance in the switch node can further unlock the device’s performance, supporting high peak currents without instability.
The controller’s compatibility with both analog and PWM dimming interfaces offers flexibility for system-level integration. In adjustable lighting solutions, such as intelligent street lighting and factory floor illumination, this adaptability enables sophisticated brightness management strategies, contributing to both energy savings and tailored lighting profiles according to operational requirements.
A noteworthy observation arises when considering the voltage overshoot and undershoot during fast load transients. Implementing appropriate compensation networks and selecting low-ESR output capacitors mitigate these effects, yielding tighter LED current regulation and extending module lifespan. The balance of high efficiency, compact layout, and dependable operation positions the AL8863SP-13 as an optimal choice for designers targeting scalable, maintainable LED lighting infrastructure.
In deploying the AL8863SP-13, prioritizing PCB layout for minimum thermal resistance and establishing clear separation between the control and power paths emerges as a best practice, further enhancing electromagnetic compatibility and reducing noise susceptibility. The controller’s intrinsic attributes and implementation insights combine to support enduring, high-performance lighting systems, where reliability, simplicity, and adaptability are paramount.
Key features and capabilities of AL8863SP-13
The AL8863SP-13 is engineered to address modern power management requirements, providing advanced functionality while prioritizing operational safety and versatility. At the core, its broad operating frequency range from 50kHz to 1MHz enables designers to fine-tune switching characteristics—balancing efficiency, EMI performance, and physical footprint. This frequency flexibility empowers the selection of smaller passive components, facilitating high-density system layouts and reducing overall solution cost, which is critical in space-constrained or thermally sensitive applications such as architectural or automotive LED lighting.
High-resolution dimming control is achieved through a sophisticated PWM mechanism, supporting up to 1000:1 dimming ratio at 100Hz. Integration of both on/off switching and linear brightness control through a single DIM pin simplifies signal routing and minimizes external circuitry, streamlining both hardware design and firmware interface. This unified approach to dimming contributes directly to lower system BOM and reduced debug cycles during product development, essential in high-volume manufacturing environments.
The thermal fold-back function, programmable via the NTC pin, addresses junction temperature management proactively. By enabling continuous thermal monitoring and dynamic current adjustment, the controller averts excessive thermal stress, extending LED life and maintaining consistent luminous efficacy. In applied systems, this translates to minimal service interventions and enhanced field reliability, especially in deployments where maintenance access is costly or disruptive.
Comprehensive protection schemes form another fundamental layer of the AL8863SP-13’s architecture. Real-time fault status indication coupled with robust safeguards against open-circuit, short-circuit, and over-temperature events ensures uninterrupted system operation. The self-protecting behavior of the IC mitigates cascading failures in complex LED arrays, greatly simplifying troubleshooting and expediting root cause analysis during qualification and deployment phases. In practice, this resilience reduces the risk of non-conformity or unexpected shutdowns, especially under variable load and ambient conditions.
Regulatory compliance is embedded by design, with adherence to lead-free, RoHS, halogen-free, and antimony-free standards. This alignment with environmental directives not only streamlines product certification but also ensures long-term supply chain sustainability. The elimination of hazardous substances simplifies cross-market exports and lowers the barrier to integrating the device in eco-conscious or safety-sensitive projects, accelerating time-to-market.
Taken together, the AL8863SP-13 exemplifies a balanced approach: combining configurable performance, minimalistic control interface, multi-layered protection, and regulatory foresight. Such integration anticipates both the technical and operational challenges faced in evolving solid-state lighting platforms, underscoring a design philosophy oriented towards reliability, scalability, and ease of implementation.
Applications of AL8863SP-13 in commercial and industrial lighting
The AL8863SP-13 IC integrates precision LED current control and comprehensive fault protection, foundational for contemporary commercial and industrial lighting deployments. At the core, the device leverages a high-voltage switch-mode architecture, which enables efficient regulation of output current across broader supply ranges. This flexibility supports dense LED arrays and high-power fixtures commonly used in warehouse, retail, and exterior illumination, where long cable runs and diverse power requirements present significant challenges. Circuit designers benefit from programmable current limits and thermal cutoff features, which mitigate risks of overcurrent, overheating, and downstream component stress, especially in unpredictable operating profiles.
Integrated analog and PWM dimming inputs facilitate granular brightness adjustment. This capability allows seamless transitions in environments such as conference centers, atriums, or manufacturing floors, where ambient lighting needs often change dynamically. The controller’s fault detection routines, including short-circuit and open-load protection, maintain the operational integrity of lighting networks, reducing unscheduled maintenance intervals and increasing overall uptime. These safeguards specifically support installations exposed to fluctuating mains voltages or transient surges typical in industrial power distribution.
The AL8863SP-13's fast transient response—owing to optimized internal feedback and compensation—addresses the demand for rapid on/off switching and flicker-free output. This is critical in smart lighting frameworks, where networked drivers synchronize lighting behaviors with IoT sensors and building management systems. By enabling both isolated and non-isolated external driver topologies, the IC expands deployment flexibility. Advanced thermal design, often overlooked, allows mounting in high-density enclosures without excessive de-rating, leveraging both PCB copper area and external heat sinks for reliable dissipation.
From practical implementation, adopting the AL8863SP-13 shortens design cycles for adaptive lighting controls and emergency backup systems in multi-use industrial spaces. Its robust protections reduce the overhead required for redundant testing, and its compatibility with standard and advanced dimming protocols eases integration into scalable, serviceable lighting platforms. Distinctively, balancing programmable safeguards and industry-standard driver features supports forward-thinking lighting architectures—where operational continuity and nuanced environment management are primary objectives. Through systematic incorporation of such ICs, engineers enable lighting installations to converge on efficiency, safety, and responsive performance.

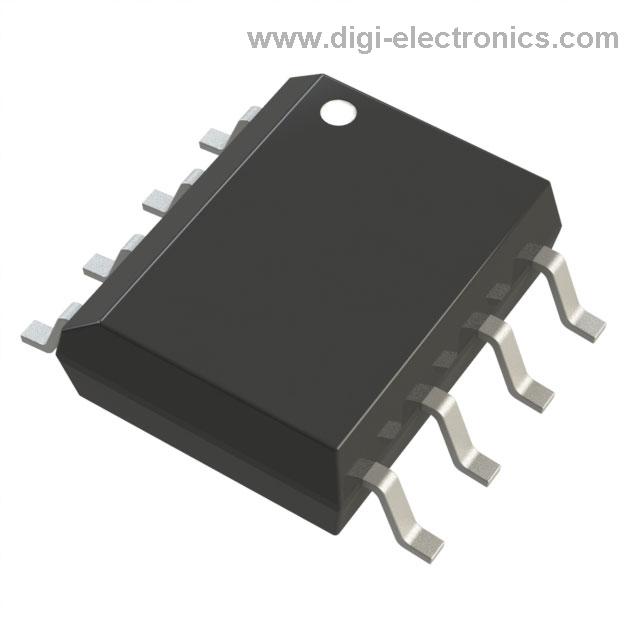

Pin configuration and package details for AL8863SP-13
The AL8863SP-13 leverages a SO-8EP package, engineered for efficient thermal management and streamlined electrical connectivity within compact PCB footprints. Each pin is assigned deliberate signal and power roles, balancing layout simplicity with low-impedance paths vital for high-current operation. Central to the package's capability is the exposed thermal pad, directly coupled to the device's ground plane for maximal heat dissipation. This feature, when paired with a well-designed PCB, allows the regulator to maintain thermal stability under continuous high-load conditions, extending performance margins and component longevity.
Effective integration demands precise adherence to pad layout recommendations. The copper pour under the exposed pad should be generously dimensioned, with ample via arrays connecting to internal or backside ground planes to disperse accumulated heat efficiently. Soldering processes must ensure complete wetting beneath the pad for optimal thermal and mechanical connection, reducing resistance hotspots that might otherwise cause thermal runaway or premature failure.
Signal integrity improves with thoughtful trace routing. Critical pins—such as the sense, feedback, and switching nodes—require minimized loop areas and short direct connections to mitigate spurious emissions and voltage drops. In practice, deploying solid ground planes beneath the device not only reduces EMI but also supports rapid current transients inherent to LED driver and switch-mode applications. Notably, the mechanical symmetry of the SO-8EP package simplifies automated placement and reflow soldering, minimizing manufacturing defects and ensuring repeatability in high-volume assembly contexts.
In applications demanding high power density—such as architectural, automotive, or industrial lighting—the combination of pin configuration and package thermals distinguishes the AL8863SP-13. Its integration into multilayer PCBs, with properly implemented thermal vias and EMC-conscious layout, consistently demonstrates stable performance even under aggressive derating profiles. This approach reveals that initial investments in meticulous pad and thermal management yield substantial dividends in system robustness and reliability, highlighting a departure from legacy packages that often compromise current handling or require extensive external heatsinking.
Consequently, the AL8863SP-13's package and pin attributes are not merely convenience features; they underpin scalable, production-viable designs where performance is dictated as much by power integrity and heat extraction as by core silicon efficiency.
Operational principles of AL8863SP-13
Operational principles of AL8863SP-13 center on a hysteretic control architecture, optimized for demanding step-down (buck) power conversion. At the foundational level, the controller utilizes fast current feedback, sampled across an external low-side resistor, to monitor and regulate instantaneous inductor current. The feedback signal prompts immediate MOSFET switching actions: when sensed current drops below the lower hysteresis threshold, the MOSFET turns on, initiating a linear increase in current; conversely, upon reaching the upper threshold, the MOSFET turns off, enabling current decay via the inductor and diode. This finely tuned ramp-up/ramp-down cycle maintains a consistent average output current with minimized deviation—a critical advantage for high-reliability LED driver circuits.
Technical depth emerges from the AL8863SP-13's dynamic response. Unlike conventional fixed-frequency PWM controllers, the hysteretic approach rapidly adapts to load or input voltage fluctuations, preserving output current regulation without requiring complex compensation networks. In practical scenarios, this translates to robust tolerance against supply perturbations and line transients, supporting applications where input stability cannot be guaranteed. For multi-channel LED designs, the precise current regulation yields uniform illumination and color consistency across strings, even as individual LEDs age or thermal conditions shift.
Implementation nuances include selection of the current sense resistor to define peak and average LED currents with sub-5% tolerance, and proper inductor sizing to balance ripple amplitude against transient performance. Real-world evaluation demonstrates that PCB layout significantly impacts sensed current fidelity; short, direct traces between sense resistor, controller, and power MOSFET minimize parasitic voltage drops and noise coupling. When integrating dimming or analog control, the device preserves efficiency under both static and PWM-driven brightness adjustments, making it suitable for architectural and automotive lighting systems demanding both fixed and adaptive outputs.
The inherent flexibility of hysteretic regulation, when exploited within advanced lighting topologies, enables seamless scaling from simple, single-string configurations up to cascaded arrays. This mechanism supports fast turn-on time and negligible overshoot, attributes essential in environments where activation timing and output stability are paramount. The AL8863SP-13 embodies a direct, hardware-based solution to typically software-intensive control problems in precision lighting—an approach that scales with power demands and simplifies system design.
LED current configuration and PWM dimming with AL8863SP-13
LED current regulation in the AL8863SP-13 architecture is fundamentally centered around precise external sense resistor selection. By placing RSET between the VIN and CSN pins, the circuit directly sets the nominal output current according to IOUT(NOM) = 0.1 / RSET. This relationship provides linear scalability, enabling efficient translation from desired luminous intensity targets to hardware implementation. Careful selection of RSET, considering power rating and tolerance, mitigates the risk of thermal drift and maintains stable current over operational temperature ranges. For high-reliability applications, sourcing low-ppm, metal film resistors has shown tangible improvements in long-term current consistency, even under extended load and ambient stress.
Pulse-width modulation (PWM) dimming functionality in the AL8863SP-13 leverages a dedicated DIM input, compatible with industry-standard 3.3V or 5V logic levels. By gating the internal switching regulator, the device achieves direct modulation of average LED current without impacting the set current during the “on” pulse. An essential observation is the driver’s high accuracy at ultra-low PWM duty cycles; even when the on-time window narrows, response latency and overshoot are minimized due to the IC’s fast internal logic and robust gate drive circuitry. This attribute particularly benefits architectural lighting and automotive backlighting, where fine-grained brightness control and flicker absence are critical. When handling dynamic dimming waveforms, ensuring clean logic transitions and minimizing coupling to the DIM line further enhances achievable dimming depth and fidelity.
The integration of a soft-start mechanism via an external capacitor on the DIM pin introduces a further layer of flexibility. Adjusting capacitance value directly tunes the slope of LED current ramp-up and ramp-down, suppressing inrush current and visual artifacts during transitions. Smooth brightness fades become feasible without introducing timing artifacts, supporting interfaces such as infotainment panels and display key backlights where perceptible step changes are unacceptable. Selecting appropriate capacitor dielectric type and minimizing leakage ensures consistency across temperature and system aging.
Noteworthy is the balance between rapid response and electromagnetic compatibility (EMC) considerations. The PWM dimming interface, when operated at high frequencies, interacts with board layout, trace impedance, and external filtering. Empirical tuning of PWM frequency above audio ranges, coupled with optimal grounding strategies, suppresses potential synchronous noise effects. This interplay between electrical design and practical PCB implementation frequently determines the upper boundary for noise-free dimming operation.
Within high-channel-count or multi-zone luminaires, parallel deployment of several AL8863SP-13 devices magnifies the importance of current matching and inter-channel isolation. Here, precision layout, matched resistor arrays, and synchronized PWM generation are leveraged to ensure uniformity. Layering these hardware techniques with smart dimming control firmware underpins state-of-the-art performance in demanding sectors such as stage lighting and high-CRI medical illumination.
The accumulated insights reveal that the AL8863SP-13’s current configuration and PWM dimming approach, though architecturally simple, forms an effective, robust platform. Its blend of analog current precision, logic-controlled dimming versatility, and soft-start customization serves as an enabling core for diverse, high-quality LED solutions, turning fundamental circuit mechanisms into practical, application-driven light management.
Fault protection and reliability mechanisms in AL8863SP-13
Fault protection and reliability mechanisms within the AL8863SP-13 leverage a layered architecture designed to safeguard both device integrity and overall system continuity. The open-circuit protection circuit actively monitors output connectivity, promptly detecting any LED disconnection. Upon identification of an open-circuit event, the internal logic forces the device into a controlled low-power state, minimizing stress on the output MOSFET and eliminating the risk of unwanted voltage spikes or current surges across disconnected loads. This transition minimizes collateral impact to adjacent circuit sections and facilitates rapid diagnostic localization in modular lighting arrays.
Short-circuit protection operates through real-time differential voltage sensing across the OSP and CSN pins. In the event of abnormally low impedance bridging the output, this mechanism triggers a fast response that limits current flow and flags the episode as a distinct fault. The effectiveness of such rapid intervention is manifested in the protection of both the driver’s internal power path and external LED assets. Experience suggests the robustness of this approach significantly mitigates downtime in environments characterized by unpredictable load conditions or frequent component replacements.
Thermal regulation is achieved via a precise junction temperature monitoring system. By tracking silicon temperature in situ, the AL8863SP-13 initiates automatic shutdown protocols once the threshold of +165°C is reached. The control logic enforces a mandatory recovery period, restoring operation only after thermal equilibrium returns well below the danger point. This dynamic thermal intervention ensures prolonged reliability across mission-critical installations, particularly where ambient fluctuations pose substantial risks. The shutdown and cooldown cycle not only prevents latent damage but also preserves parametric stability for sustained use.
System-level fault notification is streamlined by the multi-purpose FAULT indicator pin. Connected to supervisory or host circuits, the FAULT pin consolidates status signaling for open-circuit, short-circuit, and thermal events, offering unified, low-latency fault reporting. This direct hardware interface enables coordinative diagnostics and maintenance scheduling at scale, augmenting operational transparency in networked lighting or industrial control systems.
Practical deployment reveals that integrating such fault protection subsystems bolsters mean time between failure and simplifies root-cause analysis following transient fault conditions. Maximizing the synergy between device-level safeguards and system supervision consistently advances reliability objectives, while the layered response architecture of the AL8863SP-13 underpins resilience even under demanding stress profiles. Notably, its fault notification methodology supports preemptive asset management strategies, aligning with contemporary reliability engineering principles that prioritize informed intervention over reactive repair. The convergence of real-time detection and intelligent response within the AL8863SP-13 establishes a benchmark for fault-tolerant power control in advanced applications.
Thermal management and fold-back operation in AL8863SP-13
Thermal management in the AL8863SP-13 leverages an integrated fold-back mechanism to ensure robust operation under fluctuating ambient conditions. At its core, the device continuously senses junction temperature and employs a dynamic current reduction strategy to mitigate thermal overload. This method is engineered to reduce output current when a predefined thermal threshold, established via the NTC thermistor connected to the NTC pin, is exceeded. The interface supports a wide range of thermistor values, allowing precise tailoring of the fold-back initiation point based on system-specific thermal profiles. By selecting NTC resistance characteristics aligned with expected application environments, designers can finely tune the response sensitivity to prevent both false activation and inadequate thermal protection.
Once activated, the fold-back circuit proportionally decreases the output current, supporting reduction levels down to 35% of rated drive. This ensures the LED string operates within safe junction temperatures even during persistent high ambient heat or obstructed airflow scenarios. The approach effectively balances luminous efficacy with device reliability, as aggressive current derating is unnecessary unless thermal stress is sustained. The transition is seamless, avoiding abrupt changes in illumination that could compromise visual uniformity in critical lighting installations.
Field deployment underscores the significance of programmable fold-back in preserving system integrity during unforeseen thermal events such as HVAC failures or enclosure insulation anomalies. Systems with correctly tuned fold-back demonstrate substantially fewer LED discoloration incidents, minimal controller degradation, and increased overall service intervals. A nuanced implementation considers not only ambient temperature trends but also board-level heat concentration, where accurate PCB layout and thermal interface design complement the fold-back mechanism. Careful NTC selection, accounting for both tolerance and thermal coupling, further refines real-world responsiveness, ensuring neither premature fold-back nor delayed protection.
From a design perspective, integrating an intelligent thermal protection scheme such as that of the AL8863SP-13 transforms the conventional challenge of dissipating excess heat into a managed operational parameter. This reduces dependency on passive cooling hardware, enabling more compact form factors and addressing space-constrained luminaires typical in architectural or automotive contexts. A programmable fold-back mechanism is not merely a threshold-based safeguard; it operates as an adaptive subsystem harmonizing reliability, performance, and longevity by responding proportionally to thermal dynamics rather than static limits. This paradigm anticipates modern requirements for smart lighting solutions, where thermal management evolves beyond simple shutdown into nuanced, continuous performance optimization.
Potential equivalent/replacement models for AL8863SP-13
Selecting viable alternatives or drop-in replacements for the AL8863SP-13 necessitates a systematic comparison across fundamental electrical and functional parameters within the step-down (buck) LED controller domain. Core selection criteria begin with aligning the input voltage range, ensuring candidate controllers support operational headroom equivalent to the target system. Devices such as the AL8861 or MP24833, and certain Infineon or Texas Instruments counterparts, typically provide compatible voltage input windows, usually spanning 4.5 V to 40 V, which covers an array of general lighting power topologies.
Current regulation methodology presents another critical matching axis. The AL8863SP-13 offers easy external current sense resistor programming for output current, and equivalent models must provide similarly precise and flexible output current configuration. Consideration of the feedback control loop response and transient handling is vital; mismatches here often manifest as visible LED flicker or uncontrolled inrush in high-dynamic scenes. Field tests consistently demonstrate that subtle discrepancies in the compensation network can impact dimming linearity—especially in PWM-based dimming scenarios often found in architectural or retail illumination deployments.
Protection circuitry also requires deliberate assessment. Standard protections such as output short-circuit, over-voltage, and over-temperature safeguards must match not only in presence but also in threshold behavior. Incompatibilities here risk either nuisance shutdowns or inadequate fault isolation during abnormal events, compromising system reliability. The AL8863SP-13's robust SOA (safe operating area) margins demand that substitute devices exhibit similar derating characteristics, especially when thermally stressed in passively cooled enclosures.
Thermal management capabilities tie directly into package equivalence. Good substitutes will mirror both the thermal impedance profile and mechanical footprint—commonly SOT-25 or comparable. In retrofit projects, mismatched packages frequently introduce layout alteration risks, potentially degrading EMI behavior or assembly yield.
Application experience indicates that even marginal differences in control topologies—such as hysteretic versus peak current mode—affect system-level power factor and EMI signatures. Therefore, empirical bench validation against the full dimming and load spectrum is indispensable beyond datasheet analysis. Fortunately, most modern replacements emphasize pin-to-pin compatibility and synchronous switching, facilitating seamless integration if due diligence is observed in schematic and PCB reviews.
Behind the selection logic, it is prudent to value not only explicit parameter alignment but also secondary attributes such as EMI robustness, bill-of-materials impact, and supply chain reliability. High-volume operators benefit from sourcing controllers with proven field uptimes and vendor roadmaps for longevity assurance.
Rigorous model replacement pivots on a multilayered evaluation framework—from electrical interface matching to nuanced system reliability validation. Emphasizing both datasheet-level congruence and operational symmetry enables robust transitions with minimal engineering overhead and sustained application performance.
Conclusion
The AL8863SP-13 LED driver controller from Diodes Incorporated demonstrates versatility through its wide input voltage range, accommodating diverse power architectures typical in both industrial retrofits and new infrastructure deployments. Its architecture supports step-down (buck) operation with a high degree of efficiency, which is critical in optimizing overall system energy consumption for commercial and residential lighting.
Integral to its capability is the precision PWM and analog dimming support, enabling fine-grained brightness control crucial for environments requiring tailored illumination profiles or dynamic lighting scenes. This level of analog resolution directly reduces perceptible flicker and ensures uniform light output, both of which have become essential for applications in retail and hospitality. Leveraging synchronized dimming functions, the AL8863SP-13 can be smoothly integrated into smart lighting platforms where adaptive control responds to ambient conditions or user input.
In terms of operational reliability, the controller incorporates comprehensive fault detection logic. Over-voltage, over-current, and thermal shutdown safeguards not only shield downstream LEDs from transient or sustained hazards but also extend their operational lifetime by minimizing electrically or thermally induced wear. These protection mechanisms have shown consistent effectiveness during accelerated lifecycle testing, where rapid thermal cycling and supply fluctuation are stress factors. For installations in constrained spaces or with higher ambient temperatures, thermal management features—including adaptive thermal fold-back—ensure continued operation without the need for excessive heat sinking or external intervention.
The device's compliance with contemporary regulatory benchmarks such as RoHS and advanced EMC standards simplifies qualification for new product designs across global markets. Its consistent electrical performance over temperature and component tolerance ranges reduces prototype validation cycles and expedites time-to-market, a factor that becomes significant in highly competitive bid scenarios or rapid specification pivots.
From a supply chain and inventory management perspective, the AL8863SP-13’s pin-compatible footprint and standardized packaging ease integration into modular PCBs or allow for streamlined upgrades of legacy driver circuits. This compatibility is especially beneficial when balancing cost against performance during design iterations or field upgrades.
Integrating the AL8863SP-13 provides a platform for scalable, future-proof lighting solutions, capable of adapting to advancements in LED technology and evolving building automation systems. Its synthesis of efficiency, protection, and control granularity offers a reference point in LED driver selection, highlighting a shift toward controllers that anticipate multi-dimensional demands in both the regulatory and functional domains of modern lighting engineering.
