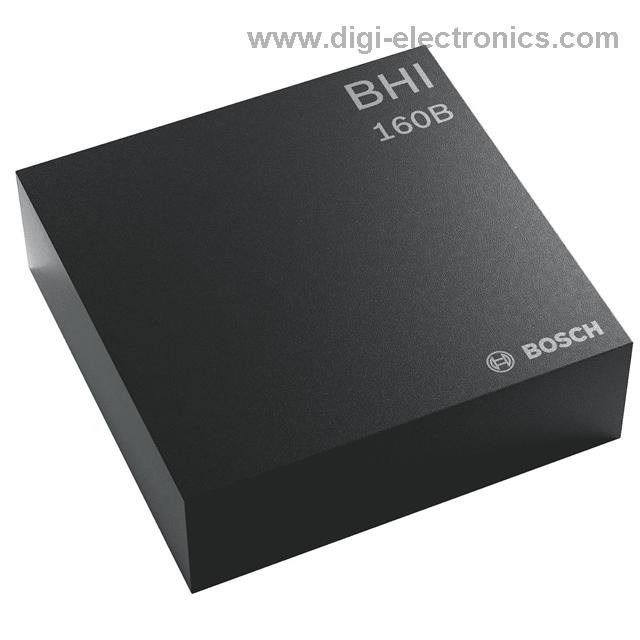

Product overview: BHI160B Bosch Sensortec 6-axis IMU sensor hub
The BHI160B from Bosch Sensortec exemplifies an advanced integration of inertial sensing and embedded intelligence in a single compact module. At its core, the sensor hub merges a 3-axis accelerometer and a 3-axis gyroscope, layered with an embedded programmable microcontroller and sophisticated sensor fusion algorithms. This architecture not only reduces the design footprint but also harmonizes data acquisition, fusion, and processing in real time, minimizing latency and ensuring deterministic response behavior—critical for time-sensitive motion processing tasks.
From an engineering perspective, the power management strategy of the BHI160B stands out. The ultra-low power design, with intelligent duty cycling and an always-on operation mode, enables persistent context-awareness in battery-constrained systems. Practical deployment in wearables or AR controllers demonstrates significant battery life extension, as high-frequency sensor data can be processed locally on the sensor hub, relieving the primary application processor from continuous high-power wakeups. This approach also mitigates thermal constraints, which is particularly advantageous in compact device layouts.
Sensor fusion is a central capability of the BHI160B, leveraging algorithmic pipelines within the microcontroller to combine raw accelerometer and gyroscope data. The result is robust dynamic orientation, activity classification, and gesture recognition with heightened noise immunity across diverse user conditions. Engineers benefit from mature, pre-calibrated algorithms resident on the device, simplifying system-level integration and reducing time-to-market. In practical developments, motion artifacts caused by rapid movement or mounting inconsistencies are handled locally, offering increased reliability compared to purely host-processed solutions.
The robustness of the BHI160B’s human-machine interface functionality, such as gesture-based command interpretation, opens additional dimensions in application innovation. Implementations in smart remote controls or interactive fitness equipment harness built-in gesture libraries, supporting sophisticated yet natural user experiences without the need for upstream firmware complexity. Deployment experience reveals that fine-tuning interface parameters on the device itself helps achieve consistent performance under varying ergonomic and environmental scenarios—a key differentiator for consumer products.
A notable insight is that the BHI160B’s programmable core allows for custom motion processing routines to run alongside Bosch’s standard algorithm stack. This makes it possible to prototype and iterate custom detection or filtering logic directly on the sensor hub, drastically reducing software overhead and communication bottlenecks with the host MCU. In production systems, this flexibility translates to maintainable motion features that can adapt post-deployment, whether for field upgrades or usage refinement.
By encapsulating high-precision inertial sensing, local computation, and sophisticated algorithmic layers, the BHI160B sets a reference for next-generation embedded motion solutions. Its integration model and adaptive processing pipeline give engineers a platform that not only addresses immediate technical objectives but also accommodates evolving requirements in performance-critical and context-aware device architectures.
Key features of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec demonstrates a specialized integration of motion sensing and embedded processing within a miniature 3.0 × 3.0 × 0.95 mm³ 24-LGA package, directly targeting dense PCB layouts typical for modern wearables and IoT devices. At the hardware level, the fusion of a high-performance 6-axis IMU (BMI160) with an embedded 32-bit Fuser Core microcontroller enables on-node preprocessing and intelligent decision-making. The microcontroller's floating-point architecture supports advanced algorithm execution, lowering host processor load and reducing overall system power consumption—a tangible advantage when designing for extended battery life.
Data fusion is executed by the resident BSX library directly from ROM, eliminating latency associated with host-software integration and facilitating deterministic multi-sensor output, which is crucial for real-time applications such as gesture or motion-driven interfaces. The library offers native recognition of significant user gestures, including tilt, pickup, glance, wake-up, and motion events, which streamlines system-level firmware development by eliminating the need for bespoke gesture classifiers or extensive sensor characterization in software. Underlying this capability is the device's reliable sampling and on-the-fly sensor calibration, which ensures sustained accuracy across a spectrum of environmental and operational variants.
Flexible configuration of internal RAM permits expansion of supported functions, from extended FIFO buffering that absorbs system latency to custom firmware modules updating the on-chip feature set. This fosters forward-compatible designs where algorithm updates and new gesture categories can be deployed in-field, keeping pace with both evolving user needs and device operating conditions. The fast-mode plus I²C interface, supporting data rates up to 3.4 Mbit/s, is distinctly beneficial during high-throughput acquisition bursts or in systems where minimizing host wake cycles is critical for power budgeting.
Applied experience indicates that deploying the BHI160B in resource-constrained architectures, such as slim wrist-worn devices, brings immediate reduction in overall BOM and accelerates design cycles due to the reduced need for off-chip MCUs or extensive motion software stacks. The explicit fusion of sensing and embedded intelligence enables rapid prototyping with direct mapping from gesture events to user interface actions, streamlining both firmware validation and user experience refinement.
An often-overlooked advantage is the device's modular firmware update capability, which enables the sensor node to adapt post-deployment, addressing issues uncovered in the field or supporting unforeseen usage patterns. This built-in adaptability supports sustainable device longevity, reducing versioning complexity and field return rates.
In summary, the BHI160B exemplifies an efficient trade-off between integration density and functional extensibility. Its architecture not only addresses immediate sensing and fusion requirements, but—through an agile framework of customizable firmware and hardware-ready interfaces—positions engineering teams to respond effectively to dynamic application domains, from AR input and activity recognition to context-aware system triggers.
Electrical characteristics and performance of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec presents a robust suite of electrical characteristics specifically attuned to the requirements of modern, power-efficient embedded systems. Its dual supply voltage domains—VDD (1.71V to 3.6V) for core functionality and VDDIO (1.6V to 3.3V) for I/O interfacing—streamline integration across diverse mobile and IoT platforms. This flexibility allows direct interfacing with low-voltage microcontrollers and mixed-voltage logic, minimizing the need for external level shifting and reducing BOM complexity.
Its thermal stability, spanning -40°C to +85°C, addresses both consumer electronics and industrial control environments. Under continuous sensor fusion operations, active current consumption is held near 300µA, which is considerably lower than competing solutions integrating similar 6-axis IMU functions. In practical system layouts, leveraging the deep sleep mode—which can drop current draw to 7µA—enables uninterrupted motion monitoring with negligible effect on battery longevity. Proactive adoption of intelligent power management algorithms further accentuates this efficiency; automatic transitioning between operational states provides optimal autonomy in wearable and asset-tracking devices.
The on-chip low dropout regulator, providing a steady 1.1V for the digital core, establishes tight noise margins and stable operation, especially given transient loads during data acquisition bursts. This integrated regulation simplifies board layout and enhances EMI resilience, an often-overlooked factor in high-density designs where sensor clusters share power rails.
Acceleration sensing capabilities feature programmable measurement ranges—±2g, ±4g, ±8g, and ±16g—each mapped onto a uniform 16-bit resolution. This granularity delivers consistent performance in both low-motion and high-impact use cases, such as gesture recognition versus tilt-based navigation in mobile platforms. The sensitivity scaling (specified in LSB/g) supports precise system-level calibration for applications requiring nuanced movement detection, like AR/VR controllers or vehicle telemetry modules.
A particularly valuable attribute is the tightly maintained zero-g offset, which counteracts thermal and mechanical drift common during assembly and operational lifespan. In field deployment, maintaining minimal offset over a wide temperature range boosts sensor reliability without frequent recalibration, enabling more consistent results in real-world applications where environmental conditions are dynamic.
Critical review of these features suggests deeper system integration benefits: adopting the BHI160B reduces the design effort for always-on motion interfaces and enables more aggressive system power budgets. Practical experience shows that careful PCB routing—especially symmetrical placement relative to inactive magnetic sources—amplifies offset stability. Moreover, exploiting selectable sensitivity settings allows reconfigurable designs without hardware changes, supporting a broad spectrum of products from fitness trackers to industrial automation nodes.
Ultimately, the BHI160B exemplifies a balance between ultra-low power operation and high-performance sensing, underscoring the engineering principle that integrated functional flexibility, when matched with disciplined power management, enables scalable and cost-effective sensor deployments.
Physical interfaces and integration for BHI160B Bosch Sensortec

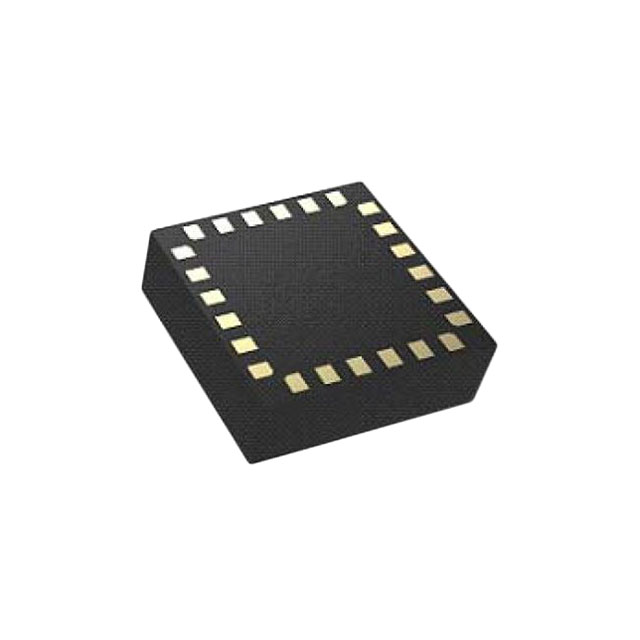

Integrating the BHI160B from Bosch Sensortec into embedded platforms starts with leveraging its compact 24-LGA surface-mount footprint, which simplifies high-density PCB designs. The well-documented pad layout enables precise PCB land pattern definition, supporting robust solder joint formation and minimizing the risk of open connections or tombstoning during reflow. Mechanical stability and sensor accuracy are heavily reliant on both the axis orientation during placement and adherence to recommended board-edge clearances, directly influencing inertial sensor performance by reducing board-induced stress and cross-axis sensitivity.
The data interface structure of the BHI160B centers on a high-speed I²C bus, allowing reliable and low-latency communication with the system host. The interface not only facilitates core data exchange but also supports connection of auxiliary external sensors, broadening the scope for custom fusion algorithms without complicating the hardware design. The internal RAM architecture is deliberately provisioned for buffering motion event measurements, delivering consistent sample timing despite host polling rates or transient bus interruptions. Register-mapped configuration provides fine-grained control over functional parameters, such as dynamic range, output data rates, and sensor operational modes, making the module adaptable to a wide variety of application requirements.
In production environments, maintaining sensor performance over time is linked to careful handling and compliance with thermal profiles during assembly. The manufacturer's tape-and-reel recommendations and RoHS3/REACH compliance status ensure that industrial integrators can align the BHI160B with global supply chain and environmental mandates, mitigating risk of non-compliance or latent process-related defects. Consistent reflow and cleaning practices, as outlined in reference specifications, are essential to protect the low-profile package and preserve long-term sensor integrity.
From a system engineering perspective, the modular integration methodology supported by the BHI160B architecture reveals opportunities for scalable firmware abstraction and rapid prototyping. The combination of flexible bus interface, over-the-air firmware update capability, and configurable register maps streamlines the transition from development to production, minimizing iteration cycles. Over time, experience demonstrates that early alignment of physical layout and interface configuration yields higher production yield and more consistent in-field sensor performance, especially in applications sensitive to signal timing and mechanical alignment, such as robotics and wearable devices. The true value of the BHI160B emerges when its physical interface, data architecture, and compliance features are systematically orchestrated within a tightly controlled design and production workflow.
Supported sensor types and data processing capabilities of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec is engineered around an intelligent sensor fusion core, designed to streamline acquisition and interpretation of motion and inertial signals. At its foundation, the device integrates a three-axis accelerometer and gyroscope, delivering primary metrics such as acceleration, angular velocity, and orientation in real time. Embedded firmware routines leverage these raw signals to calculate compound data, including gravity vectors, linear acceleration, step counts, and context-aware gesture detections. These derivatives reduce the need for host-side processing and accelerate application response times, a distinct advantage when designing for battery-sensitive or latency-critical systems.
A distinguishing trait is the flexible I²C sensor interface, which extends data input channels to external digital sensors, most commonly a magnetometer. When an external magnetometer is present, the BHI160B achieves full nine degrees of freedom (9DoF) fusion. This expanded sensor set enables accurate calculation of absolute device orientation, supporting both Euler angle and quaternion outputs. The inclusion of geomagnetic rotation vectors broadens utility in augmented reality and robotics, where drift compensation and true north referencing are pivotal.
Internally, the BHI160B deploys Bosch Sensortec’s BSX fusion library in ROM, ensuring deterministic execution and consistency across embedded and mobile platforms. The library orchestrates multi-sensor data streams through time-synchronized fusion algorithms that adapt dynamically to sensor context and noise conditions. In practical deployment, this fusion core enables precise activity recognition and gesture detection—functions such as step counting, tilt detection, or wake-on-motion can be configured via firmware, releasing the host microcontroller from continuous polling. Direct compatibility with Android sensor APIs further accelerates integration within mobile operating environments, yet the architecture remains portable for non-Android applications, offering a comprehensive event and data interface regardless of host software stack.
In field deployments, performance benefits are realized in wearable and IoT scenarios, where the BHI160B permits always-on motion detection and low-power context awareness. Fusion outputs remain robust even when subjected to irregular motion patterns or magnetic interference, thanks to adaptive noise filtering and error calibration routines within the BSX kernel. Real-world experience reveals that system stability improves when sensor placement and calibration routines are optimized, minimizing accumulated drift and maximizing orientation accuracy. This reliability enables confident deployment in advanced UI control, pedestrian navigation, and health-tracking applications, where seamless user interaction and data integrity are paramount.
The holistic package formed by the BHI160B’s native fusion, extensible sensor interface, and host-independence sets it apart for designs demanding both precision and efficiency. The ability to offload computationally intensive processing to the device level remains a critical enabler for miniaturization and power scalability in modern embedded products. Implicitly, the success of such a system rests on tightly integrated hardware-software synergy—robust sensor calibration, properly configured firmware, and careful system-level signal management collectively determine final application performance.
Gesture recognition and activity monitoring functions of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec integrates advanced gesture recognition and activity monitoring, leveraging on-board sensor fusion and embedded intelligence to delineate user context with minimal latency and power overhead. Central to its operation is a tightly coupled sensor hub architecture, where inertial measurement data from accelerometer and gyroscope inputs undergo real-time analysis via onboard algorithms. These mechanisms enable reliable classification of user activities such as standing, walking, running, cycling, and vehicular transit. By working at the signal and feature-extraction layers, the BHI160B segments and labels continuous motion streams, allowing downstream applications to access semantically meaningful events rather than raw, unfiltered sensor data. This abstraction streamlines higher-level application logic and reduces system complexity.
Gesture event detection within the BHI160B operates on temporal and spatial sensor data patterns. The device's firmware can differentiate nuanced device manipulations, including pick-up, tilt, glance, and wake gestures. Each gesture triggers a corresponding interrupt or event flag, allowing host processors to remain in low-power states until true user engagement is detected. Such function-level granularity is particularly useful in ultra-low-power wearables and battery-sensitive IoT control nodes. Optimizing firmware thresholds and combining gesture primitives with custom logic significantly amplifies implementation flexibility. This approach promotes efficient hardware-software partitioning, where timing-critical logic executes on the sensor while application-specific responses remain at the host level.
The sensor’s step counting and indoor navigation capabilities are augmented by robust motion segmentation, overcoming challenges such as drift and transient artifacts commonly observed in inertial sensing. Direct experience in prototyping personal navigation devices reveals that Bosch’s built-in filters and step detection state machines maintain tracking fidelity across diverse movement profiles, even within irregular environments like staircases or shifting vehicle platforms. Leveraging the sensor’s context classification layers can eliminate the need for third-party motion libraries, reducing firmware footprint and time to market.
Deployment scenarios for the BHI160B encompass wearables, smart remotes, and mobile control platforms seeking intuitive, gesture-based interfaces. Its adaptive gesture detection stack supports rapid contextual adaptation—responding to new usage patterns without major energy penalties. In practice, integrating the BHI160B streamlines hardware design cycles, as the sensor reduces demand for secondary components while delivering application-ready outputs via industry-standard interfaces.
A key differentiator lies in the capability to customize firmware for unique use cases. Fine-tuning motion classifiers and layering proprietary algorithms on top of Bosch’s baseline models open paths for product differentiation, especially in saturated consumer electronics segments. This flexibility, combined with mature reference platforms, enables rapid iteration and competitive positioning. In sum, the BHI160B’s gesture recognition and activity monitoring represent a robust, extensible foundation for next-generation, context-aware user interfaces and analytics-driven applications.
Device initialization and configuration workflow of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec exemplifies a sensor hub architecture wherein device initialization and configuration are streamlined for embedded system integration. Initialization sequence commences with a hardware reset, ensuring the device enters a known baseline state. Subsequently, the boot mode is selected, typically through pin strapping or serial command, dictating whether the internal bootloader or external flash will provide firmware. Main execution startup follows, transitioning the sensor hub into application-ready state. This stage is critical for system stability; precise timing of reset and boot signals directly impacts successful firmware handshakes.
Negotiation of the host interface typifies the next phase. The BHI160B supports versatile serial protocols such as I²C and SPI, allowing adaptation to varying host microcontroller capabilities. Handshake procedures—including device identification, capability queries, and power-state transitions—must be executed in adherence to Bosch’s register specifications, establishing communication integrity before operational parameters are applied.
Configuration occupies a multi-layered role. Sensor mapping assigns data streams from integrated inertial, magnetic, and auxiliary motion sensors to logical processing channels. Choice of sensor data rates requires an optimized balance between power consumption and output fidelity; experienced implementers deliberately set sampling frequencies based on system latency constraints and noise tolerances. Batch processing leverages the dual FIFO buffer architecture, separating wakeup and non-wakeup event traffic. Accordingly, the system can efficiently aggregate routine data while prioritizing interrupt-driven, latency-sensitive measurements, critical for wearable or motion-triggered applications. This batching minimizes bus traffic, enhances power savings, and conforms to modern edge-processing paradigms.
For continuous performance tuning, the BHI160B supports in-field firmware patching and parameter updates via standard communication links. This necessitates robust host firmware capable of chunked-download with verification, preserving device reliability. Effective use of the detailed register-level documentation offered by Bosch is essential—common pitfalls such as improper sequence ordering or inconsistent flag polling frequently lead to initialization failures or intermittent sensor disconnects. Applying disciplined read-modify-write operations and comprehensive status monitoring mitigates such integration risks.
Layering advanced settings, such as dynamic range selection, sensor fusion control, and interrupt routing, deepens application domain adaptation. This customization enables tailored responses to domain-specific demands, such as low-latency gesture recognition or context-aware power optimization.
Strategic decisions during integration—such as decoupling sensor event processing from real-time host application flows—confer resilience and scalability. Utilizing the BHI160B’s native batching and event status indicators, system architects can offload routine sensor housekeeping and focus host resources on higher-value analytics.
Multifaceted implementation with the BHI160B thus depends on systematic adherence to initialization states, precise configuration mapping, and procedural rigor in host-device interactions. The device’s architectural flexibility, when exploited with methodical software frameworks, supports rapid development for diverse embedded sensing scenarios, from fitness trackers to industrial condition monitoring, consistently upholding accuracy, responsiveness, and energy efficiency.
Power management, modes, and consumption of BHI160B Bosch Sensortec
The BHI160B from Bosch Sensortec integrates nuanced power management tailored for embedded systems where energy efficiency is paramount. Its architecture implements hierarchical power modes: run, normal, sleep, deep sleep, and idle. Each mode offers precise operational granularity, enabling the sensor hub to align energy consumption with immediate application demands. For instance, transitioning from run to sleep mode automatically reduces internal clock rates and selectively powers down non-critical circuits, maintaining core sensor readiness while sharply curbing current draw.
Dynamic power scaling based on system activity is a distinctive aspect of the BHI160B. When high-frequency computation—for example, sensor fusion at 100Hz—is necessary, the device typically averages 300µA. This is achieved through optimized firmware routines and minimal peripheral activation. Conversely, in application idle states or during extended inactivity, deep sleep mode is engaged with current below 10µA. Here, wakeup latency remains low, driven by an interrupt-driven architecture, so that sensor responsiveness is not sacrificed even in deep conservation scenarios.
Automated state transitions underpin seamless operation, eliminating the need for external microcontroller supervision. Power mode changes are triggered either by host-side commands or internal activity monitors, facilitating fine-grained energy management keyed to real user patterns such as sporadic motion or inactivity. This autonomy in power control fosters straightforward integration into wearable devices, IoT nodes, and mobile platforms, where battery longevity is critical.
Practical design experience demonstrates that leveraging the BHI160B’s idle and sleep states yields substantial runtime extension in motion-triggered applications. For example, in smart wearables, orchestrating mode transitions to coincide with genuine activity windows—as flagged by low-level accelerometer interrupts—minimizes unnecessary power drain. Developers can also employ low-power host polling strategies, relying on the internal state machine to filter out redundant data events, further reducing average consumption. This approach unlocks multi-month battery lifetimes even under intermittent high-performance demands.
An implicit lesson in deploying the BHI160B is that thoughtful synchronization of host and sensor power strategies delivers the best outcomes. Ensuring that host wake cycles are matched to actual sensor data needs avoids wasted transitions and maximizes both user experience fluidity and battery savings. This layered, context-aware power management—rooted in the underlying silicon design—translates into tangible system-level advantages, especially as application domains demand ever more compact and durable form factors.
Package information and mounting guidelines for BHI160B Bosch Sensortec
Effective integration of the BHI160B Bosch Sensortec sensor hub requires careful attention to package design and mounting methodology. The device is delivered in a 24-LGA (3×3 mm) surface-mount format with precisely engineered features for optimal sensor function. Proprietary axis marking is embedded on the package itself, streamlining alignment during pick-and-place, and minimizing risk of orientation errors that would otherwise compromise sensor output accuracy. Recommended PCB landing patterns are provided, designed to stabilize mechanical mounting and take into account both pad dimensions and solder mask openings; these patterns directly impact solder joint integrity and resilience over operational life.
At the soldering stage, adherence to designated profile parameters is mandatory. Optimal reflow conditions—including controlled temperature ramp-up and dwell times—reduce the likelihood of warpage and internal stress, which is especially important given the miniaturized footprint and sensitivity of the MEMS elements within the BHI160B. Handling guidelines dictate avoidance of direct mechanical force on the package during placement and post-reflow inspection, as lateral strain on the LGA leads may degrade electrical connectivity. Empirical observations reinforce that robust process control reduces failure rates during both initial mounting and subsequent environmental qualification.
Tape-and-reel specifications support automated high-throughput assembly, ensuring consistent presentation for machine vision systems during board population. Compliance with RoHS3 and halogen-free directives is not only obligatory but also assures compatibility across global supply chains targeting consumer and industrial markets. Environmental certifications are complemented by careful electrostatic and moisture management throughout logistics, averting latent reliability risks attributed to cumulative exposure.
Deploying the BHI160B at scale demands integration of these manufacturing and handling principles into production workflows. Subtle, experience-driven optimizations—such as adapted stencil apertures to balance solder volume—can enhance yield. The sensor hub’s package engineering exhibits a deliberate synergy between mechanical robustness and precision placement requirements. When operational fidelity and manufacturing efficiency are both prioritized, defect rates diminish and downstream calibration becomes straightforward. This approach demonstrates that seemingly incremental adjustments in mounting and hardware integration process can have outsized effects on performance sustainability, validating the value of meticulous engineering practices.
Potential equivalent/replacement models for BHI160B Bosch Sensortec
Selection of suitable alternative inertial measurement units (IMUs) to the BHI160B from Bosch Sensortec requires an ordered evaluation of both intrinsic sensor specifications and system-level integration parameters. The BHI160B distinguishes itself by integrating a 6-axis sensor (accelerometer plus gyroscope) and a programmable microcontroller, packaged for ultra-low power consumption and efficient sensor fusion. When encountering lifecycle issues such as discontinuation or allocation constraints, reviewing adjacent models like the original BHI160 and the BMI160 series within the Bosch portfolio provides a direct substitution path. The BHI160 mirrors the 6-axis architecture and embedded sensor fusion microcontroller, though it may differ in firmware ecosystem maturity or package configurations. The BMI160, on the other hand, is focused on raw sensor output, forgoing the onboard fusion microcontroller, and thus requires implementation of sensor fusion on the host, impacting integration time and firmware complexity.
Detailed benchmarking should start at the physical layer—evaluating aspects such as output data rate consistency, noise density, bias stability, temperature sensitivity, and vibration rejection. Data integrity and dynamic range specification should be mapped against target application thresholds, whether in wearable navigation, robotics, or condition monitoring platforms. Board-level integration factors—including LGA/land grid array footprint compatibility, pin-mapping, and I2C/SPI multiplexing—must be prioritized to minimize redesign costs and speed time to production.
Power profiling must be dissected further into active operation, standby, and deep-sleep current consumption, particularly for battery-constrained domains or always-on context-aware systems. Devices with onboard motion-activity recognition offload algorithmic computation from the main processor, realizing net energy savings—this alignment should be confirmed when considering replacements like the BHI160, which retains programmable firmware hooks similar to the BHI160B.
Assessment of alternatives from other vendors, such as STMicroelectronics’ LSM6DSOX, InvenSense’s ICM-42688, or TDK Invensense’s MPU-6500 family, mandates careful review beyond mere electrical equivalence. Onboard digital processing functionality, the supported firmware development kit (embedded vs. host-based), and register map accessibility introduce nuanced integration challenges. Firmware stack implications become pronounced if sensor fusion, gesture recognition, or machine learning primitives must be reconstructed or ported, potentially elevating project risk where in-field update capability is limited.
Practical deployment experience reveals the host microcontroller and main power management topology often dictate the real-world exchangeability of these IMUs. Subtle mismatches in sensor self-test routines, FIFO management, interrupt latency, or bus contention can emerge during board bring-up or field testing. A rigorous pilot build, supplemented by automated validation scripts targeting critical sensor modes and corner-case dynamics, streamlines qualification. Iterative firmware adaptation—particularly around sensor initialization sequences—tends to command the majority of engineering bandwidth, underscoring the value of detailed reference design documentation and transparent vendor support relationships.
An often-overlooked dimension is maintenance trajectory. Selecting families with demonstrated roadmap continuity, supported toolchain updates, and active technical communities reduces long-term risk and facilitates timely bug resolution. Where forward-compatibility and incremental feature growth are necessary, favoring IMU solutions with well-documented migration guides or generic host APIs can preserve integration effort across hardware iterations. Observing these layered technical and practical considerations enables robust, minimally disruptive substitution strategies for BHI160B-dependent designs.
Conclusion
The BHI160B sensor hub from Bosch Sensortec integrates motion detection, sensor fusion, and gesture recognition within a compact, ultralow-power framework. Its architecture is built around a tightly coupled 32-bit programmable microcontroller and a dedicated sensor fusion co-processor, which execute a proprietary Bosch algorithm stack. This approach ensures low-latency, high-precision sensor fusion, providing pitch, roll, and yaw outputs as well as algorithm-driven context and activity recognition. The BHI160B’s architecture supports on-chip fusion of multiple sensor inputs, such as accelerometers, gyroscopes, and magnetometers, facilitating versatile motion analysis while remaining agnostic to the specific sensor vendors—an advantage in second-sourcing scenarios or systems requiring tailored sensor combinations.
Power management plays a central role in BHI160B deployments, as its event-driven processing path allows the host MCU or application processor to stay in sleep mode for extended intervals. This architecture not only extends battery life critically in wearables and mobile devices, but also enables always-on sensing with minimal current draw (<1.5 mA typical for sensor fusion and gesture recognition). Advanced interrupt structures and configurable FIFO depths further reduce wakeup frequency, optimizing system-level energy budgets—a core consideration in battery-powered and highly miniaturized designs.
In terms of system integration, the BHI160B simplifies physical and electrical layout via flexible I2C and SPI interfaces and modular firmware stack. Drivers and reference code accelerate prototyping and validation. Pre-integrated gesture recognition simplifies the implementation of hands-free user interfaces, supporting swipe, pick-up, and tap events even under constrained processing budgets. This reduces reliance on host-side computation, allowing faster time-to-market without sacrificing robustness. Practical field deployments demonstrate that firmware-over-the-air (FOTA) support allows for long-lifecycle device evolution, with real-time analytics firmware extensions applied after deployment to accommodate shifting use cases or regulatory landscapes.
In wearables and mobile electronics, the sensor hub enables context-aware features such as step counting, activity classification, and adaptive power management. In industrial automation and robotics, the BHI160B simplifies complex kinematic analysis and provides inertial feedback at edge nodes, supporting new classes of energy-efficient, context-sensitive modules. Its vendor-agnostic sensor integration model further supports diverse supply chains and mitigates sourcing risks, a subtle but critical value proposition as hardware cycles shorten and market requirements diversify.
Viewed in the context of evolving motion intelligence requirements, the BHI160B stands out for its balance of flexibility, scalability, and low system overhead. Adoption experience consistently validates that its modular firmware architecture enables seamless feature extension, securing investments in product roadmaps and yielding tangible agility during iterative development cycles. As device architectures continue to converge around always-on, context-driven intelligence, the BHI160B persists as a strategic enabling platform across consumer, medical, and industrial domains.
