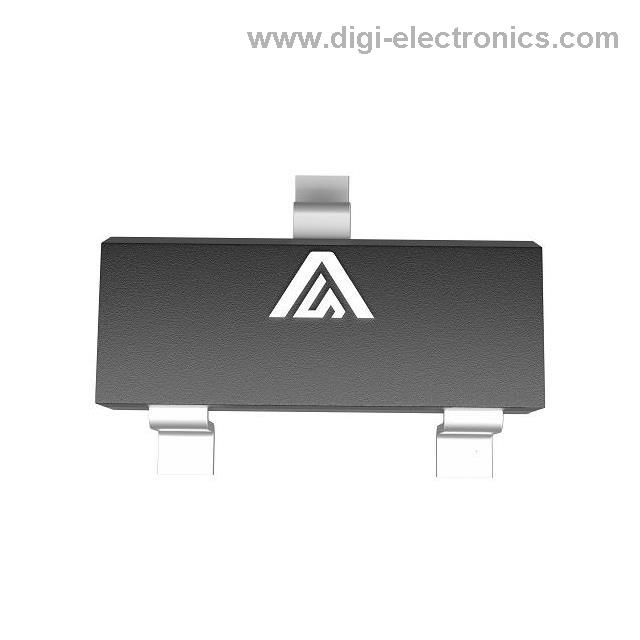

Product overview: SM712 TVS diode by ANBON SEMICONDUCTOR
The SM712 TVS diode from ANBON SEMICONDUCTOR represents an optimized approach to protecting modern electronic circuitry from unpredictable voltage transients. At its core, the device integrates a specialized silicon-based structure engineered to rapidly turn on once the applied voltage surpasses its breakdown threshold. This mechanism, quantified by a minimum breakdown voltage of 7V, ensures precise protection for communication lines and control circuits operating within similar voltage domains.
The use of the SOT-23 surface-mount package enables seamless integration into high-density PCB layouts, reducing parasitic inductance and allowing closer proximity to the nodes most vulnerable to voltage spikes. This physical profile supports automated placement in mass production environments, balancing circuit board space constraints against the necessity for robust transient suppression. Practical deployment frequently involves positioning the SM712 at input/output interfaces, where ESD strikes and surges are most likely to originate.
A critical engineering consideration lies in the diode’s clamping performance. Upon activation during a surge event, the SM712 diverts the excess current away from sensitive nodes, maintaining a voltage below the failure threshold of downstream components. Its response time is measured in nanoseconds, making it particularly effective in environments characterized by fast-rising pulses—such as USB, RS-485, or CAN bus signal paths. The device’s bidirectional design further enhances versatility, allowing it to safeguard differential signal lines without polarity concerns.
The real-world effectiveness of the SM712 has been observed in applications where reliability under repeated transient conditions is paramount, including industrial automation modules and networking equipment subject to extensive field deployment. A consistent challenge remains in balancing the diode’s breakdown voltage with its maximum allowable clamping voltage to minimize stress on protected ICs while ensuring the TVS device itself does not undergo premature degradation. In optimized layouts, routing minimizes lead lengths between the TVS diode and target pin, reducing overshoot during a transient event and improving overall suppression efficiency.
Integration of the SM712 also aligns with evolving design strategies emphasizing comprehensive system-level ESD immunity. By coordinating this device with secondary filtering and controlled PCB impedance, engineers achieve multi-layered protection schemes that exceed basic compliance standards. These approaches expand the utility of the SM712 beyond bare component selection, embedding it into broader reliability frameworks critical for mission-directed electronics.
A noteworthy insight stems from the judicious application of the SM712 in mixed-voltage systems. Its 7V breakdown accommodates protection for both legacy and next-generation logic families, supporting smooth migration in projects upgrading interface speed or protocol. The combination of compact footprint, repeatable clamping behavior, and high surge tolerance places the SM712 as a preferred node-level safeguard for engineers seeking to reinforce their designs against transient threats without compromising board real estate or system throughput.
Key electrical characteristics of SM712 TVS diode
The SM712 TVS diode integrates precise electrical characteristics tailored for surge suppression in sensitive electronic systems. Its breakdown voltage, established at a minimum of 7.5V, aligns with common signaling and low-voltage power rails, facilitating seamless integration without imposing excessive leakage currents during normal operation. The device’s clamping voltages—fixed at 18V and 26V, depending on polarity—represent the maximum threshold beyond which the diode rapidly diverts transient energy, confining voltage excursions and mitigating risks to subsequent circuitry. These clamping levels are deliberately chosen to strike a balance between robust overvoltage protection and low residual stress on protected devices, minimizing the potential for latent component degradation resulting from repeated exposure.
The diode’s surge handling capability, specified by an 8/20μs peak pulse current of 12A, underscores its suitability for applications where system interfaces endure physically harsh conditions, including long cable runs or direct exposure to external connectors. In practice, this enables the SM712 to absorb large currents from electrostatic discharge (ESD), lightning-induced surges, or switching transients, translating to demonstrable reductions in field failure rates for input/output interfaces. Careful matching of the TVS diode’s parameters to expected threat levels remains central to system reliability, demanding precise analysis of the protected node’s voltage tolerance and the magnitude of anticipated disturbances.
Engineers commonly deploy the SM712 in differential mode configurations for RS-485 transceivers, CAN bus lines, or sensor interfaces, leveraging its bidirectional capability for symmetric signal lines. Placement strategy is essential—the diode should sit as close as possible to the entry point of the threat vector, such as an external connector, to suppress transients before they couple into downstream traces. During PCB layout, minimizing parasitic inductance through short, wide traces maximizes clamping response and energy shunting efficiency. These measures, grounded in both theoretical design and iterative lab validation, are critical for achieving compliance with EMC standards and extending system longevity under real-world transient stress.
A nuanced consideration is the diode’s dynamic resistance and response time, as excessive voltage overshoot during fast-rise surges can breach protected device ratings. Practical design reviews often reveal that complementary filtering elements, such as small ceramic capacitors, further enhance protection by shaping the input waveform and suppressing high-frequency ringing. This integrated approach, coupling the robust nonlinear response of the SM712 with engineered board-level mitigation, yields consistently reliable operation in diverse industrial and automotive scenarios, especially where maintenance access is limited and failure costs are high.
Ultimately, the true value of devices like the SM712 emerges from rigorous parameter selection aligned with the specific application environment. By combining datasheet analysis with empirical bench testing and field observation, optimal protection topologies are achieved without incurring unnecessary design overhead or cost. The diode’s role thus extends beyond mere specification compliance; it embodies a strategic element in the resilience of modern electronic infrastructure.
Package details and mounting information for SM712 TVS diode
The SM712 TVS diode, housed within the industry-standard SOT-23 surface-mount package, achieves significant space optimization on printed circuit boards, a factor critical in compact and high-density designs. The geometry of the SOT-23 enables seamless integration into automated assembly processes, reducing pick-and-place errors and improving production throughput. Consistency in the package’s pin configuration supports straightforward reflow soldering, which yields reliable electrical connections, even under high-volume manufacturing conditions.
A core engineering consideration is thermal management. While the SOT-23’s minimal footprint enhances board utilization, its limited heat dissipation capacity necessitates thoughtful placement on the PCB. Locating the SM712 near ground planes or in proximity to copper pours increases its ability to handle transient currents without exceeding temperature ratings, enhancing operational robustness. Strategic positioning also simplifies test point access, enabling rapid verification in process flows such as ICT or functional test stages, especially relevant when the diode is specified for ESD protection in exposed interfaces.
Application scenarios extend across data lines, sensor nodes, and automotive electronics, where both the diode’s response time and form factor are leveraged for surge protection without impeding layout flexibility. Experience demonstrates that orientation relative to signal traces affects parasitic inductance; routing should minimize loop area to preserve clamping speed. Additionally, proximity to high-frequency signals demands tight control over pad design to maintain impedance and prevent signal integrity degradation.
Optimization often emerges from iterative prototyping. Incremental adjustments in SM712 placement, coupled with empirical measurement of thermal profiles and signal quality, identify thresholds beyond which performance degrades. These subtleties underline the necessity of balancing physical constraints against protection requirements, a challenge frequently solved by coupling the SM712 with ancillary layout enhancements.
The capacity of the SOT-23 package to unify manufacturability with electrical protection offers strategic leverage for engineers. Intelligent deployment of the SM712 does not merely conserve space; it elevates system reliability under real-world surge events when combined with precise mounting and informed design choices.
Typical use cases for SM712 TVS diode in engineering applications
The SM712 TVS diode occupies a strategic role in the design of robust communication and data acquisition systems. Its bidirectional configuration and precise breakdown voltage make it an optimal circuit guardian in applications where both voltage polarities require suppression without compromising signal integrity. At the device level, the diode leverages fast response times and low clamping voltages, efficiently diverting surge currents away from sensitive node points. These intrinsic mechanisms ensure that microcontroller GPIOs, RS-485 transceivers, or other high-impedance ports remain within their safe operating boundaries during transient overvoltage conditions.
Deployments across industrial automation consistently illustrate how the SM712 defends I/O architectures. Controllers interfaced with remote sensors via long, unshielded cables are particularly vulnerable to induced surges from adjacent high-power equipment. The diode integrated near the entry point of the controller acts as the first line of defense, minimizing disruptions caused by cross-system coupling and electromagnetic interference. This architectural positioning enables system resilience, even where cable routing cannot be physically shielded or shortened. A similar logic applies to SCADA systems, where distributed nodes require localized surge protection to maintain uptime and signal reliability.
In automotive electronics, electrical disturbances are notoriously frequent due to environment-induced ESD and load dump events from switching operations. The SM712’s compatibility with 12V and 24V bus systems, paired with its ability to handle repetitive stress, suits applications such as infotainment gateways or telematics modules. By placing the diode as close as possible to the vulnerable circuit domain, designers mitigate risks associated with distributed capacitance and line inductance, preventing voltage overshoot from coupling into high-speed digital interfaces.
Critical engineering judgement must emphasize accurate matching of the diode’s working voltage and peak pulse current to the anticipated surge threat. Over-sizing ensures headroom but can inadvertently increase leakage or degrade signal fidelity at normal operating voltages. Conversely, under-specification risks device failure during infrequent but severe transient events. Evaluating design margins from real oscilloscope captures of the operational environment—rather than relying exclusively on datasheet maxima—often leads to well-balanced choices in protection levels without unnecessary cost or board area penalties.
Empirical field data reinforce that SM712 implementations dramatically reduce in-warranty system returns attributed to EOS (Electrical Overstress) damage, especially in distributed systems subjected to unpredictable environmental noise. A layered approach, placing SM712 devices at both the board-level entry and at secondary internal nodes, has been observed to maximize robustness in mission-critical deployments. This proactive topology minimizes downtime and ensures the integrity of data communication links under adverse operating conditions, highlighting the importance of thorough threat modeling during the initial system protection strategy.
Reliability and quality certifications for SM712 TVS diode
The SM712 TVS diode exemplifies a comprehensive approach to reliability through adherence to stringent industry and internal certification frameworks. At the foundational level, the device’s design and fabrication are governed by standards such as ISO9001 for quality management and IEC or JEDEC guidelines for component robustness. These protocols mandate precise process controls, rigorous documentation, and product traceability, establishing a verifiable chain of compliance from raw materials to finished goods. ANBON SEMICONDUCTOR’s application of such standards ensures consistency in electrical characteristics and form factor, reducing variability in end-use environments.
Layered onto these baseline requirements are the device-specific qualification routines. The SM712 undergoes accelerated life testing, such as high-temperature reverse bias and surge robustness verification, to validate endurance under stress profiles that mimic the operational extremes faced in field deployments—particularly in industrial automation, telecommunications, and sensitive control systems. The collected data drive ongoing improvements in die layout and encapsulation chemistry, reflecting a feedback loop between field reliability data and process engineering. This results in TVS diodes that can withstand repetitive transients while maintaining tight clamping tolerances, a critical quality for safeguarding high-value integrated circuits.
Third-party certifications fulfill an essential role in risk management throughout the supply chain. They provide procurement teams with impartial validation of the manufacturer’s claims, increasing confidence when integrating the SM712 into applications where component failure translates directly into operational downtime or safety incidents. Integration processes in procurement often leverage these credentials as gating criteria, filtering out unqualified suppliers and reducing the incidence of latent failures in deployed systems.
In practical application scenarios, rapid qualification cycles are enabled by the availability of comprehensive certification documentation. This expedites acceptance by engineering teams tasked with designing secure power interfaces or signal line protection in environments with substantial electromagnetic interference. The combination of process discipline, product innovation, and robust third-party verification underpins not just the immediate reliability of the SM712 but also its suitability for long-life cycles and stringent industrial operation. The layered certification strategy, backed by demonstrable field performance, ultimately transforms abstract quality systems into tangible operational advantages, ensuring that device selection aligns tightly with both technical and risk-driven objectives.
Potential equivalent/replacement models for SM712 TVS diode
When identifying potential equivalent or replacement models for the SM712 TVS diode, a systematic approach is required, centered on three primary parameter domains: electrical characteristics, mechanical compatibility, and application-specific reliability standards. Electrical equivalence is primarily anchored in clamping voltage, reverse standoff voltage, breakdown voltage, and peak pulse current ratings. For transient voltage suppression protection similar to that provided by the SM712, candidate devices must deliver a comparable voltage window—typically ±12V breakdown with a unidirectional or bidirectional configuration as dictated by circuit topology.
Within the SOT-23 package constraint, device alternatives such as the PESD12VS2UT or SMBJ12CA may present suitable fits; however, the engineer must closely scrutinize transient thermal impedance and peak pulse power handling. Even small variations in these aspects can manifest as increased device stress under worst-case fault events. For instance, a replacement with a marginally lower surge current rating may pass bench tests but fail prematurely during field surges, underscoring the necessity for a derating strategy when aligning replacements.
Reviewing the dynamic response, characteristics like maximum clamping voltage at rated current and response time under ESD strike form a second-layer selection filter. Some suppliers offer enhanced process control ensuring more consistent breakdown behaviors, minimized parameter drift over temperature, and tighter clamping ranges—attributes not always visible in basic datasheet comparisons. Inclusion of such devices improves not only system resilience but also long-term performance predictability.
Interoperability across different manufacturers requires particular attention to pad layout tolerances and moisture sensitivity—subtle mechanical mismatches can impose real-world assembly yield risks. Also, verification against relevant standards such as IEC 61000-4-2 (ESD immunity) and IEC 61000-4-5 (surge immunity) should not be bypassed, since qualified equivalents must demonstrate more than electrical similarity; system-level compliance is a non-negotiable requirement in professional design environments.
Real-world design cycles often benefit from dual-sourcing strategies. By cataloging a shortlist of functionally compatible TVS diodes, designs are buffered against supply interruptions and obsolescence. Experience shows that stress-testing shortlisted candidates on representative hardware under repeated, high-energy transient exposure highlights weaknesses that would not otherwise be apparent from nominal parameter comparison alone. In tightly regulated manufacturing contexts, second-source validation usually includes accelerated life testing to ensure no latent failure mechanisms are introduced.
The nuanced approach is to balance electrical and mechanical equivalency with ecosystem integration, recognizing that minor deviations in protection parameters can cascade into system-level vulnerabilities or operational inefficiencies. Effective engineering practice treats the SM712 not as an interchangeable commodity but as a system-critical node, where thoughtful selection and validation of replacements safeguard both immediate circuit functionality and long-term reliability.
Conclusion
The ANBON SEMICONDUCTOR SM712 TVS diode exemplifies robust transient voltage suppression within the constraints of a compact SOT-23 footprint, directly addressing the miniaturization and integration needs in contemporary electronic designs. This device leverages a finely engineered silicon avalanche structure, ensuring rapid clamping action upon exposure to ESD or other voltage transients, thus preserving downstream circuit components from irreversible damage. Notably, its low dynamic resistance minimizes voltage overshoot during surge events, a critical factor for sensitive interfaces in RS-485, CAN, and industrial control networks where signal integrity and uptime are paramount.
From an electrical engineering perspective, the SM712’s bidirectional configuration and matched breakdown voltages permit balanced protection across differential signal pairs, obviating common-mode interference and ground shifts frequently encountered in real-world deployments. The SOT-23 package not only economizes PCB real estate but also facilitates dense component placement, vital for highly integrated modules and retrofit scenarios in constrained environments. Quality certifications such as RoHS and lead-free status ensure global compliance, reducing certification hurdles for system integrators targeting international markets.
Careful evaluation of comparable TVS diodes reveals that the SM712’s leakage current and response times outperform typical alternatives, providing an extra safety margin in high-reliability applications such as medical instrumentation and industrial automation nodes. Maintaining tight process tolerances and comprehensive testing regimens, ANBON SEMICONDUCTOR supports consistent device behavior across production lots, which is essential for sustaining low field-failure rates where operational downtime incurs significant cost penalties.
Deployment experience indicates that incorporating the SM712 early in the design cycle—positioned as close as possible to interface connectors—not only enhances ESD resilience but also simplifies subsequent EMC validation. Engineers who specify this diode benefit from predictable protection characteristics and reduced post-deployment troubleshooting, as the device’s clamping behavior aligns closely with datasheet specifications under standardized surge conditions. This consistency supports rapid design iterations and accelerates time-to-market for new product platforms.
A nuanced evaluation of TVS selection reveals that, beyond datasheet figures, the interaction of layout parasitics, board absorption, and environmental de-rating must inform part choice. The SM712’s combination of compact geometry, symmetrical protection, and stringent process control addresses these factors effectively, especially when system longevity and maintainability are integral to project goals. By strategically leveraging this device’s strengths, circuit designers achieve both immediate protection and enduring system reliability within performance-critical domains.
