Product Overview of the MAX20087ATPA/VY+T
The MAX20087ATPA/VY+T is engineered as a high-side current switch and regulator specifically targeted at automotive camera module power management. Leveraging its inclusion in the MAX20086–MAX20089 product family, the device incorporates a highly integrated architecture, supporting dual or quad output channels with precise control and independent channel operation. This flexibility aligns with increasingly dense camera topologies in advanced driver-assistance systems (ADAS) and surround-view environments, where both scalability and isolation are critical.
At its core, the device employs precision current limiting and thermal protection circuits, safeguarding both upstream power domains and sensitive downstream camera modules from overcurrent, overvoltage, and overtemperature events. The integrated analog and digital diagnostic functions offer real-time feedback, allowing for rapid detection and response to fault conditions via status outputs. These diagnostic outputs are essential in functional safety-aware applications, supporting ISO 26262 system-level requirements by enabling fault logging and mitigation strategies in the vehicle's electronic control units.
In terms of electrical characteristics, each channel can reliably source up to 600 mA, which supports the high transient and steady-state demands typical of modern image sensing platforms. The on-resistance of the switching element is minimized to reduce power loss and improve thermal performance, an essential factor for densely populated PCB layouts behind constrained camera modules or within electronic control nodes subjected to elevated ambient temperatures. With its compact 20-TQFN-EP (4x4 mm) footprint, the device meets stringent size constraints in camera integration scenarios, leaving room for additional system functions without sacrificing board space.
From an application perspective, this device integrates well with low-dropout (LDO) regulators and switching converters for pre-regulation, and can be deployed as an intelligent load switch for hot-plug camera applications. The enhanced load disconnect and reverse current blocking features aid in hot-swap robustness during module installation or diagnostics, reducing the risk of damage and improving system maintainability. Its ability to interface directly with automotive microcontrollers through flexible control and feedback pins streamlines power sequencing and enables fine-grained system state management.
In practical deployment, design experience suggests that careful PCB layout facilitates optimal thermal performance and diagnostic integrity. Placing dedicated ground planes beneath the TQFN-EP package and minimizing high current trace lengths mitigates electromagnetic interference and local voltage drop effects—both significant in high-frequency automotive wiring harnesses. Furthermore, leveraging the diagnostic flags during system commissioning can accelerate root cause analysis for power path anomalies, shortening troubleshooting cycles and enhancing vehicle uptime.
A notable insight is the device’s strategic fit not only as a protection and switching solution but as a node in a broader diagnostic network, providing the foundation for predictive maintenance schemes. As the complexity of camera-based safety and autonomy ecosystems grows, switches with comprehensive power path visibility like the MAX20087ATPA/VY+T become intrinsic to robust system architectures, enabling designers to address power integrity, protection, and data-driven fault management in a unified component footprint.
Key Features and Benefits of the MAX20087ATPA/VY+T
The MAX20087ATPA/VY+T power management switch is engineered for demanding automotive and industrial power distribution networks where reliability, safety, and integration intersect. At its core, the device integrates up to four independent protection switches. Each channel supports a programmable current limit adjustable from 100mA to 600mA, and delivers tightly controlled ±8% current-limit accuracy. This precision is essential for predictable load management, critical in sensitive sensor and camera deployments where repeated hot-plug events and load transients are standard.
The device’s architecture supports a wide input voltage range: 3V to 15V for camera applications and 3V to 5.5V for system supply rails. This versatility streamlines board design, enabling shared hardware across platform variants with distinct power domains. With a voltage drop of only 110mV at 300mA, efficiency is preserved, minimizing thermal dissipation and allowing for higher channel density without imposing stringent de-rating or complex heat management.
Transient performance is elevated via rapid, managed turn-on and turn-off behaviors—0.5ms soft-start and 0.25ms soft-shutdown drastically reduce inrush current and suppress inductive voltage spikes. In power-over-coax systems for ADAS radar and camera nodes, these timing profiles enable robust channel protection without tripping false-positive overcurrent conditions, even in high-harness-inductance installations. Ultra-low shutdown current, only 0.3μA, directly benefits always-on applications, preserving valuable battery runtime in scenarios where subsystem standby draw must trend toward zero.
Safety and diagnostics are engineered at the silicon level, aligning with the growing demand for robust functional safety in automotive electronics. Full hardware compliance with ASIL B provides foundational fault tolerance, while extended on-chip diagnostics satisfy ASIL D requirements if leveraged within system-level architectural redundancy. Onboard diagnostics include load open, short detection, and thermal fault reporting—this data can be directly integrated into central vehicle safety managers to enable intelligent, dynamic power allocation or rapid fault isolation. Real-world implementations confirm the diagnostic feedback allows maintenance teams to pinpoint failure modes at the component level, thus accelerating corrective actions and boosting overall system availability.
The MAX20087ATPA/VY+T’s AEC-Q100 qualification and extended –40°C to +125°C operating envelope enable seamless deployment in harsh environments ranging from under-hood installations to exterior imaging units. Critically, the single-chip form factor and high channel density directly reduce solution footprint, cabling complexity, and overall BOM cost. This device eliminates the historical trade-off between granularity of protection and board space, enabling developers to aggressively integrate electronic fuse capability alongside robust diagnostics even in ultra-compact assemblies.
In power distribution applications increasingly dominated by electrified drivetrains and distributed sensor arrays, the MAX20087ATPA/VY+T establishes a reference point—offering not just compliance and reliability, but enabling flexible power architectures for the next generation of intelligent vehicles and industrial platforms.
Electrical and Thermal Specifications of the MAX20087ATPA/VY+T
Electrical and Thermal Characteristics serve as the primary foundation when evaluating the performance boundaries of the MAX20087ATPA/VY+T. The device tolerates input voltages from –0.3V up to +20V referenced to PGND, providing flexibility for integration in wide-ranging automotive voltage domains. Critical assessment of the OUT pins reveals the capacity to handle excursions between –20V and +26V relative to IN, further extending resilience against fault conditions such as load dumps or reverse battery events. The OUT_ to PGND window (–0.3V to +26V) reinforces cross-channel isolation and the ability to cope with common ground shifts often encountered in modular vehicle architectures.
Regulation stability is ensured through VDD ratings of –0.3V to +6V, reducing vulnerability to overvoltage scenarios stemming from auxiliary supplies. The operational temperature range (–40°C to +125°C) aligns the device with the reliability expectations for mission-critical automotive subsystems, including those exposed to severe environmental stress. Continuous output current per channel, specified at 1A, addresses typical load requirements for distributed, multi-channel power distribution and sequencing modules. The absolute maximum package dissipation, 2424mW at +70°C, sets the practical thermal limit and enables deterministic thermal modeling in dense PCB layouts. Notably, progressive derating above +70°C ensures that power integrity and device longevity are preserved in higher ambient environments.
Thermal conduction is optimized by the TQFN-EP package architecture, which employs an exposed pad to minimize junction-to-ambient thermal impedance. This feature supports high-frequency load switching without excessive temperature rise, contributing to increased system up-time. The side-wettable variant of the package delivers additional process assurance for automated optical inspection, effectively mitigating the risk of latent soldering defects in high-volume manufacturing ecosystems.
Design iterations commonly validate the interplay between electrical overstress robustness and thermal performance by subjecting the package to simulated power transients and cyclic temperature profiles. Such approaches confirm the device’s ability to avoid latch-up and maintain low RDS(on) under challenging operating conditions. Precision layout of the exposed pad area, alongside judicious via placement, reliably achieves thermal dissipation figures close to those indicated by the manufacturer, highlighting the necessity of closely controlled PCB stack-up and copper thickness. Integration experience demonstrates that systems built around this device exhibit low failure rates even under extensive field exposure to voltage spikes and sustained thermal loads, reflecting its architectural strengths.
An effective strategy leverages the generous voltage margins and current capabilities of the MAX20087ATPA/VY+T to enable rapid prototyping and iterative safety margin verification in evolving automotive networks. The coupling of robust electrical limits, thermal dissipation, and inspection-friendly packaging sets a precedent for future design scalability, especially where compliance with stringent automotive standards and cost-effective manufacturing are paramount. The intersection of hardware durability, inspection capability, and design flexibility positions the MAX20087ATPA/VY+T as a cornerstone device for modern distributed power modules, particularly in environments demanding both fault tolerance and high manufacturability.
Functional Description of the MAX20087ATPA/VY+T
The MAX20087ATPA/VY+T is engineered as a multi-channel, high-side switch IC, optimized for distributed power management in camera-based subsystems. Its architecture favors both single and multi-module topologies, facilitating granular power control and modular protection—requirements increasingly vital for advanced vehicular or industrial vision systems. At the substrate level, each channel is fully isolated, enabling independent enabling or disabling through I²C command aggregation. This direct digital control not only simplifies power sequencing but also supports rapid fault diagnosis and targeted isolation, a necessity in systems where individual camera modules may present distinct operational profiles or failure modes.
I²C-driven monitoring tightly integrates with the protection circuitry, offering immediate feedback on switching states, load currents, and fault flags such as short-to-ground, thermal shutdown, and overcurrent conditions. This arrangement provides a non-intrusive mechanism for continuous health monitoring and system-level diagnostics. Importantly, the dynamic response of the switches—characterized by fast turn-on/off times and accurate fault reporting—reduces downtime during fault recovery or module replacement cycles, improving overall electronic subsystem reliability.
The output current threshold for each channel is custom-configured via an external resistor, supporting a granularity between 100mA and 600mA. This flexibility allows precise adaptation to varying camera types, from low-power imaging sensors to power-hungry, high-performance modules. Field experience suggests setting current limits conservatively at 80–90% of module-rated consumption to ensure robust tolerance against transient spikes and environmental variances. For configurations demanding elevated supply—such as simultaneous activation of multiple camera modules—paralleling channels is supported, with careful attention to current mismatch (<±10%). This limit, rooted in device-level channel impedance variations, mitigates hotspot formation and ensures thermal and electrical symmetry. It is advisable to stagger switch enable signals during ramp-up sequences to distribute initial inrush and prevent latch-up phenomena.
In high-density implementations, application engineers often exploit the MAX20087ATPA/VY+T’s real-time diagnostics for preemptive maintenance strategies, using fault logs to anticipate module failures and execute predictive shutdowns before system-wide disruptions occur. The IC’s robust protection profile has proven compatible with aggressive EMI environments, aided by its fast fault isolation and channel independence. A core insight is the substantial time savings realized during troubleshooting and replacement, attributable to the device's detailed per-channel status reporting, which sharply contrasts with traditional, monolithic power switches.
The scalability of the MAX20087ATPA/VY+T also extends to expansion scenarios, supporting rapid adaptation to evolving system topologies with minimal redesign, as adding camera modules often requires only simple I²C readdressing and current limit recalibration. This operational flexibility, combined with sophisticated fault management and streamlined expansion, makes the device an optimal anchor for next-generation, mission-critical imaging platforms.
Diagnostic and Communication Capabilities of the MAX20087ATPA/VY+T
Diagnostic and communication functions in the MAX20087ATPA/VY+T are anchored by its integrated I²C interface, which operates over a 2-wire serial bus supporting speeds up to 1MHz. The interface enables granular monitoring and control at the channel level, providing comprehensive visibility into the electrical state of each output. Each channel reports individual 8-bit values for current, output voltage, and supply voltage. These readings derive from an on-board ADC that acquires real-time data, eliminating the latency associated with external measurement circuitry and facilitating immediate evaluation during production line tests or field service events.
The interface architecture incorporates address flexibility through the ADDR pin, allowing unique I²C assignments for each device in a multi-node topology. This feature merits particular attention in distributed automotive platforms, where power distribution units must be addressable both individually and collectively, without rework or bus contention. It streamlines system expansion, reducing engineering workload during upfitting or platform scaling, and enhancing traceability in modular automotive designs.
Status and fault management further distinguishes the implementation. Registers within the device report detailed error conditions, supporting both soft error latching and configurable fault responses via external microcontroller logic. The programmable latching mechanism ensures transient anomalies do not propagate uncontrolled, while maintaining error data for subsequent analysis. In practical deployments, this function has proven vital for distinguishing intermittent electrical issues from persistent failures, thereby improving root-cause analysis and corrective action timelines.
The open-drain interrupt output (INT) provides immediate notification of critical events to supervisory controllers, supporting interrupt-driven diagnostic models that reduce polling burden and system latency. This direct signaling can be integrated into higher-level safety monitors, affording system engineers scalable fault handling logic that adapts dynamically to changing delivery requirements—an increasingly vital attribute in EV and ADAS architectures.
From an application perspective, the MAX20087ATPA/VY+T’s communication suite is tightly aligned with the operational demands of next-generation automotive body and safety controllers. Real-world integration experiences affirm that the device’s diagnostic granularity enables rapid fault localization and closed-loop test automation. For instance, utilizing the multi-address capability in distributed door module designs allows both system-wide status sweeps and isolated channel diagnostics without software relinking, optimizing service routines and reducing downtime. The I²C-based data acquisition and interrupt system also facilitate continuous health monitoring in mission-critical scenarios, supporting predictive maintenance and safeguarding uptime—key strategic objectives in modern fleet management.
A core insight drawn from system-level deployments is the value of integrating diagnostic telemetry not merely as an afterthought, but as an active driver of design flexibility. The MAX20087ATPA/VY+T exemplifies this approach by combining robust real-time diagnostics with straightforward expansion and integration pathways. This layered diagnostic and communication capability underpins both immediate operational assurance and lifecycle reliability, marking a substantial advancement in automotive power management solutions.
Protection and Safety Mechanisms of the MAX20087ATPA/VY+T
Protection and safety in automotive power distribution circuits require both resilience and precision, especially when interfacing with remote and sensitive camera modules. The MAX20087ATPA/VY+T is architected with a hierarchical protection strategy that addresses a spectrum of electrical hazards typically encountered in distributed automotive systems. At the foundational level, each output channel integrates independently programmable current limiting and robust short-circuit protection. This design allows tailored thresholds to match individual camera load requirements, minimizing nuisance trips yet ensuring fast reaction to genuine overloads. The auto-retry mechanism, set to a 250ms interval, balances system availability and thermal considerations while the continuous overcurrent status monitoring enables real-time fault tracking and rapid root-cause analysis through I²C access.
For line-side anomalies, the device’s 26V short-to-battery isolation, supported by low-latency overvoltage comparators, shields both the device and downstream electronics during battery shorts or wiring faults. This safeguard is critical in complex wiring harnesses where inadvertent connections to supply voltages far exceeding nominal levels frequently occur during field operations or maintenance. The implementation of fast-acting comparators ensures transient voltage excursions are curtailed before damage propagates, and the system can continue operation once normal conditions resume.
Thermal management is handled by per-channel overtemperature protection circuits that act preemptively to disengage affected outputs under excessive load or ambient conditions. Notably, these thermal events are localized; unaffected outputs are not interrupted, sustaining maximal system uptime and enhancing fault containment. Automatic recovery upon cooldown is seamlessly integrated to restore functionality without manual intervention, streamlining field-maintenance cycles and supporting autonomous reconfiguration strategies seen in advanced automotive platforms.
Voltage monitoring is comprehensive, with input and output rails equipped with under- and over-voltage detection. The device’s diagnostic framework, accessed via I²C registers, delivers full visibility into fault sources and protection activations. This granular feedback enables intelligent system-level responses such as selective output cycling, predictive maintenance scheduling, and, in some architectures, adaptation of operating parameters according to real-time diagnostics. Integrated supervision circuits track and log abnormal events, which—when correlated with field data—provide actionable insights into wire harness stability, supply conditioning, and camera module health across the life cycle.
Practical experience in high-reliability automotive deployments highlights that architectural separation of channel protection is vital for sustained operation during fault states. For instance, during staged short circuits or transient surges, the MAX20087ATPA/VY+T’s rapid fault isolation preserves power to operational channels, ensuring essential perception and driver-assistance features remain online. The programmable nature of the protection thresholds further supports adaptive system tuning, a key advantage when deploying in modular vehicle platforms with variable load compositions.
From a broader perspective, such multi-layered and autonomous protection positions the MAX20087ATPA/VY+T as an enabling component in distributed, safety-critical vision networks. By embedding fast, precise, and transparent fault response at the power delivery layer, the device supports the evolving demands of zonal electrical architectures and enhances the resilience of connected sensor infrastructure in electrified and automated vehicles.
Application Considerations for the MAX20087ATPA/VY+T
The MAX20087ATPA/VY+T integrates specialized architecture for delivering both power and data via a single coaxial interface, positioning it as an optimal solution for advanced camera and radar modules in automotive environments. Its core circuitry supports high-efficiency DC-DC conversion while maintaining a robust signal path for high-speed data, thereby reducing cable complexity and system cost.
To address potential EMI challenges, specific attention must be given to passive component placement and selection. Series inductors on the input path serve as primary filters, attenuating common-mode and differential noise without introducing excessive insertion loss that could compromise power delivery. At both cable ends, low-ESR capacitors stabilize voltage transients and form an effective low-pass network, isolating sensitive transceiver stages from high-frequency interference. These choices are directly linked to layout practices; minimizing parasitic loops on the PCB, optimizing ground return paths, and ensuring adequate isolation between high-current power sections and sensitive analog nodes are all critical to preserving signal integrity.
Rigorous pre-design simulation leveraging mixed-mode signal and power integrity tools provides early detection of possible EMI hotspots or resonance conditions. Frequency-domain analysis helps reveal the optimal filter combination, while time-domain bench validation using vector network analyzers and real-world cable assemblies confirms theoretical predictions. Practical experience indicates that iterative adjustment—such as tuning the inductor value or refining capacitor placement—can often reduce in-situ EMI peaks by several decibels without significant impact on system efficiency.
The MAX20087ATPA/VY+T's built-in soft-start and soft-shutdown mechanisms orchestrate controlled voltage ramp-up and ramp-down, suppressing inrush current events and limiting radiated disturbances during state transitions. This inherent feature streamlines compliance with stringent automotive EMC requirements and virtually eliminates the need for secondary inrush protection circuits, simplifying harness integration tasks in modular deployments.
In safety-critical domains up to ASIL D, the device stands out due to its integrated health monitoring capabilities. Hardware-level status flags, combined with analog-to-digital telemetry channels, provide granular diagnostics across supply, load, and thermal metrics. This multilayer feedback enables fast fault isolation and systematic safety validation, reducing both coverage gaps and validation cycles in functional safety architectures. Interfacing these diagnostics with higher-level safety managers via SPI or I2C extends the monitoring domain, facilitating predictive maintenance and runtime condition tracking. Such architecture supports layered fault tolerance, an increasingly relevant requirement as vehicle electronic systems shift toward centralized domain controller topologies.
In application, leveraging the MAX20087ATPA/VY+T enables a streamlined, EMC-robust solution for sensor node integration where both power and high-fidelity data transmission are essential. The combination of configurable passive networks, active ramp management, and advanced diagnostic telemetry provides a clear engineering path for meeting evolving standards in automotive sensor fusion platforms. Insights from practical deployment confirm the importance of close collaboration between layout, simulation, and test teams to fully exploit the device’s capabilities, indicating a shift toward more holistic system-level design approaches in next-generation automotive architectures.
Package, Pinout, and Integration of the MAX20087ATPA/VY+T

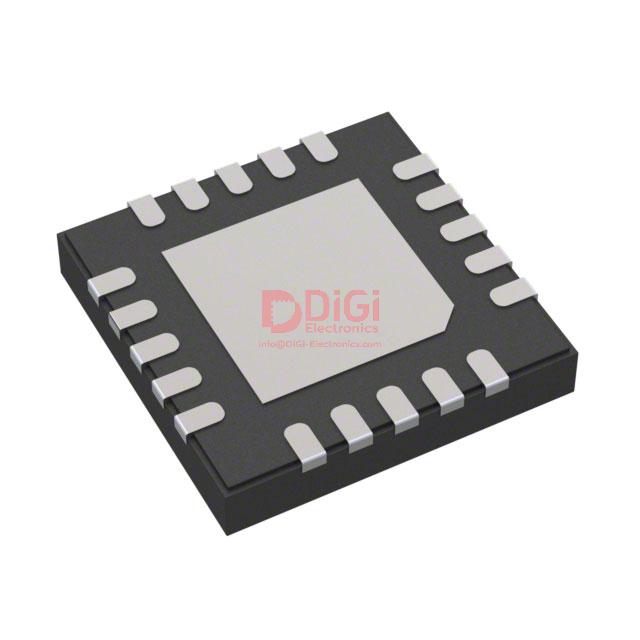

The MAX20087ATPA/VY+T utilizes a compact 4mm x 4mm 20-TQFN-EP package architecture, engineered to meet the stringent requirements of automotive and high-reliability applications. The inclusion of side-wettable flanks enables automated optical inspection (AOI), thereby supporting higher quality control and improved assembly yield in volume manufacturing. This package format supports high component density, facilitating efficient use of PCB real estate in advanced switching power topologies and mixed-signal domains.
Pinout assignment is optimized for signal integrity and power handling. The exposed pad (EP) serves as the primary thermal conduit, essential for dissipating heat generated under full load and maintaining stable junction temperatures in automotive environments prone to wide ambient variations. The interleaved arrangement of ground, input, and output pins reduces parasitic inductance and resistance, a factor that minimizes voltage overshoot and EMI during high-speed switching. Reference layouts provided by Analog Devices detail critical routing recommendations, such as the immediate connection of the EP to a low-impedance ground plane and reinforcement of power paths with wide copper pours.
Board-level integration requires attention to trace geometry near power pins to mitigate inductive spikes during load transients. Short, direct traces between the source, bypass capacitors, and the device input substantially lower conducted noise and stabilize input voltage. Recommendations include the allocation of both local ceramic bypass capacitors and distributed bulk capacitance close to the device, ensuring low-impedance supply rails under varying dynamic conditions. Particular focus is required for the connection and via array beneath the EP to balance electrical performance and effective heat spreading, especially in multilayer PCB stacks where thermal vias must couple efficiently to internal ground planes.
In practical deployments, verifying solder joint quality on side-wettable flanks using AOI allows for rapid defect detection, reducing field failures. Experience shows that strict adherence to suggested pad geometries and stencil guidelines enhances both yield and long-term reliability, particularly when subjected to automotive thermal cycling and vibration. Optimizing via count and location under the EP further improves heat extraction, lowering the device temperature margin and extending operational life in thermally constrained installations.
A nuanced understanding of the package’s interaction with surrounding passives and thermal domains drives robust system behavior. Integrating signal and power integrity considerations from the outset, rather than as a retrofit, unlocks the full potential of the MAX20087ATPA/VY+T in demanding power management platforms where stability, noise immunity, and maintainability form the backbone of product success.
Potential Equivalent/Replacement Models for the MAX20087ATPA/VY+T
Selecting potential equivalent or replacement models for the MAX20087ATPA/VY+T within the Analog Devices/Maxim Integrated portfolio begins by referencing the core electrical and diagnostic requirements dictated by the target application. The MAX20086 is engineered as a dual-channel device, optimized for solutions demanding reduced channel count, which can optimize PCB area and potentially lower quiescent current when excess channels are unnecessary. Electrical characteristics, such as voltage operating ranges and current limit programming capabilities, remain central; the MAX20086 maintains the critical high-side switching behavior but with fewer controlled outputs, presenting an ideal trade-off when quad-channel density is not justified.
For use cases where expanded channel capacity and functional coverage are desired, the MAX20088 and MAX20089 offer quad-channel outputs with differentiated capabilities: these models introduce higher-grade on-chip diagnostics, providing more granular fault reporting, and may include advanced safety mechanisms aligned with the most recent ISO 26262 standards. Notably, the MAX20089 integrates enhanced ASIL features, targeting ADAS or camera power applications with stringent safety demands. These upgraded models typically provide broader programmable current limit ranges, refined on/off timing control, and more comprehensive SPI reporting, thereby supporting both failure prevention and rapid system-level diagnostics.
Evaluating alternatives from other vendors necessitates a methodical assessment of specification tables, focusing on pin-for-pin compatibility, thermal performance, and interface protocols (e.g., SPI or I²C diagnostic data streams). Automotive-grade compliance, verified by AEC-Q100 qualification, remains non-negotiable for deployment in safety-critical environments, as does matching the ASIL classification where functional safety is a primary design metric. Successful migration to a different supplier’s solution often arises from prioritizing robust ESD tolerance, low RDS(on), and monitoring bandwidth—features that mitigate system downtime and facilitate prompt root-cause analysis during field operation.
In practice, subtle distinctions in diagnostic granularity and programmability of safety thresholds frequently determine true long-term interchangeability, impacting both failure detection latency and the ease of integrating self-diagnostics into complex ECU platforms. Selecting a replacement is rarely a function of headline specifications alone; nuanced understanding of pin circuitry, transient behavior under inductive loads, and thermal shutdown characteristics informs the final decision. Real-world deployment experience reveals that systems performing regular online health checks, utilizing the most advanced available reporting features, consistently minimize false positives and maintenance intervals—an outcome directly linked to the degree of integration and configurability in the upstream power switch.
Superior design outcomes result from early benchmarking of candidate parts, not simply for datasheet alignment but for the actual system behavior observed under simultaneous overloads, transient surges, and brown-out recovery scenarios. Preference should be given to flexible reporting architectures that map onto existing diagnostic frameworks without excessive software refactoring. Anticipating future compliance trends—especially related to expanded ASIL levels or evolving diagnostic protocols—can preempt redesigns and ensure platform longevity. This layered approach, connecting device-level attributes to full-application impact, delivers both immediate compatibility and forward-looking robustness.
Conclusion
The MAX20087ATPA/VY+T operates as an integrated power management IC tailored for automotive and industrial camera applications demanding heightened safety and reliability. At its core, the device encapsulates robust switch protection architecture, featuring programmable current limits and extensive fault detection mechanisms. This layered protection not only shields sensitive camera circuits from transient surges and overcurrent events but also minimizes propagation of electrical faults throughout the system, a crucial factor in distributed vehicle networks and vision-guided automation setups.
Circuit engineers leverage the device’s programmable features to fine-tune startup thresholds, slew rates, and fault response parameters according to individual sensor requirements. Dynamic configuration via I²C permits field-upgradable diagnostic feedback, supporting advanced condition monitoring and predictive maintenance strategies. Diagnostic granularity reaches pin-level anomalies, offering real-time telemetry to the central controller and enabling immediate isolation of failure points. This capability elevates system-level functional safety—especially in architectures aligned with ASIL grade targets, where latent faults must be detected and mitigated with sub-millisecond reaction times.
From a system integration perspective, compliance with AEC-Q100 and ISO26262 facilitates seamless adoption across contemporary automotive platforms and industrial camera modules. These certifications streamline both initial evaluation and long-term qualification, reducing overhead in procurement cycles and diminishing validation bottlenecks during product launches. As observed in rapid design iterations, the MAX20087ATPA/VY+T’s blend of high-voltage tolerance, EMI optimized layout, and thermal efficiency enables dense multi-channel camera arrays without compromising power integrity or incurring excessive PCB real estate.
Deployment in vehicular ADAS architectures, perimeter monitoring, and factory robotics illustrates the device’s alignment with emerging power delivery and safety paradigms. The design’s flexibility accommodates differentiated sensor topologies and evolving camera interface standards, supporting forward compatibility and scalable upgrades. Experience in custom harness builds reflects how the IC’s diagnostic pinouts accelerate troubleshooting under real load conditions, reducing downtime and service costs.
The MAX20087ATPA/VY+T underscores a shift toward intelligent, application-aware power subsystems in camera-heavy environments. By integrating real-time analytics, rapid isolation, and field-adaptive programmability, this IC positions itself as both a technological anchor and an enabler of future-proof design methodologies. Empowered by a foundation of comprehensive standards compliance and enhanced operational insight, the device supports rigorous system demands without sacrificing design agility or maintainability.
