Time-delay relays help control when a circuit turns on, turns off, or changes state. Unlike a standard relay, they add a set delay that helps electrical systems operate in the right order. This article explains how time-delay relays work, their main modes, types, ratings, wiring steps, common uses, selection points, and basic checks.
Timed Switching in Control Circuits
A time-delay relay is a control relay that changes its contact state after a set time has elapsed. Unlike a standard relay, which switches immediately when power is applied or removed, a time-delay relay adds a programmed delay before the output changes.
This timing function helps a circuit operate in a controlled sequence. It can delay startup, keep a circuit active for a short time after power is removed, or control how long a load stays on.
Because of this, time-delay relays are used in many electrical systems that require actions to occur at the right time and in the correct order.

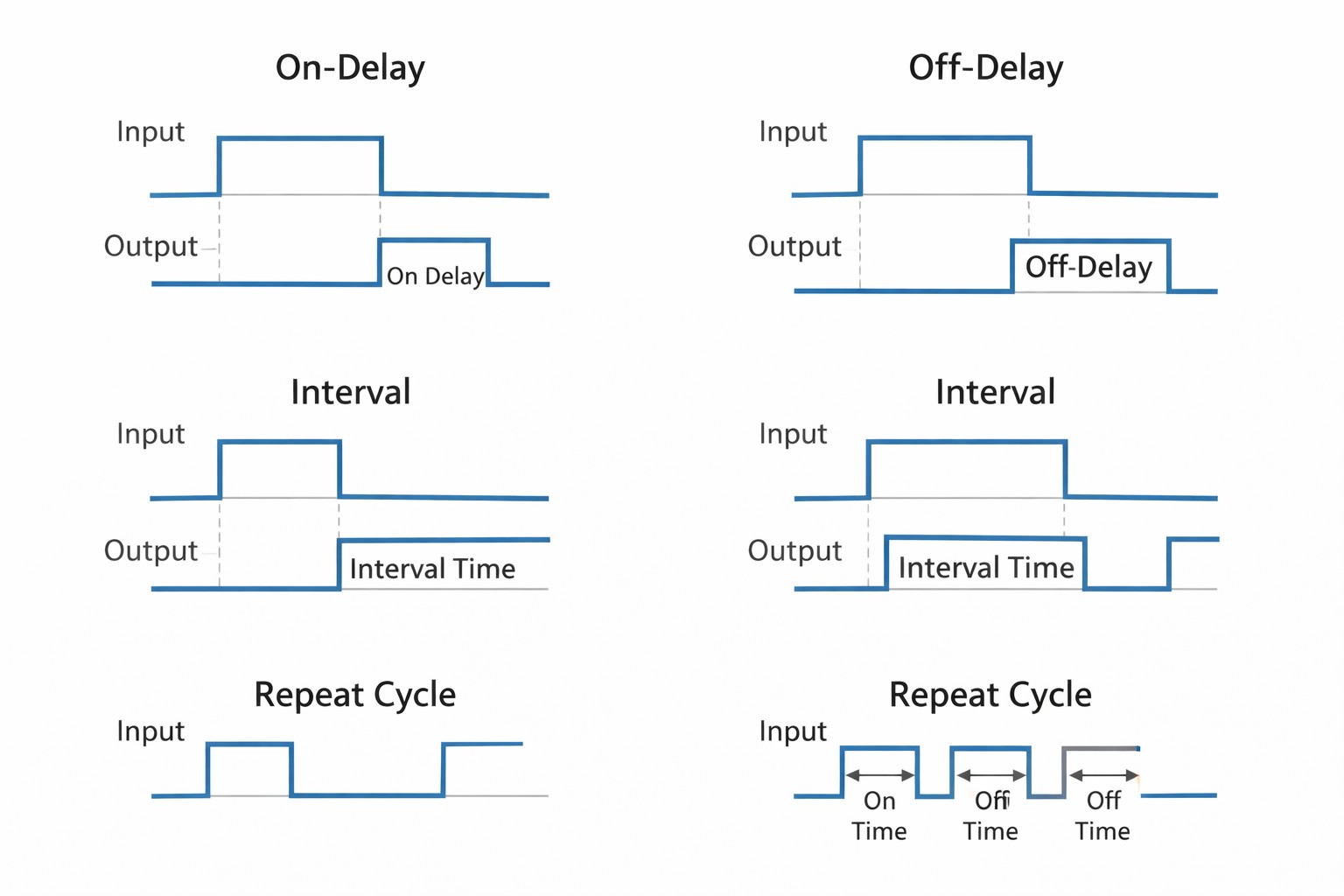

Main Time Delay Relay Modes
A time-delay relay responds to a trigger and changes its output according to a selected timing mode. The trigger may come from coil energization, power being applied, or a separate control signal, depending on the relay design.
In on-delay mode, the relay waits for the set time before the output changes. In off-delay mode, the output changes right away when the input is applied, then returns to its normal state only after a timed delay when the input is removed.
In interval timing mode, the output turns on as soon as it is triggered, stays on for the set time, and then turns off. Some time-delay relays also include additional functions, such as repeat cycle, flicker, and one-shot timing, which control output changes in set time patterns.

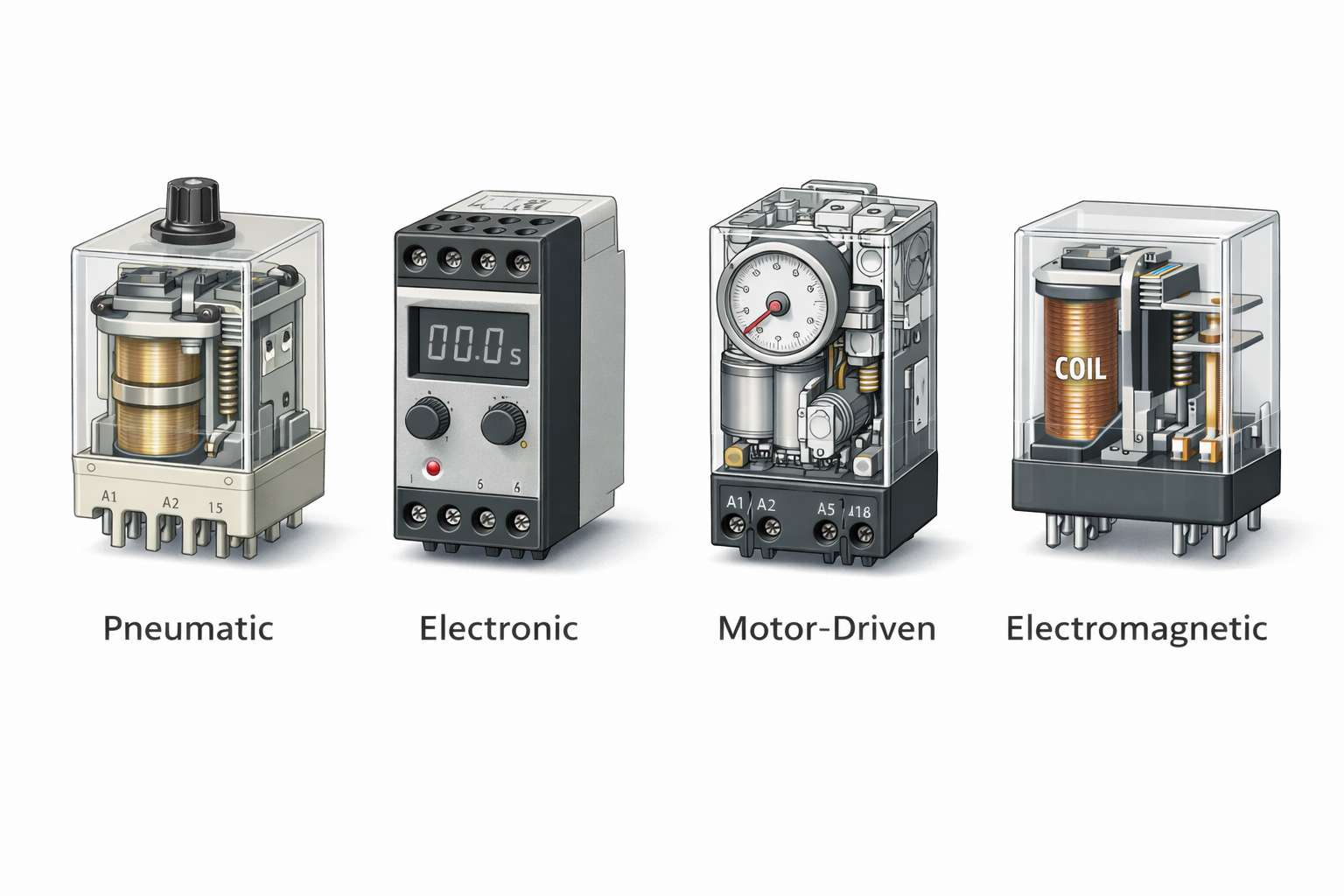

Types of Time Delay Relays
Pneumatic Time Delay Relay
A pneumatic time delay relay uses air damping to slow mechanical movement. It has a simple structure and can be adjusted, but it is larger and less accurate than newer electronic types.
Electronic or Digital Time Delay Relay
An electronic or digital time delay relay uses electronic timing circuits to control the delay. This type is common because it offers better accuracy, a wider timing range, a smaller size, and often several timing modes in one unit.
Motor-Driven Time Delay Relay
A motor-driven time-delay relay creates delay via a small motor and gear system. It can provide long-term performance, but it has more moving parts and is often bulkier than other types.
Electromagnetic Time Delay Relay
An electromagnetic time-delay relay creates a delay by slowly releasing magnetic flux. It is used for short-delay functions and has a more limited range of applications.
How to Wire a Time Delay Relay
A time delay relay is usually wired through two parts: the control power terminals and the output contacts. In most relays, A1 and A2 are used for the control supply, COM is the common terminal, NO is the normally open contact, and NC is the normally closed contact.
Basic wiring path
• Power: Supply → A1/A2
• Output: Load → COM-NO or COM-NC
In an ON-delay circuit, the relay starts timing when power is applied to A1 and A2. The load is commonly wired through COM and NO, so the output turns on only after the set delay.
• Typical ON-delay wiring: Supply → A1/A2, Load → COM-NO
In an OFF-delay circuit, the output is active first and remains active for a set time after the control signal is removed. The load is usually wired through COM-NO or COM-NC, depending on the required output behavior.
• Typical OFF-delay wiring: Supply → A1/A2, Load → COM-NO or COM-NC
Before wiring, confirm the relay’s rated control voltage, timing mode, and whether the load should use the normally open or normally closed contact.
Common Uses of Time Delay Relays
• Motor starting sequences
• Fan overrun circuits
• Pump restart delay
• Lighting control
• Heating and ventilation control
• Conveyor and machine sequencing
• General automation panels
Choosing the Right Time Delay Relay
Define the Timing Function
First, determine what the relay needs to do. It may need to delay turn-on, delay turn-off, hold the output for a set period, or repeat a timed cycle.
Match the Supply
Choose a relay with the correct control voltage and compatible electrical characteristics. This helps the relay operate as intended.
Match the Load
Check the contact rating, the number of contacts, and the type of load connected to the relay. These details determine whether the relay can properly switch the circuit.
Match the Timing Range
Select a relay with an adjustable timing range that covers the required delay without being overly restrictive.
Check Installation Details
Confirm the socket type, panel fit, mounting method, and terminal arrangement. These details affect how easily the relay can be installed and connected.
Consider the Required Features
A single-function relay is suitable when only one timing job is needed. A multifunction digital relay is better when more timing modes or greater adjustment flexibility are required.
Common Problems and Relay Checks
| Problem | Likely Cause | Check |
|---|---|---|
| Relay does not operate | Wrong supply voltage or wiring error | Check control voltage and terminal layout |
| Output switches at the wrong time | Wrong timing mode selected | Recheck the on-delay, off-delay, or interval setting |
| Load does not energize | Wrong contact used | Verify the common, NO, and NC connections |
| Relay works but load fails later | Contact rating too low | Check the actual load current and inrush condition |
| Timing seems inconsistent | Incorrect adjustment or unsuitable timer type | Recheck the time range and operating conditions |
Conclusion
Time-delay relays are required control devices for circuits that need delayed or timed switching. Their value depends on choosing the right timing mode, matching the supply and load, and carefully checking wiring and contact details. With a clear understanding of relay types, settings, uses, and common problems, the article provides an overview of how these relays are applied and tested in circuits.
Frequently Asked Questions [FAQ]
What is a time-delay relay compared to a timer module?
A time-delay relay times and switches. A timer module only times and may need a separate switching device.
Can a time-delay relay run on AC and DC?
Some can. Many cannot. The supply must match the relay rating.
Why does a time-delay relay have extra terminals?
They are used for functions such as power input, trigger input, reset, or timing control.
What changes the timing accuracy?
Relay type, supply stability, temperature, component quality, and setting range all affect accuracy.
Does a time-delay relay always switch the load itself?
No. It may only control another device, such as a contactor or another relay.
When is a multifunction time-delay relay better?
It is better when a single relay handles different timing modes or broader adjustment needs.
